Upload an ISO or RAW Disk Image to an SvHCI Node

This article is intended for administrators wishing to upload a guest operating system installer ISO or a converted RAW disk (.img) file to an SvHCI node.

Audience: Administrators Product: SvHCI Topic: Disk Images Includes: ISO & RAW Uploads

Note: All images are clickable for enlarging or can be opened in a new browser tab.

Resolution / Information

Scenario

This document details how to upload an ISO image into SvHCI using the web interface.

A converted VMDK or VHD can also be uploaded as a RAW (.img) disk image.

Reference:
VM Disk (VMDK / VHD) Copy, Conversion and Import from VMware to SvHCI

Video Resource

The following video demonstrates a complete end-to-end deployment.

↑ Back to top

Upload an ISO or RAW Disk Image

Browse to the SvHCI node management IP address or hostname and select Virtual Machine from the navigation menu.

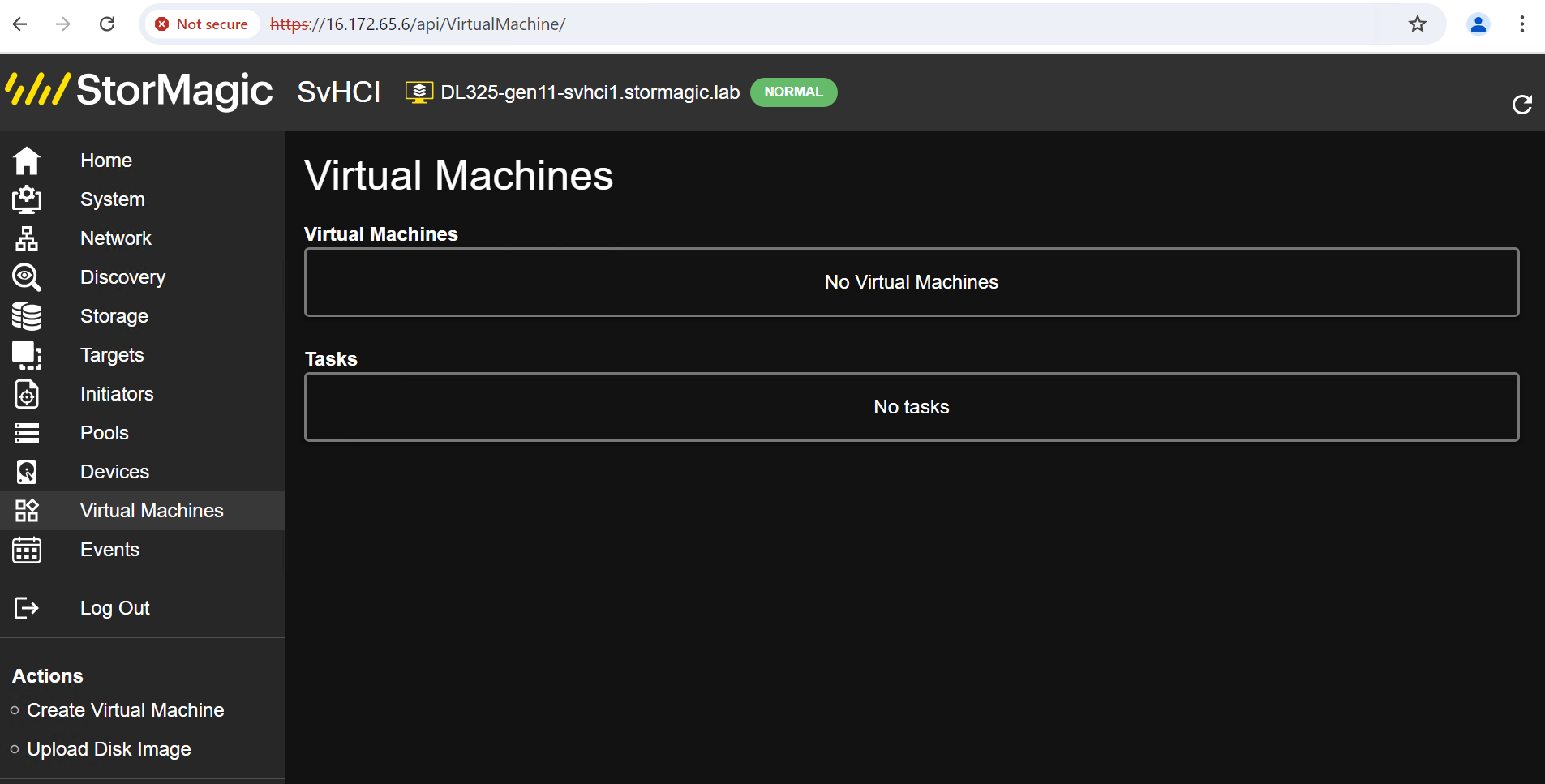

Select Virtual Machine.

Select Upload Disk Image.

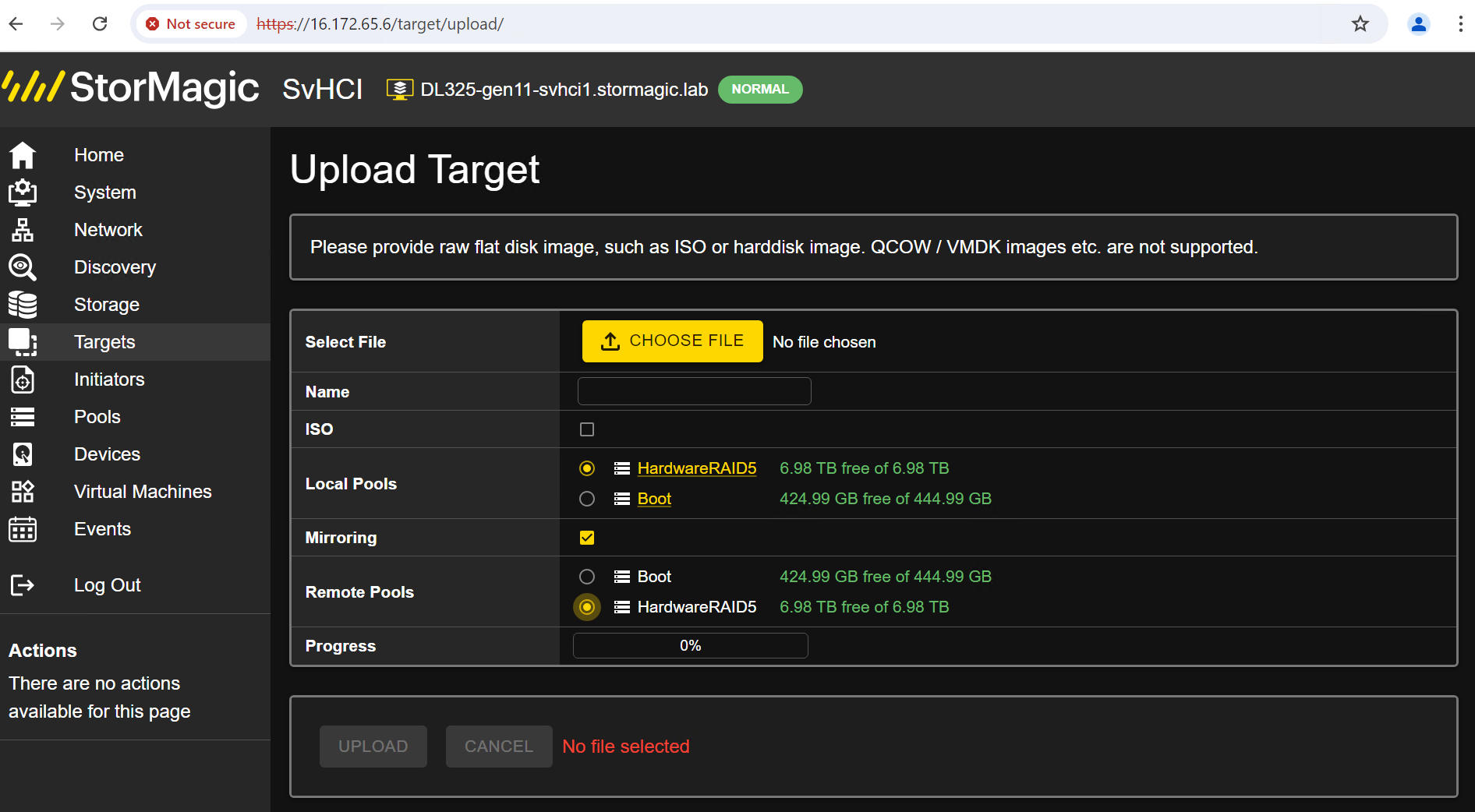

Upload Disk Image.

Select Choose File and browse to the ISO or RAW disk image that you wish to upload.

Ensure the correct storage pool is selected on the appropriate node.

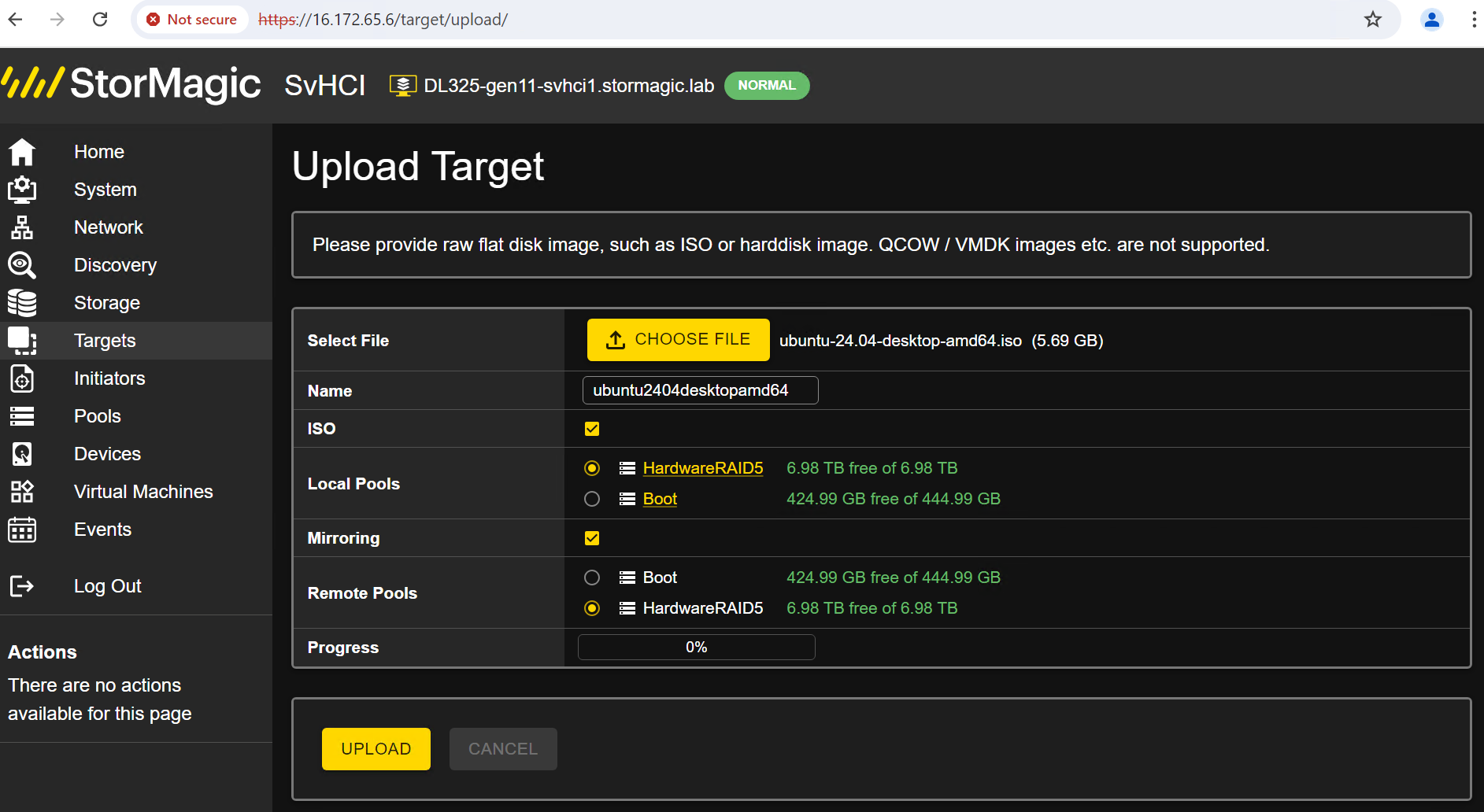

Choose the image file and storage pool.

Select Upload and monitor the upload progress.

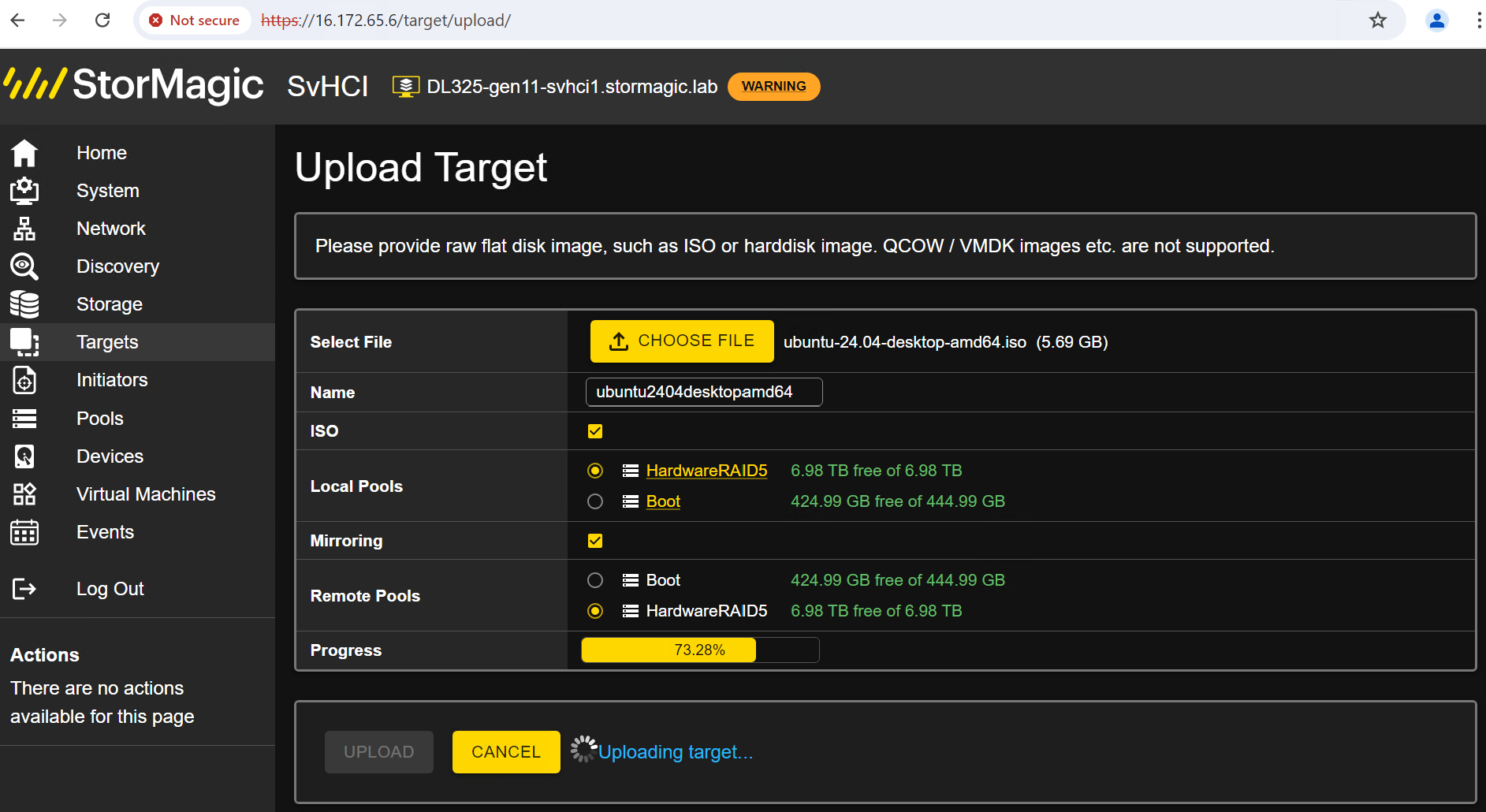

Uploading the disk image.

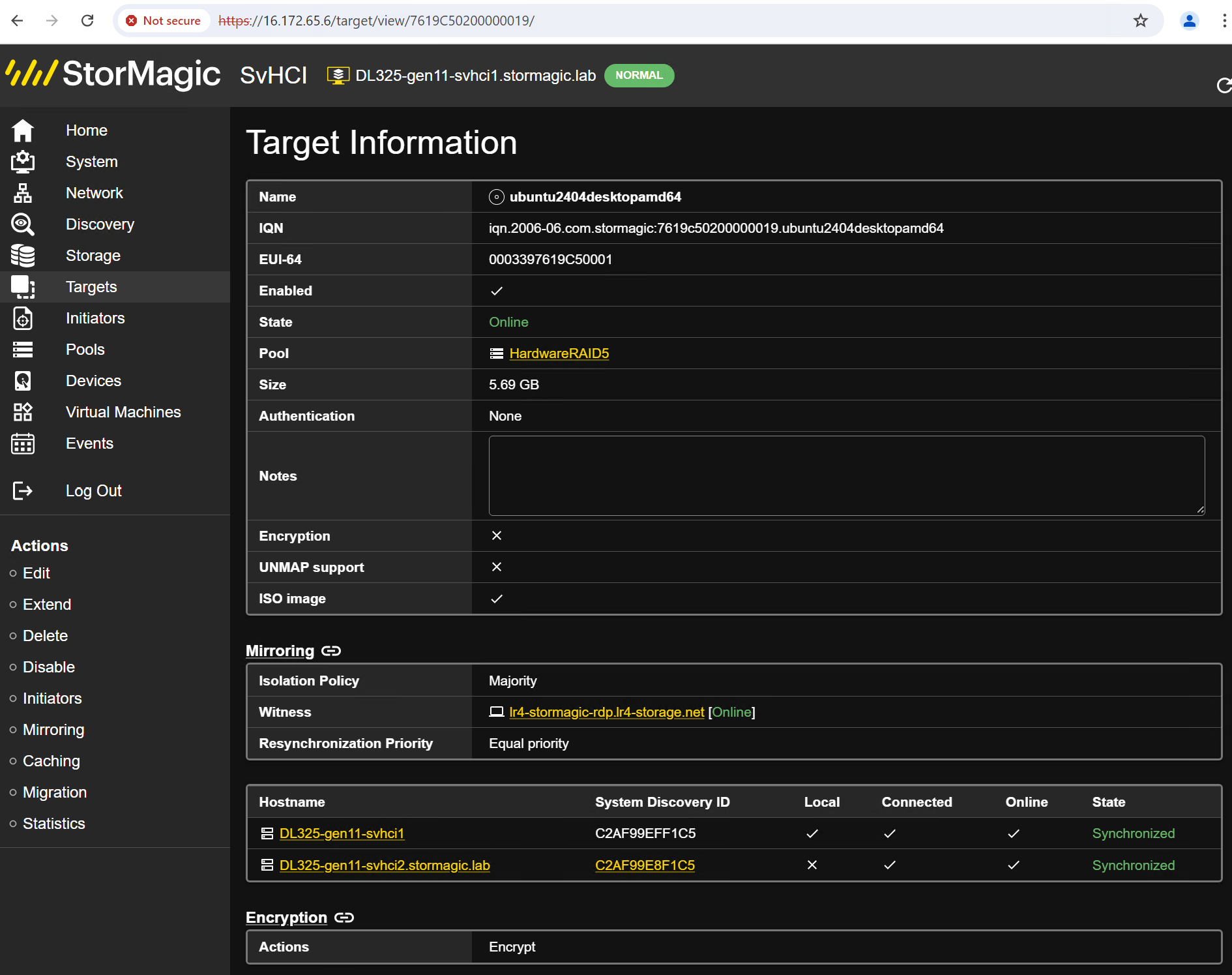

Once the upload has completed, browse to another page and attach the uploaded ISO image to the required virtual machine.

Attach the uploaded ISO to a virtual machine.
