This article is intended for administrators wishing to configure a StorMagic SvHCI node after the initial installation by completing the First Boot Wizard.
Complete the SvHCI First Boot Wizard
Configure a newly installed SvHCI node by completing the initial setup wizard, including licensing, hostname configuration and administrator password creation.
Scenario
This document details the configuration of a StorMagic SvHCI node after the initial installation and first boot, including node licensing, hostname configuration and administrator password setup.
Video Walkthrough
The following video demonstrates a complete end-to-end SvHCI deployment.
Log In and Start the Wizard
Log in using the default credentials:
- Username: admin
- Password: password

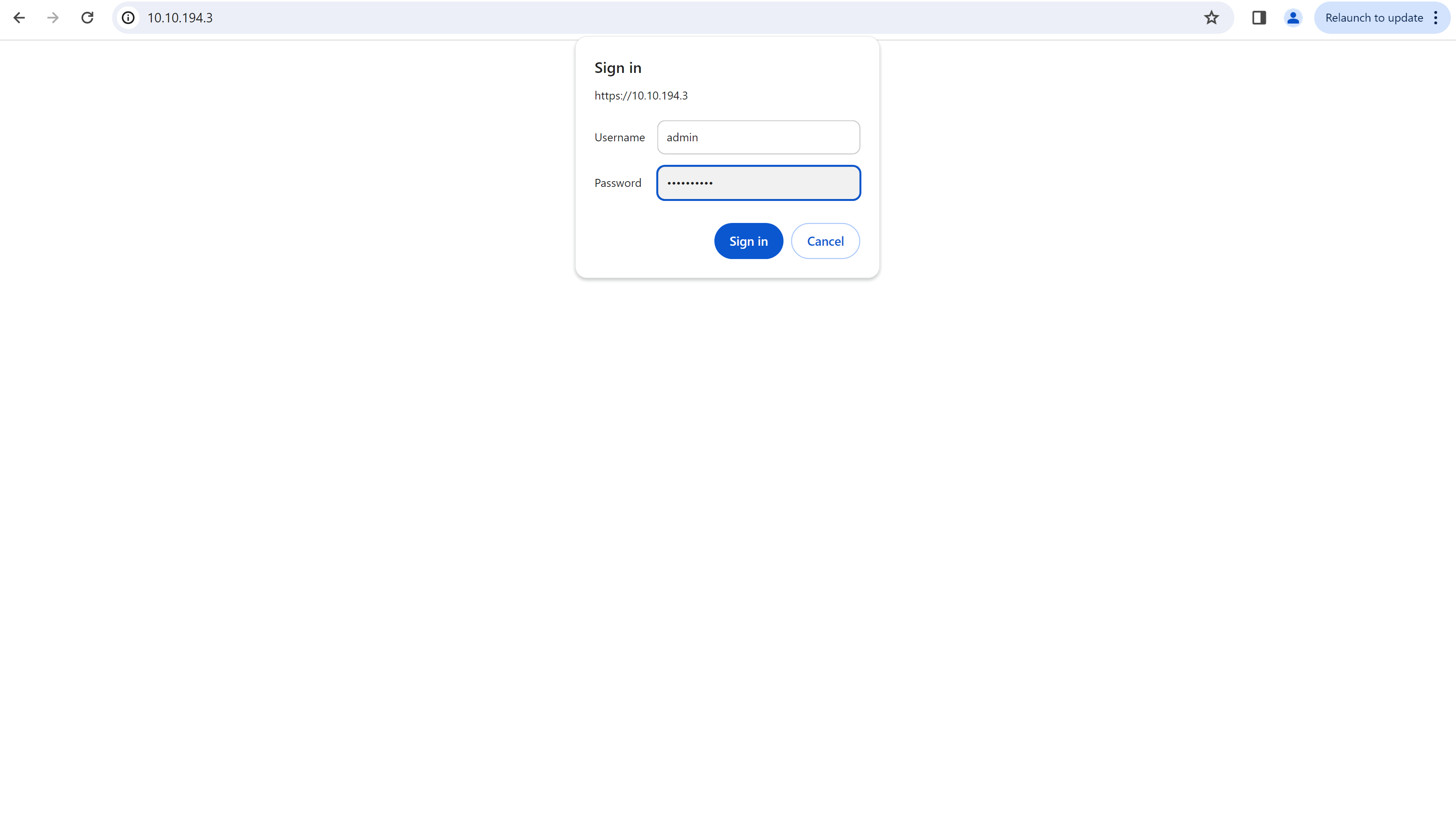

Default login screen
Accept the End User License Agreement to continue.

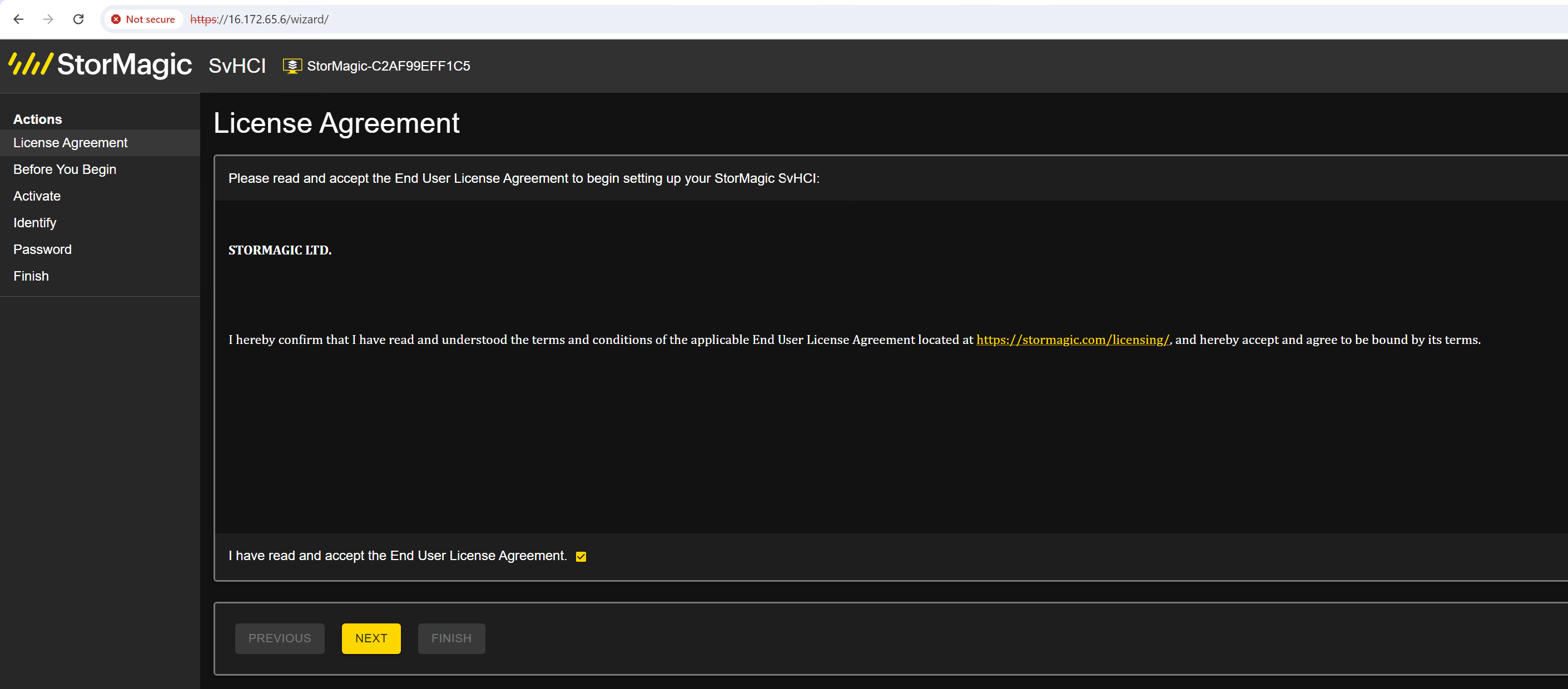

Accept the license agreement
The First Boot Wizard introduction page is then displayed. Select Next to begin the configuration process.

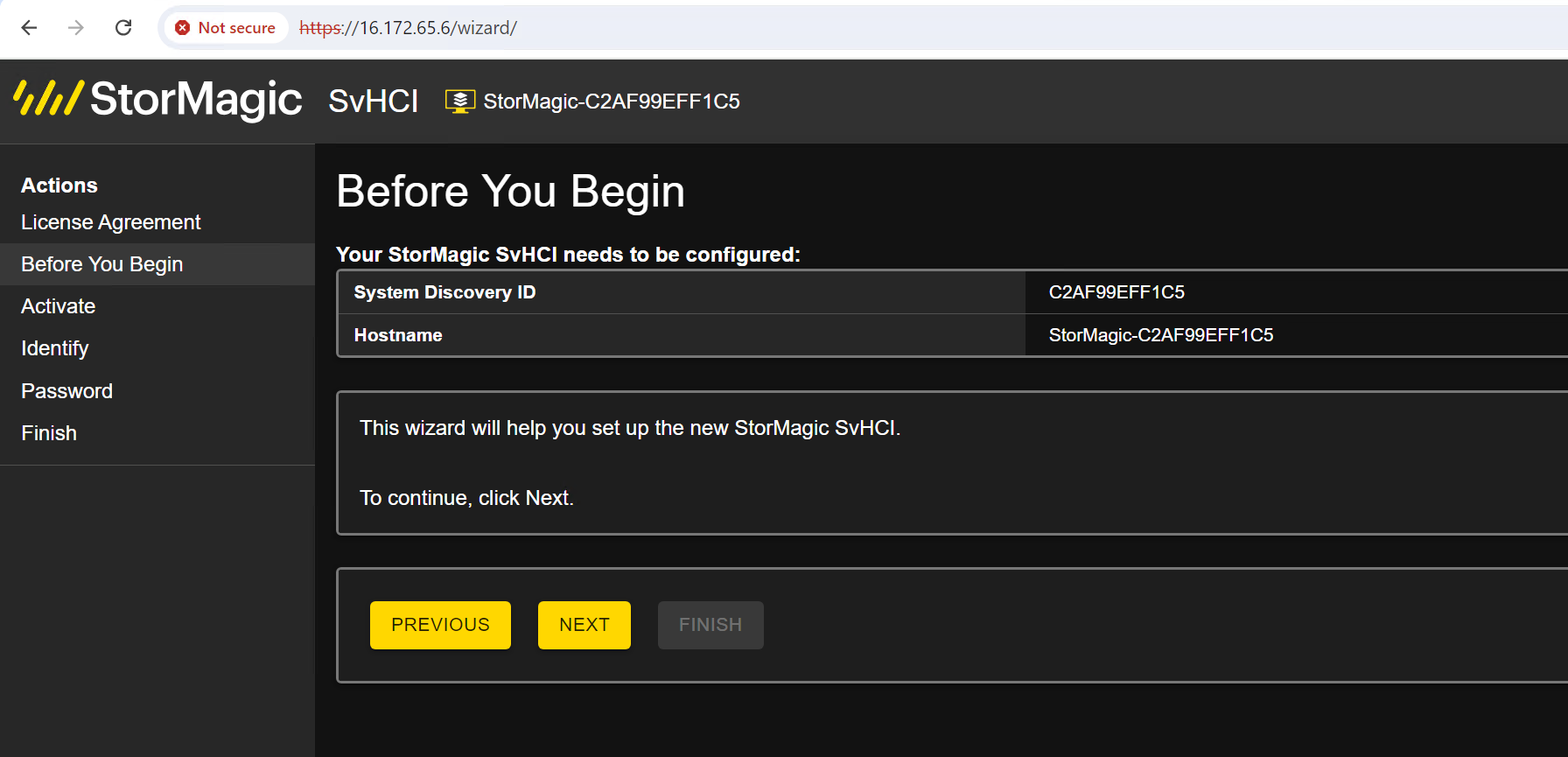

First Boot Wizard
License the Node
The next stage of the First Boot Wizard is to license the SvHCI node.

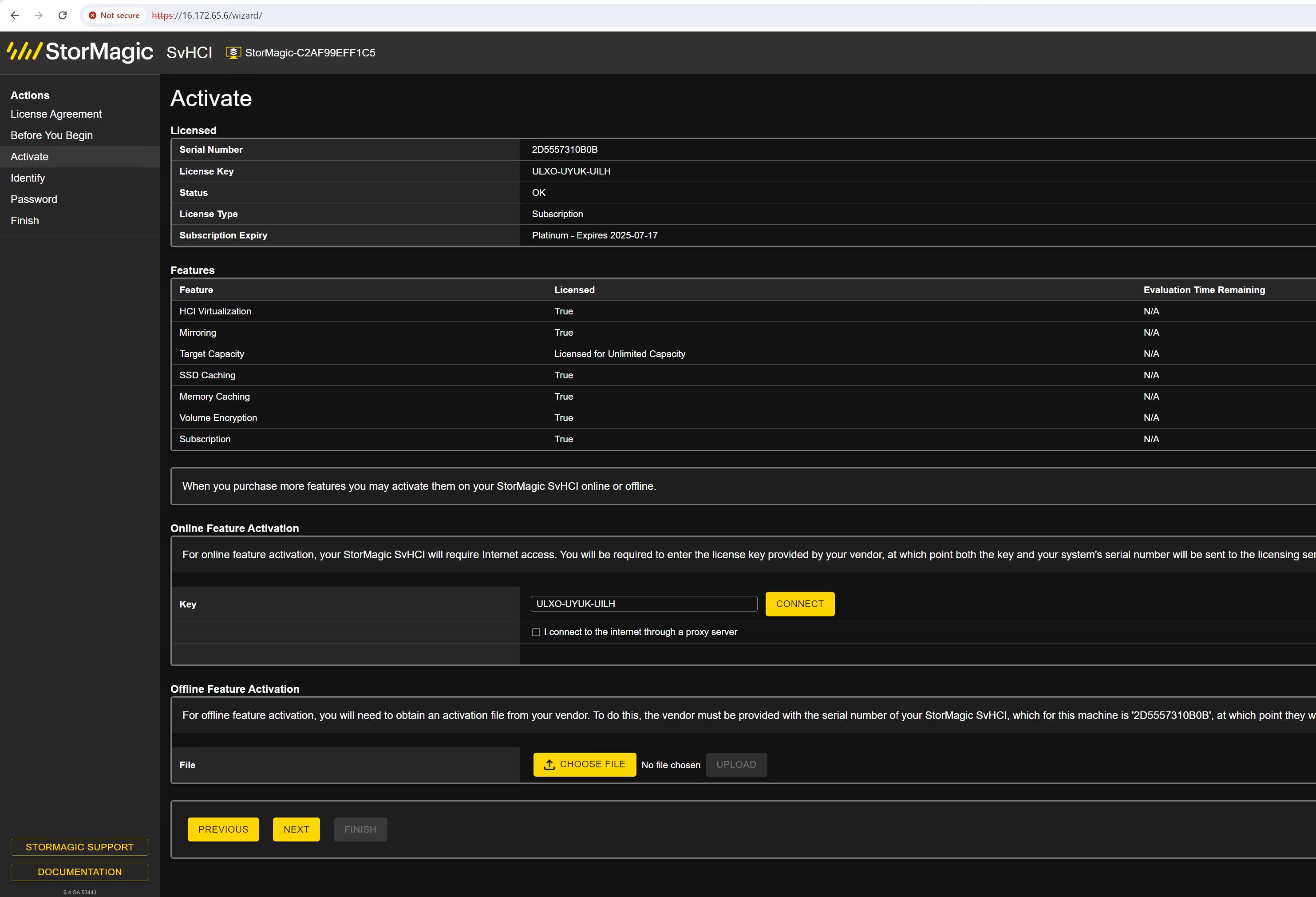

Node licensing
Online licensing requires outbound Internet access with DNS resolution to:
https://licensing.stormagic.com
Paste the supplied license key and select Connect to activate the node.
If Internet connectivity is unavailable, offline licensing may be used instead.
SvSAN / SvHCI Online and Offline Licensing
Select Choose File and upload the downloaded offline license file.
Offline licensing
Configure the Hostname
Enter the hostname that will be assigned to the SvHCI node.

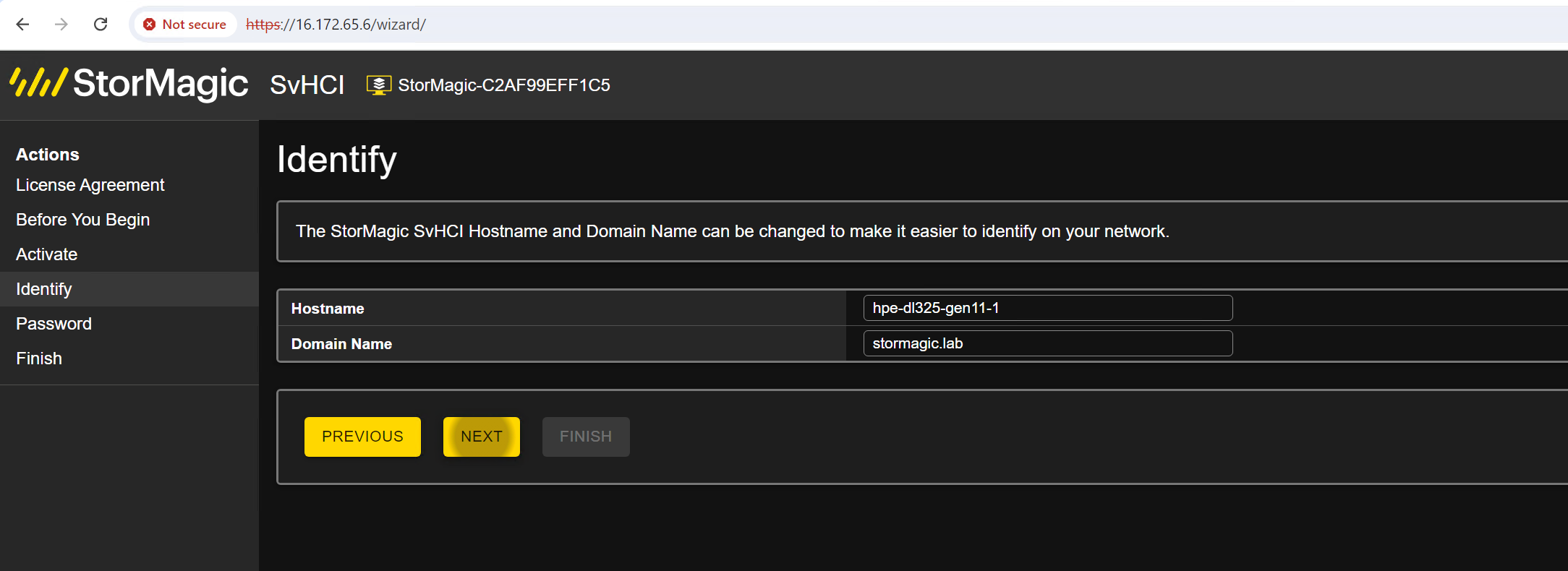

Configure the node hostname
Create the Administrator Password
Specify a new administrator password for the SvHCI node.

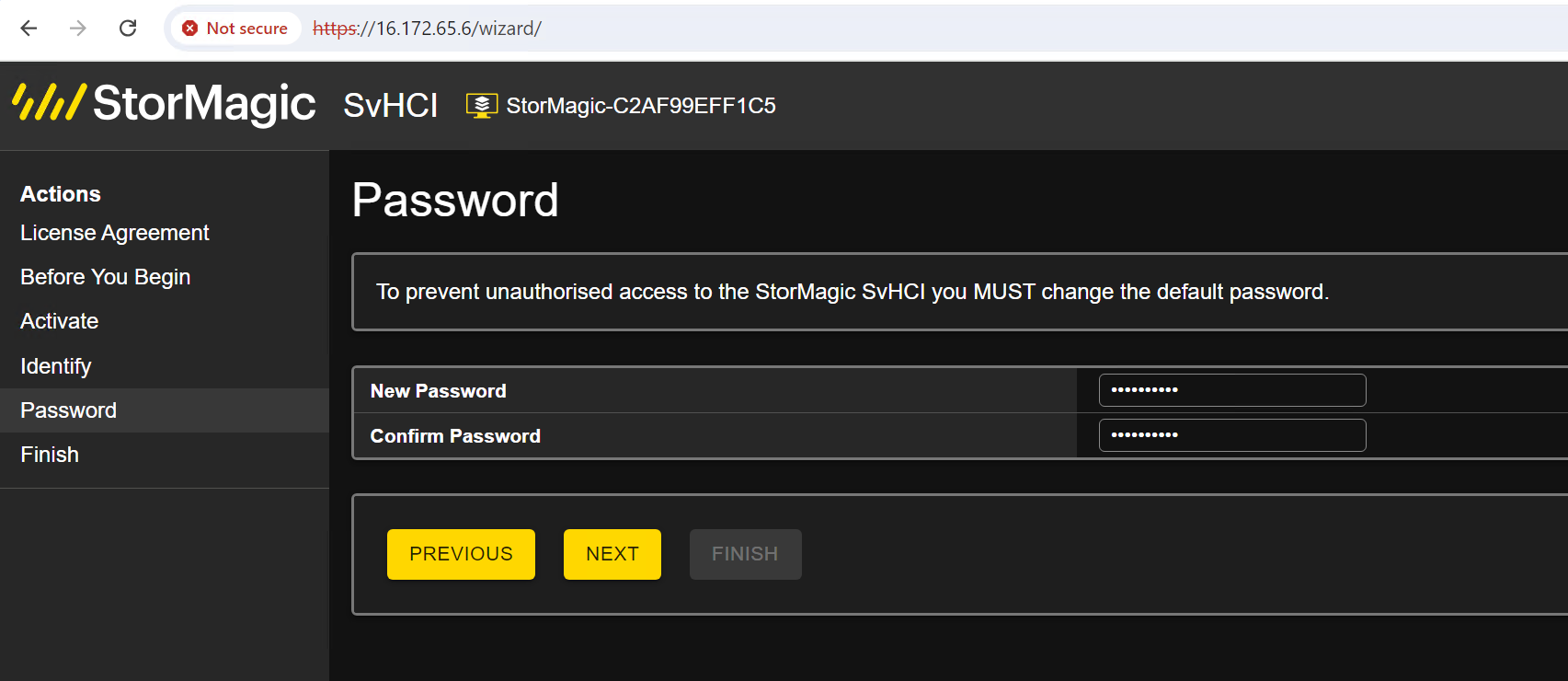

Create the administrator password
After completing all required fields, finish the First Boot Wizard.

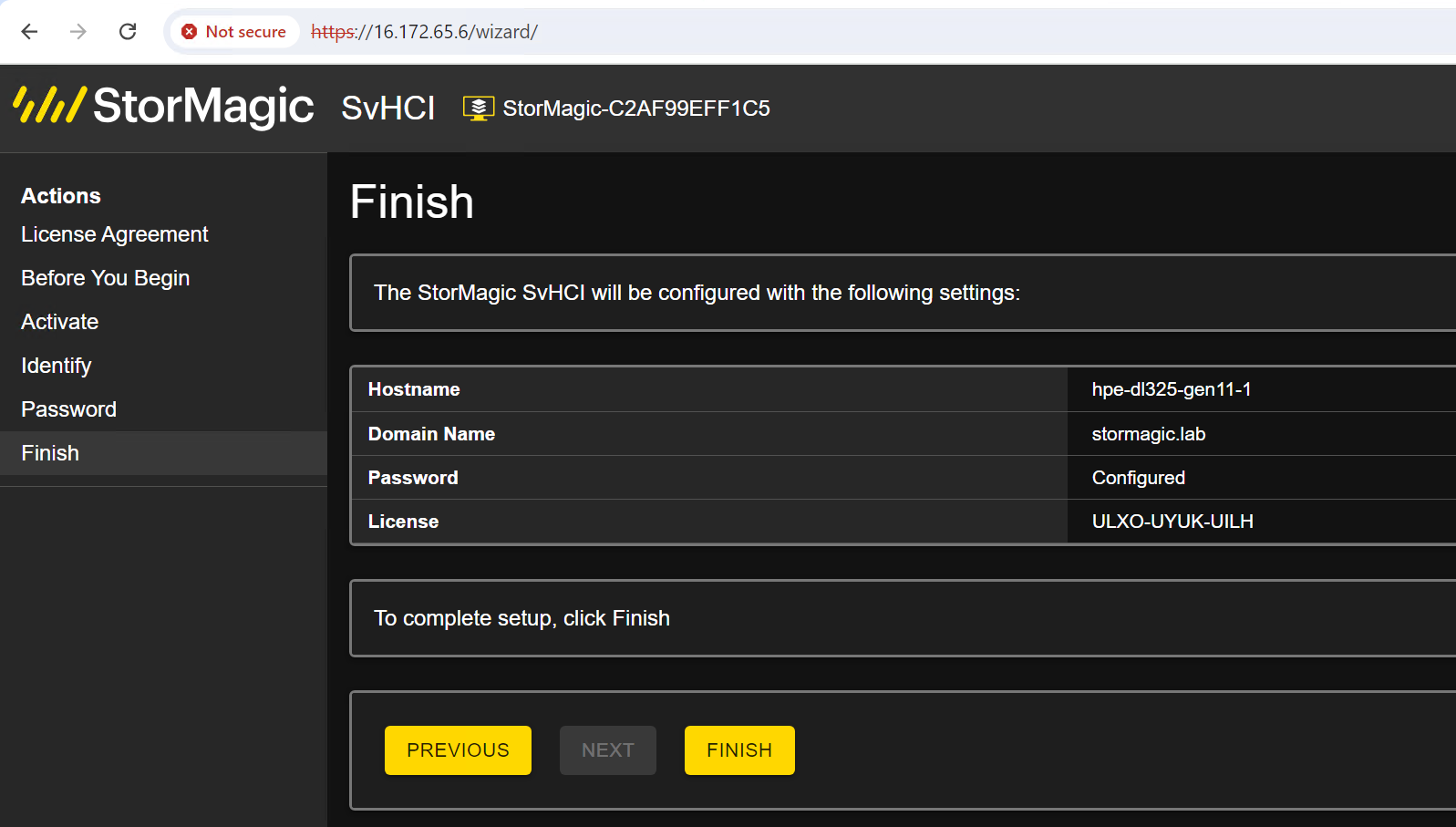

Complete the First Boot Wizard
