This article is intended for administrators wishing to configure two SvHCI nodes into a highly available 2-node cluster using a StorMagic Witness appliance.

Audience: Administrators Product: SvHCI Topic: Cluster Configuration Includes: Discovery • Witness • Cluster Join

Note: All images are clickable for enlarging or may be opened in a new browser tab.

Configure an SvHCI 2-Node Cluster

Configure two SvHCI nodes into a cluster using the StorMagic lightweight, sharable Witness appliance.

Scenario

This document details the Discovery Service, adding a static discovery entry for the Witness (if it is not automatically discovered), and pairing two SvHCI nodes into a 2-node cluster using a sharable Witness.

Prerequisite: Deploy and configure the Witness appliance before creating the cluster.

StorMagic SvHCI / SvSAN Witness – Deploy, Install, Upgrade and Migrate

↑ Back to top

Video Resource

The following video demonstrates a complete end-to-end SvHCI deployment.

↑ Back to top

Configure Discovery

StorMagic Discovery is used by SvHCI nodes and Witness appliances to locate one another on the network.

Additional information is available in the following documentation:

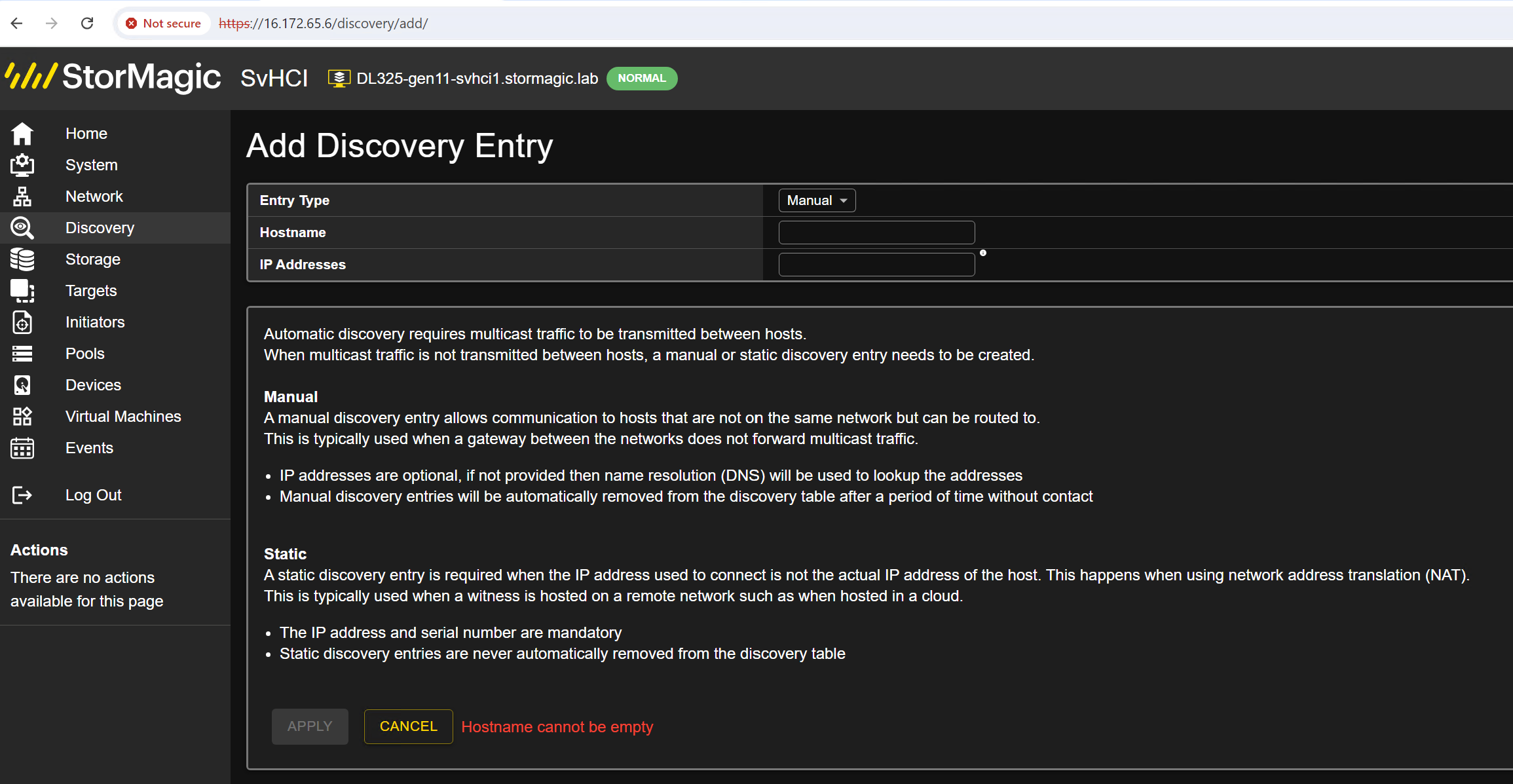

If the Witness resides on a different subnet and is not automatically discovered, add a static Discovery entry on both SvHCI nodes.

Add the Witness to Discovery

Witness Discovery

↑ Back to top

Join the Nodes into a Cluster

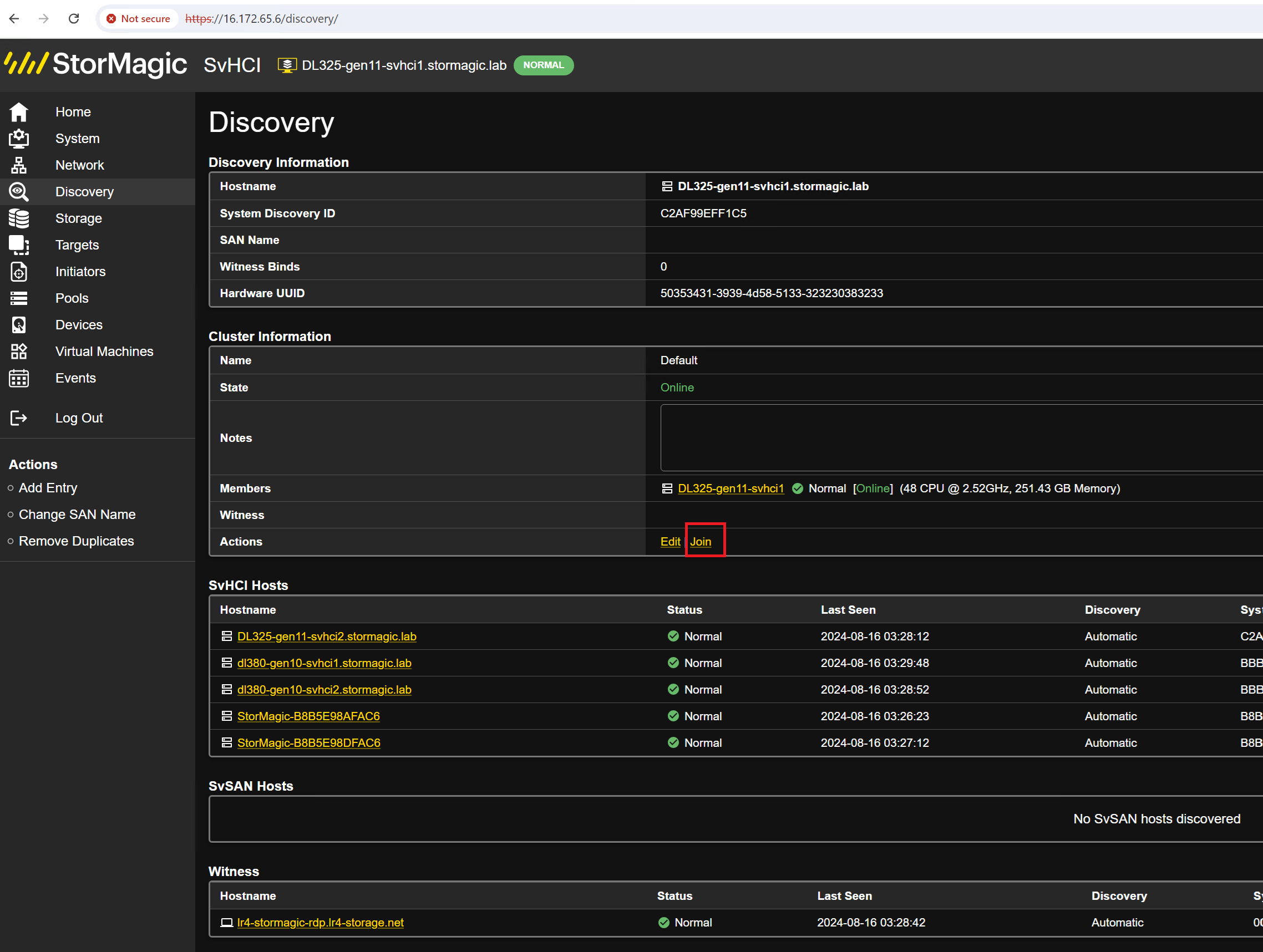

From the Discovery page, select Join.

Select Join

Join Cluster

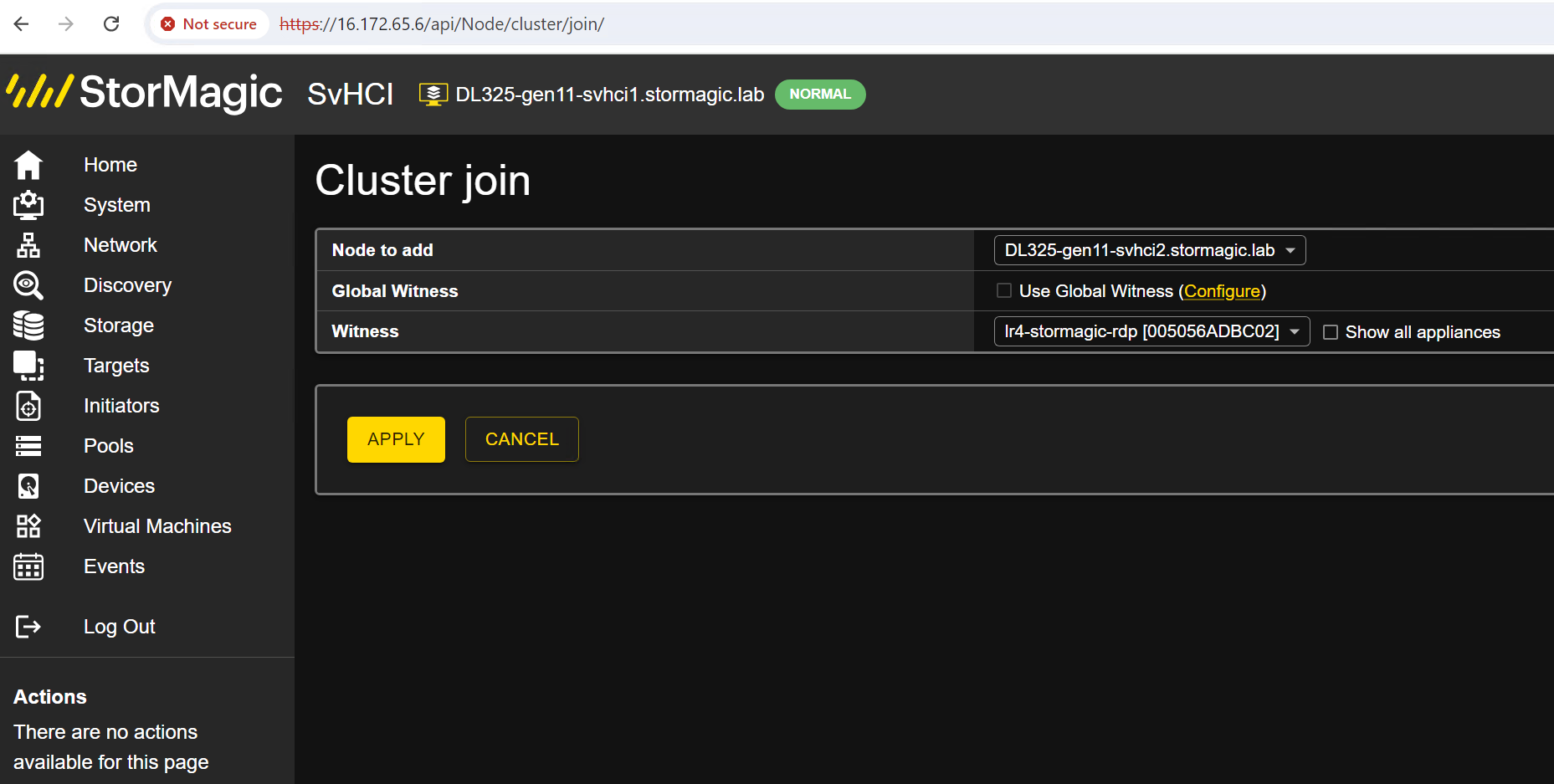

Select the partner SvHCI node together with the Witness appliance that will provide quorum for the new cluster.

Select the partner node and Witness

Select Witness

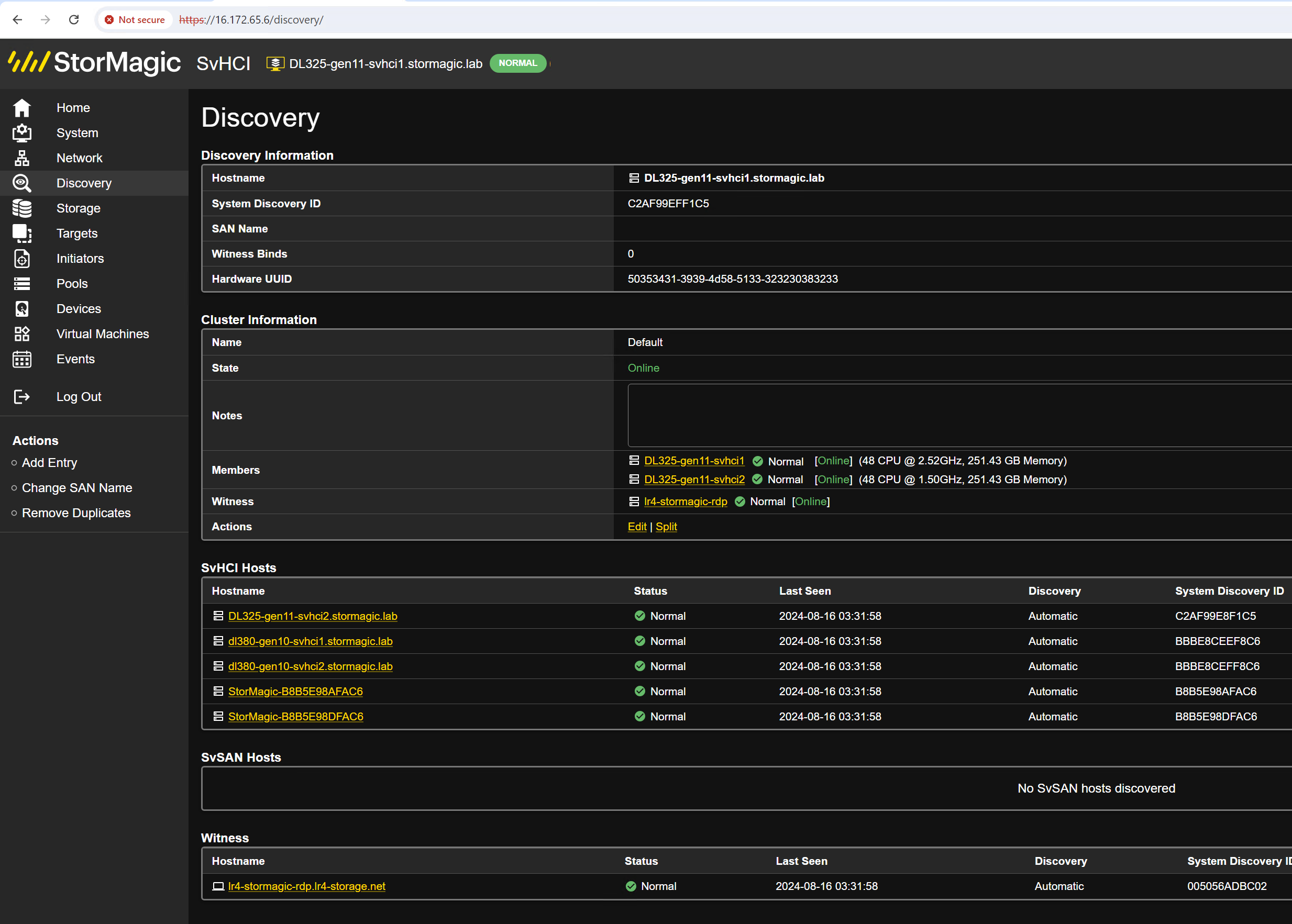

Once the operation completes successfully, the clustered SvHCI nodes are displayed within the Discovery page.

Cluster successfully created

Cluster Created

Complete: The two SvHCI nodes are now configured as a highly available cluster using the selected Witness appliance.
