This article is intended for administrators wishing to create a 2x node + witness High Availability cluster utilizing Proxmox 9.x Virtual Environment (https://www.proxmox.com/en/proxmox-virtual-environment/overview) and StorMagic SvSAN (https://stormagic.com/svsan/).
Note: All images are clickable for enlarging, or can be opened in a new tab
Information
Table of Contents
Guide Summary/shortcuts
This multipart guide will walk through the process to deploy 2x hyperconverged Proxmox VE nodes utilizing SvSAN virtualized block storage and a lightweight witness node, such as a Raspberry Pi, or our debian Witness service running in a NAS device.
Hardware Utilized
HPE Edgeline el4000
Cartridge 1 iLO = 10.10.194.1/24
Cartridge 2 iLO = 10.10.194.2/24
HPE M510 Cartridge
Intel Xeon CPU D-1548 8C@2.00GHz
64GB RAM, 2x 32GB DIMMS
1x120GB SATA SSD as boot disk
2x 4TB (3840GiB) NVMe SSDs
- Samsung MZ1LB3T8HMLA-00007

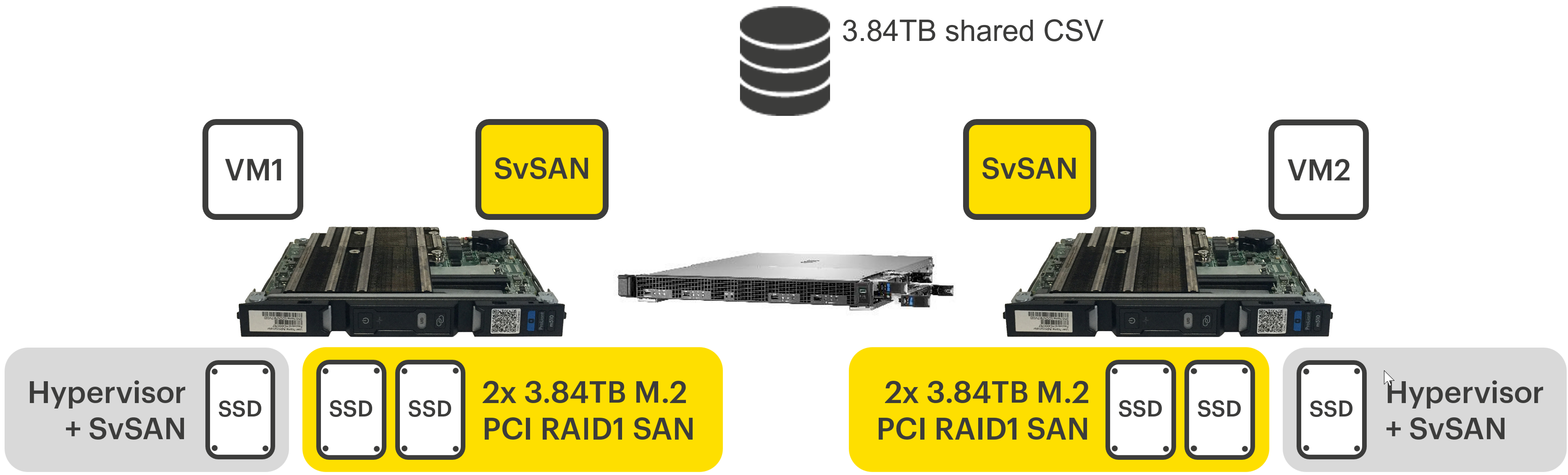

This example runbook enables the deployment of 2x servers running Proxmox on separate boot storage, and 2x SvSAN VSAs enabling shared storage with software RAID1 over 2x 3.84TB NVMe m.2 adapters similar to the below diagram:
Installing Proxmox VE
Install using the Proxmox ISOs

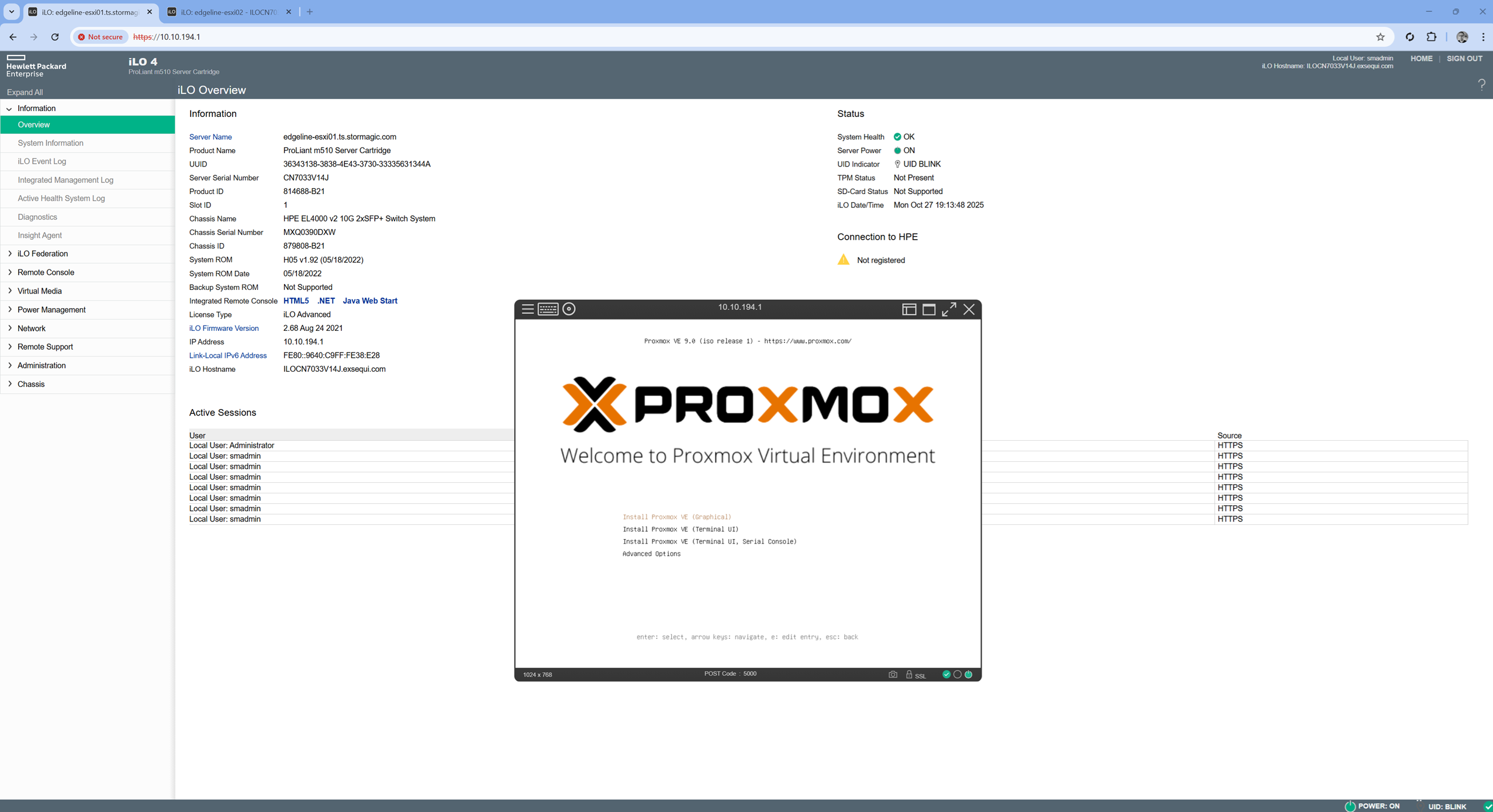

Proxmox install splash screen

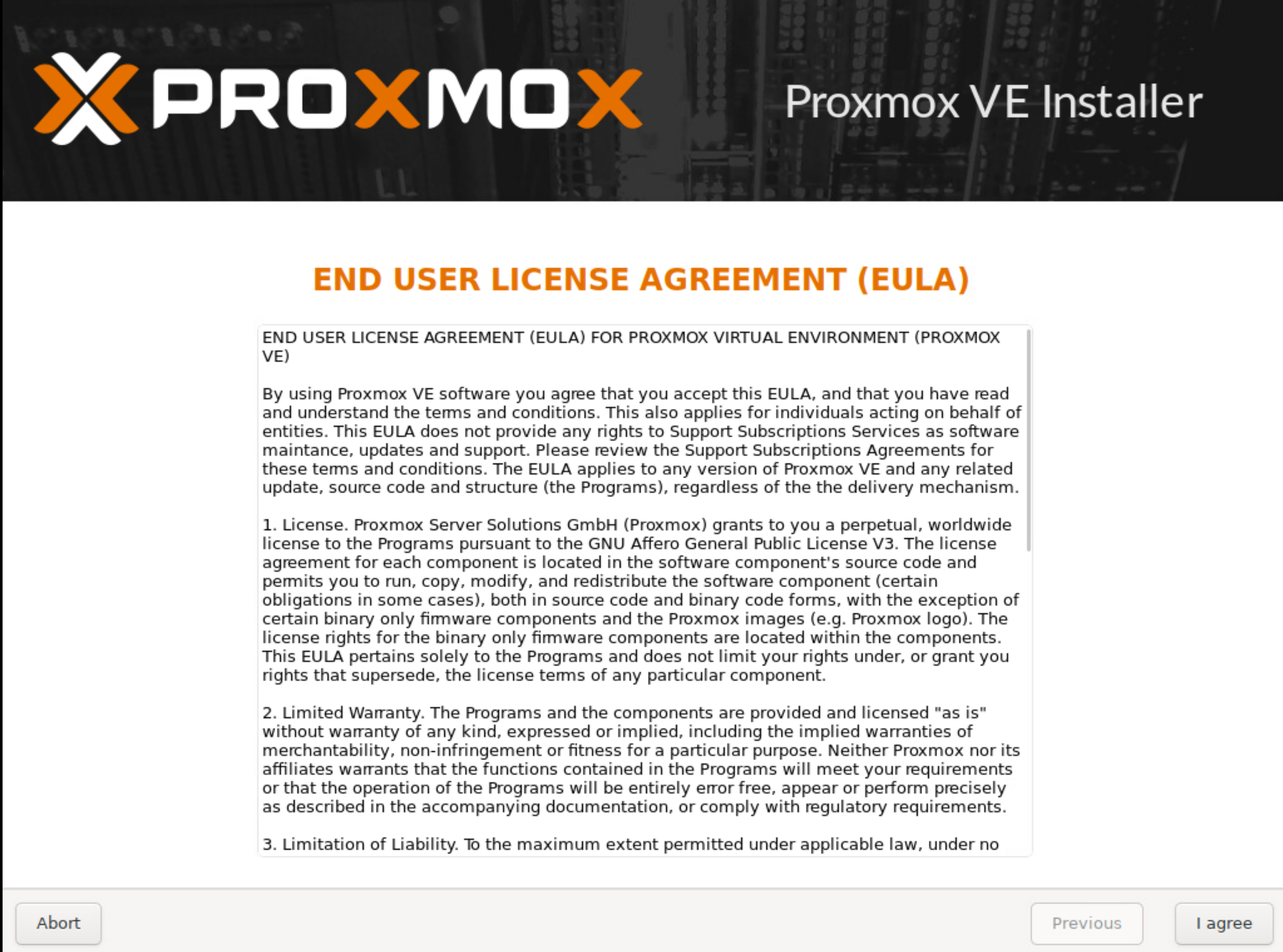

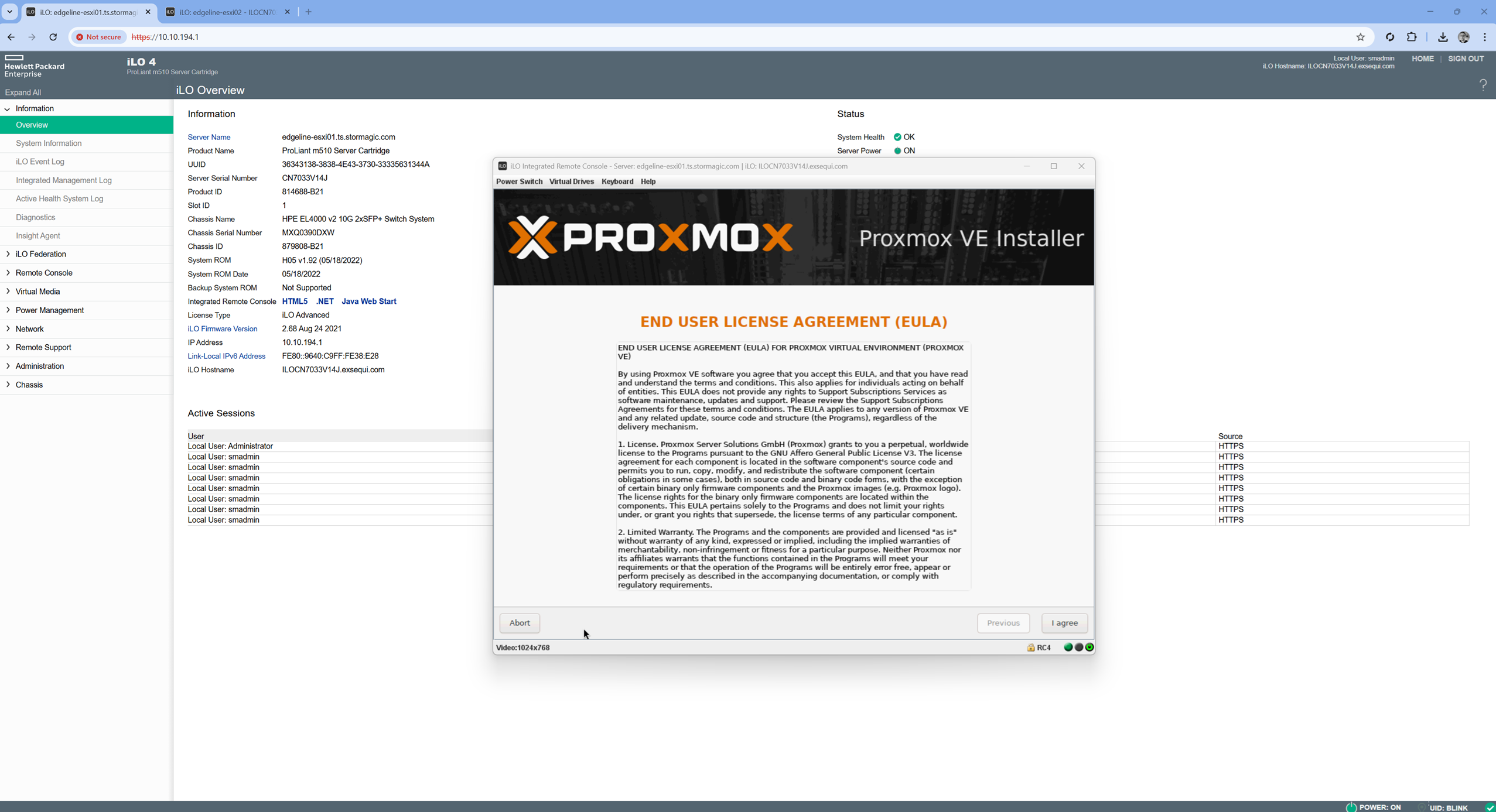

Promox install EULA

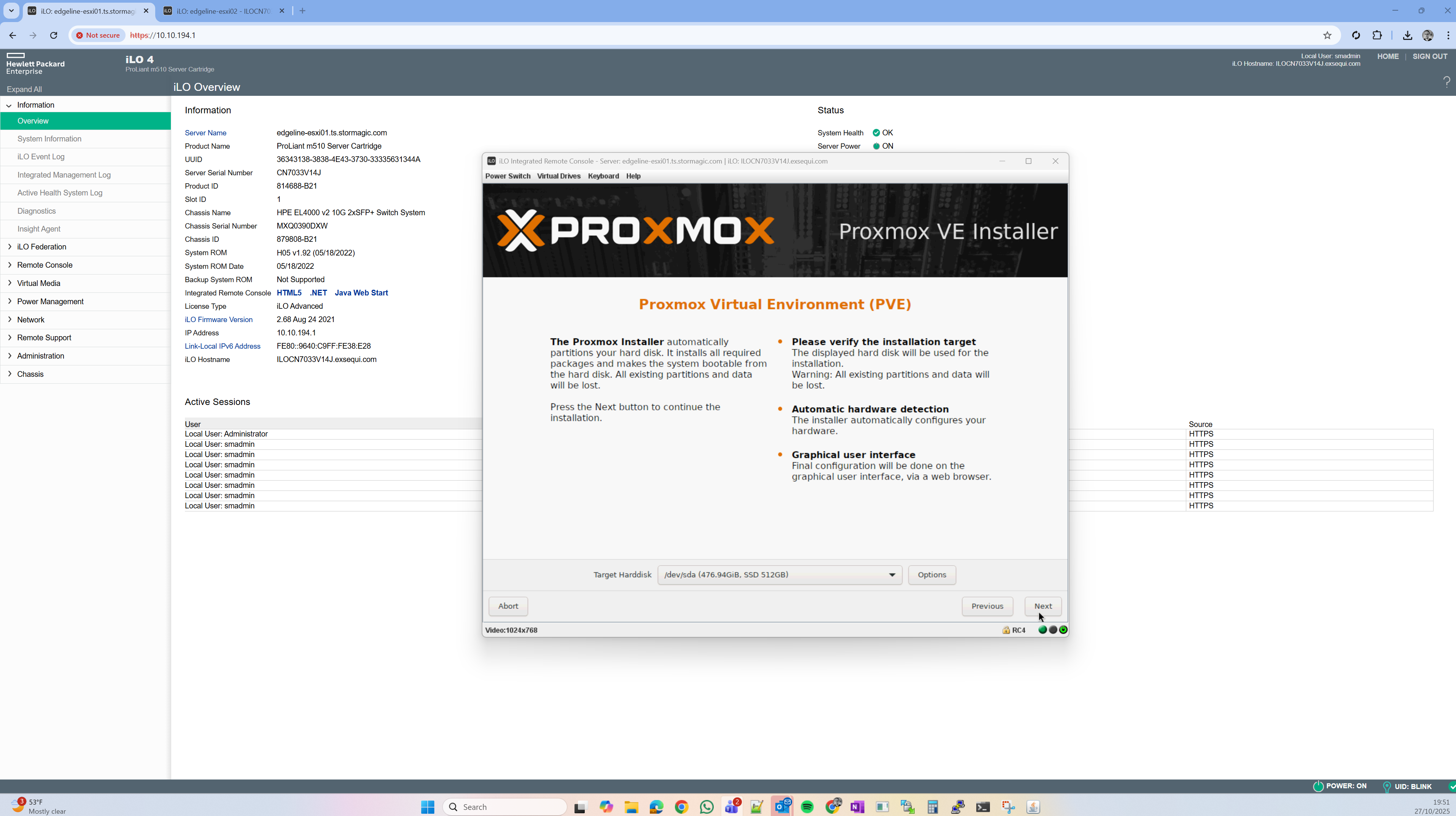

Proxmox OS disk selection

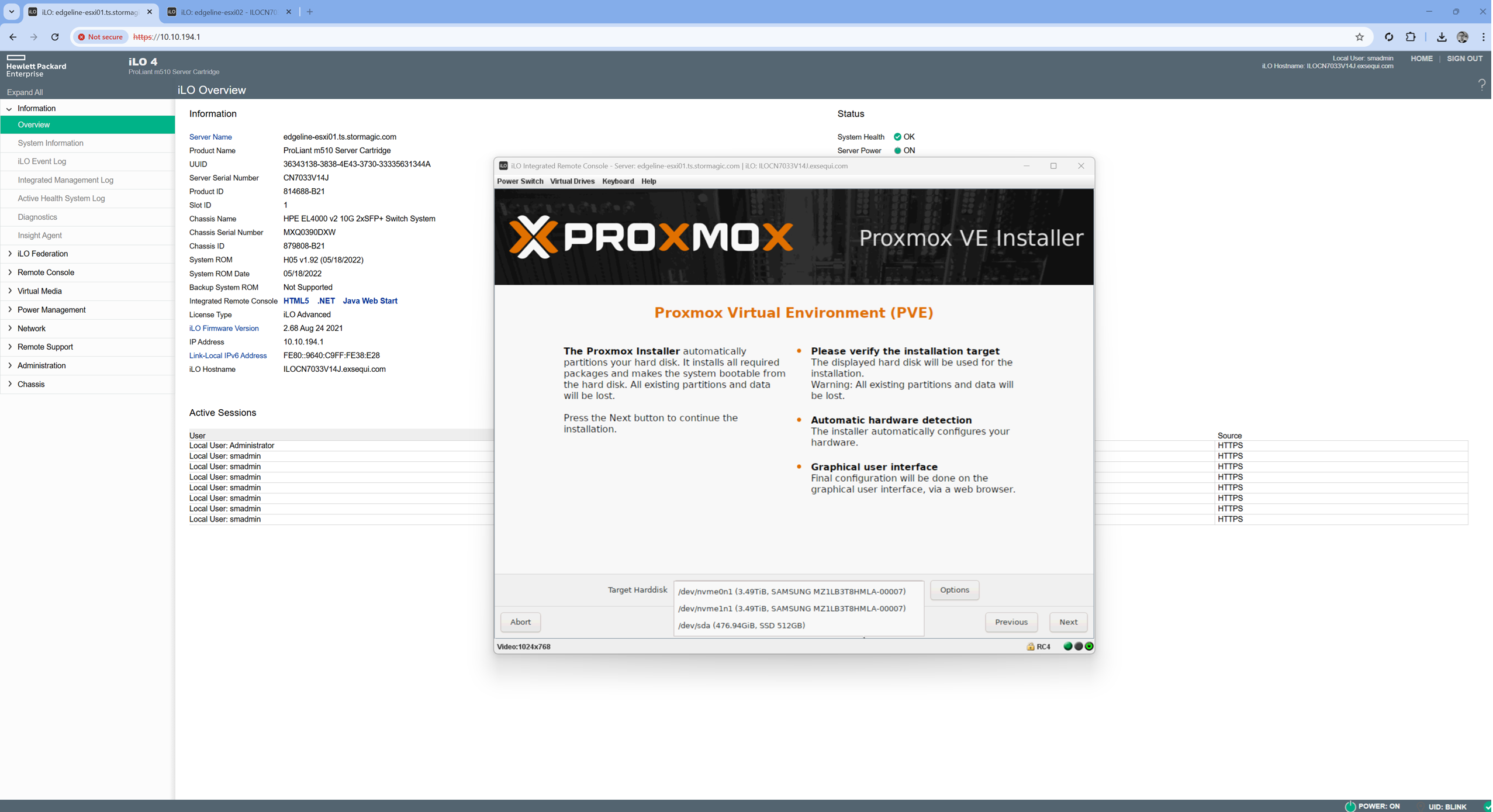

Proxmox OS disk selection - selecting the 512GB boot m.2

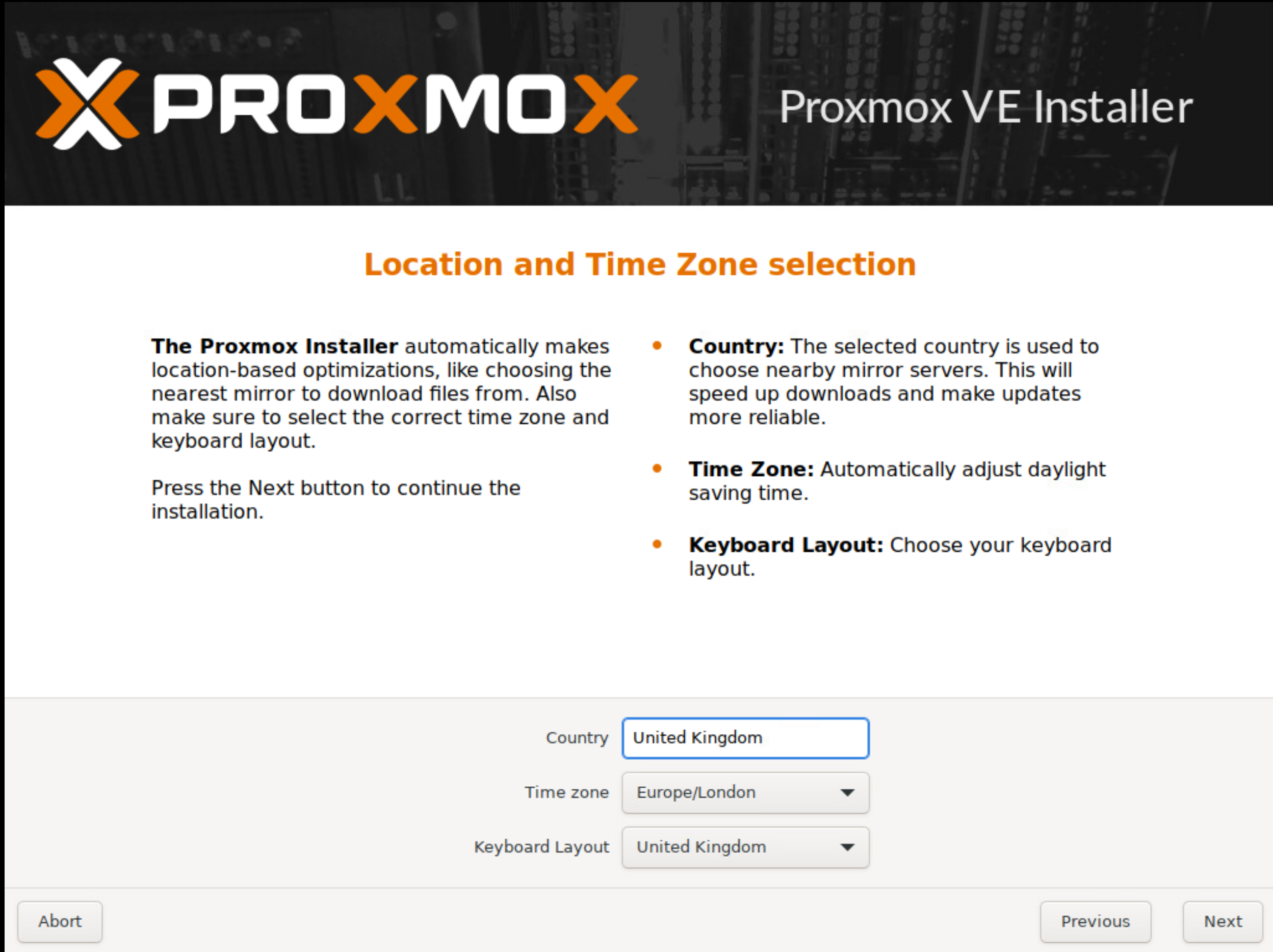

Proxmox install location and time zone settings

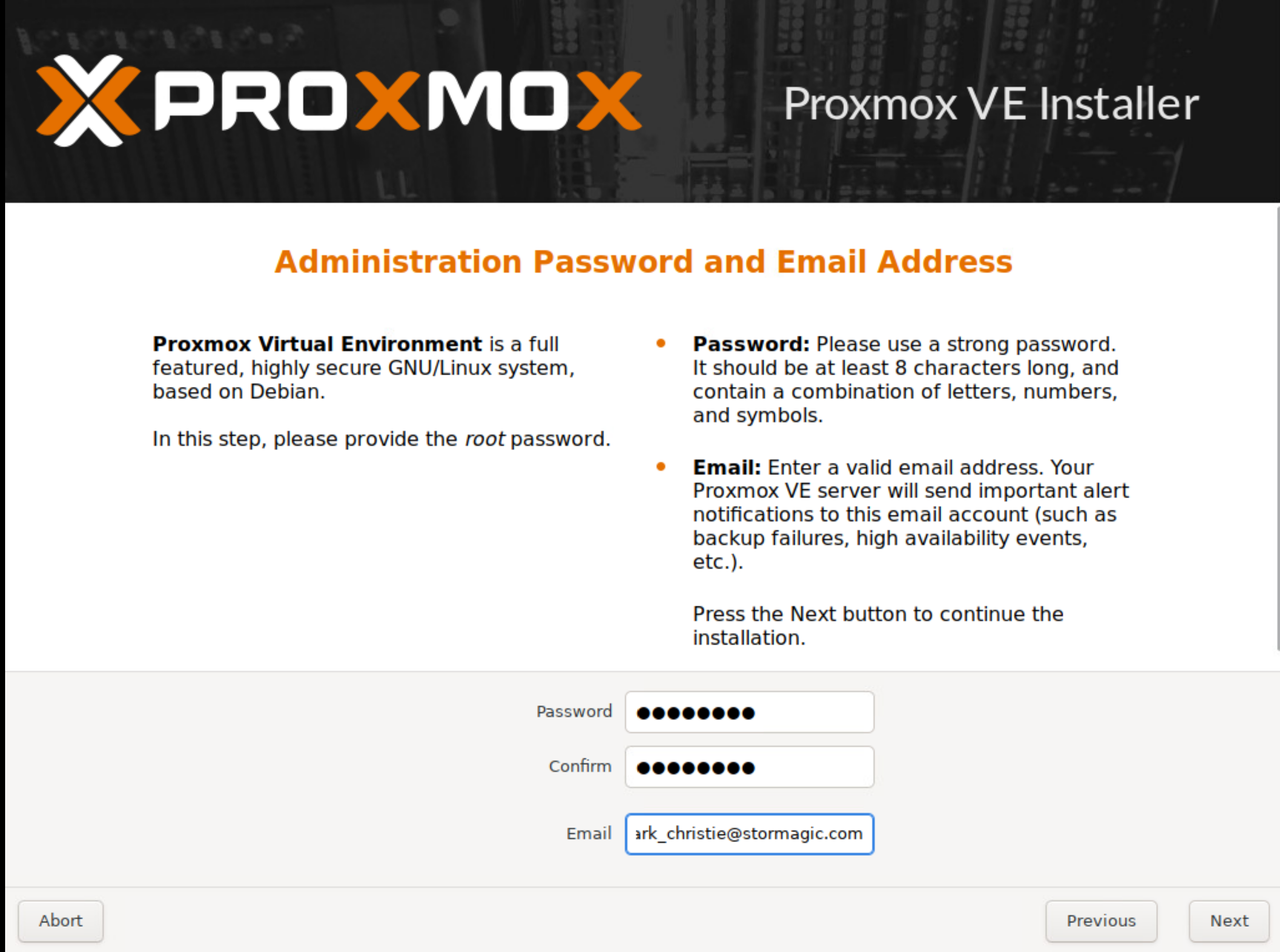

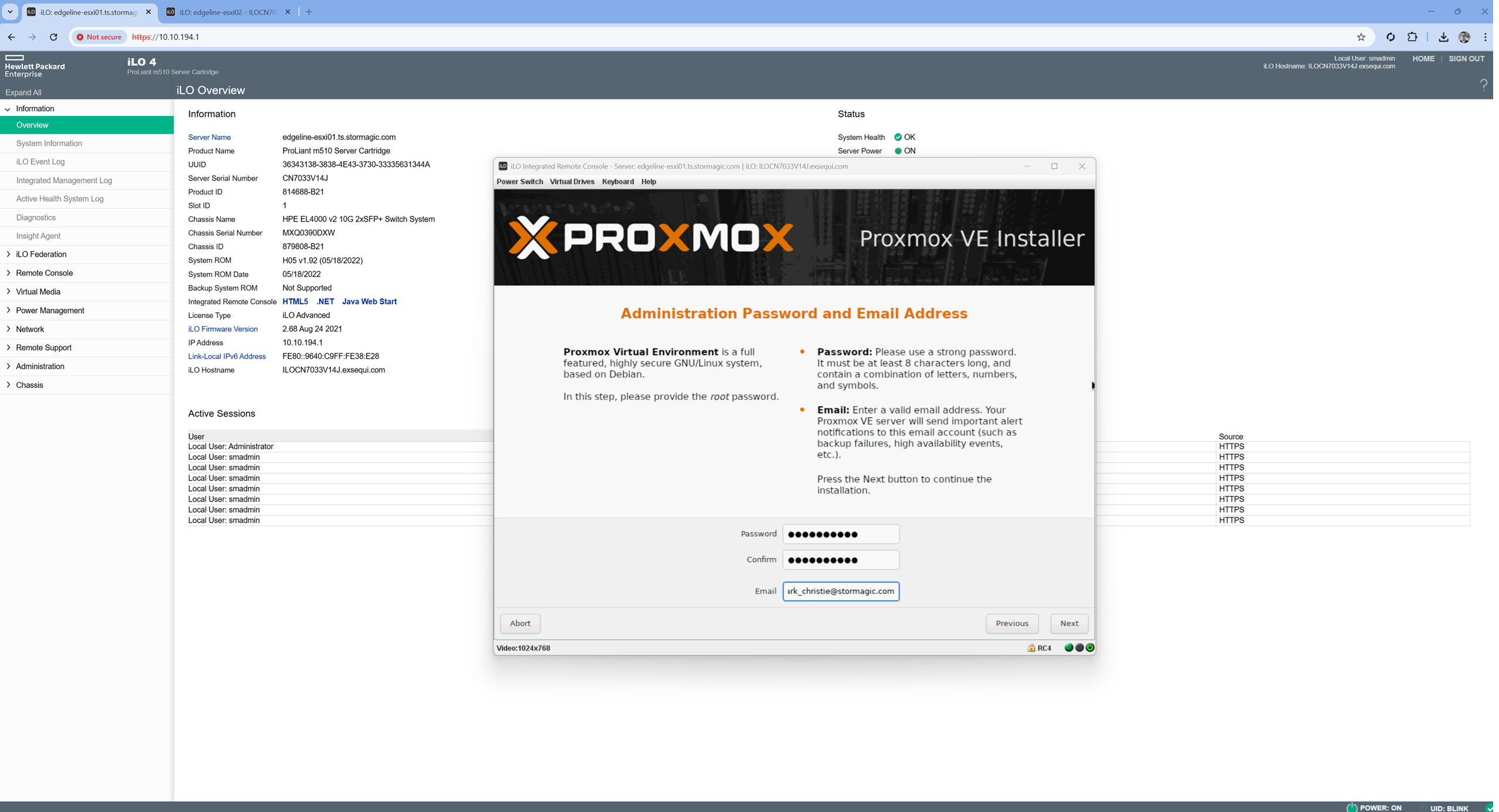

Promox install root password configuration

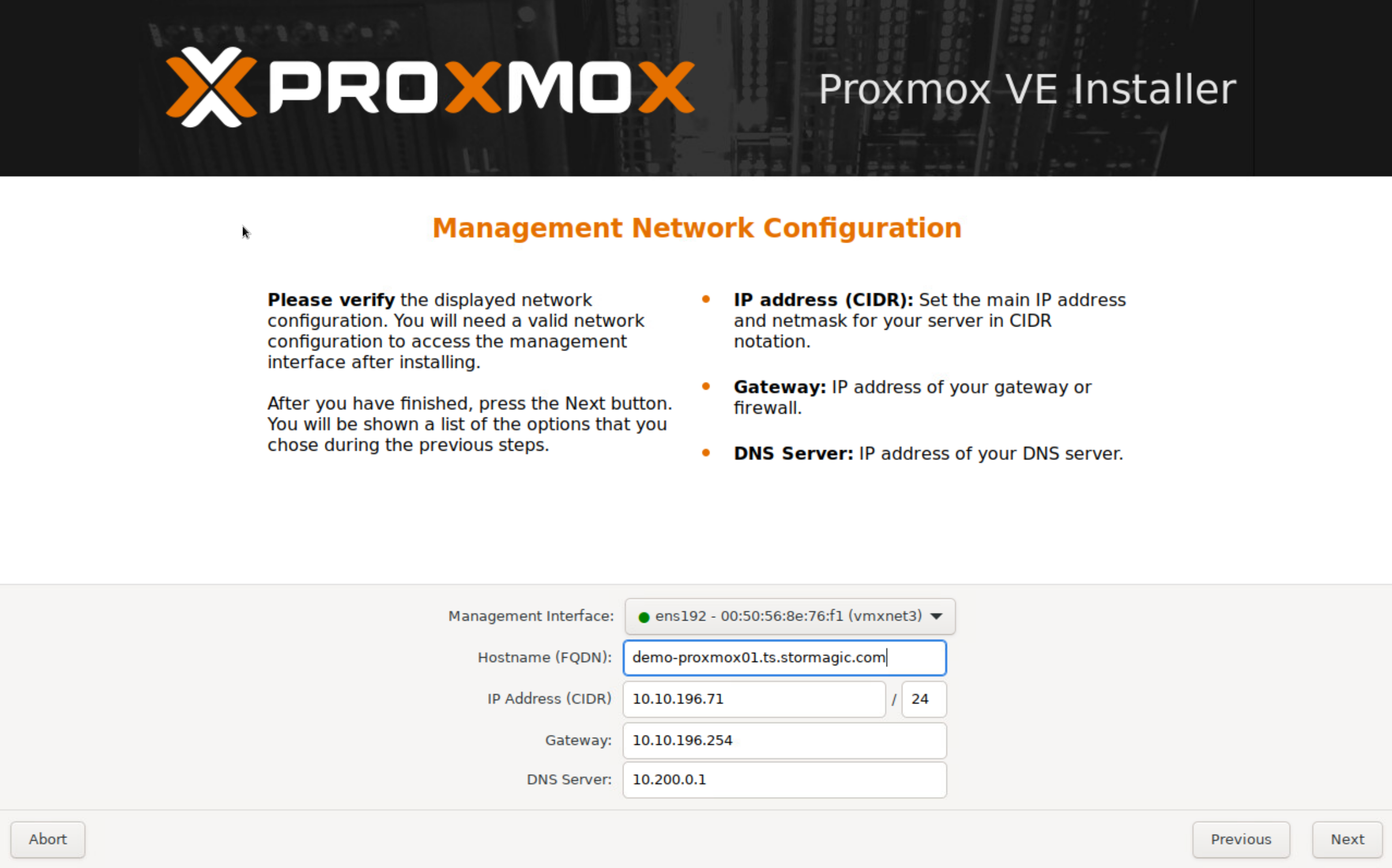

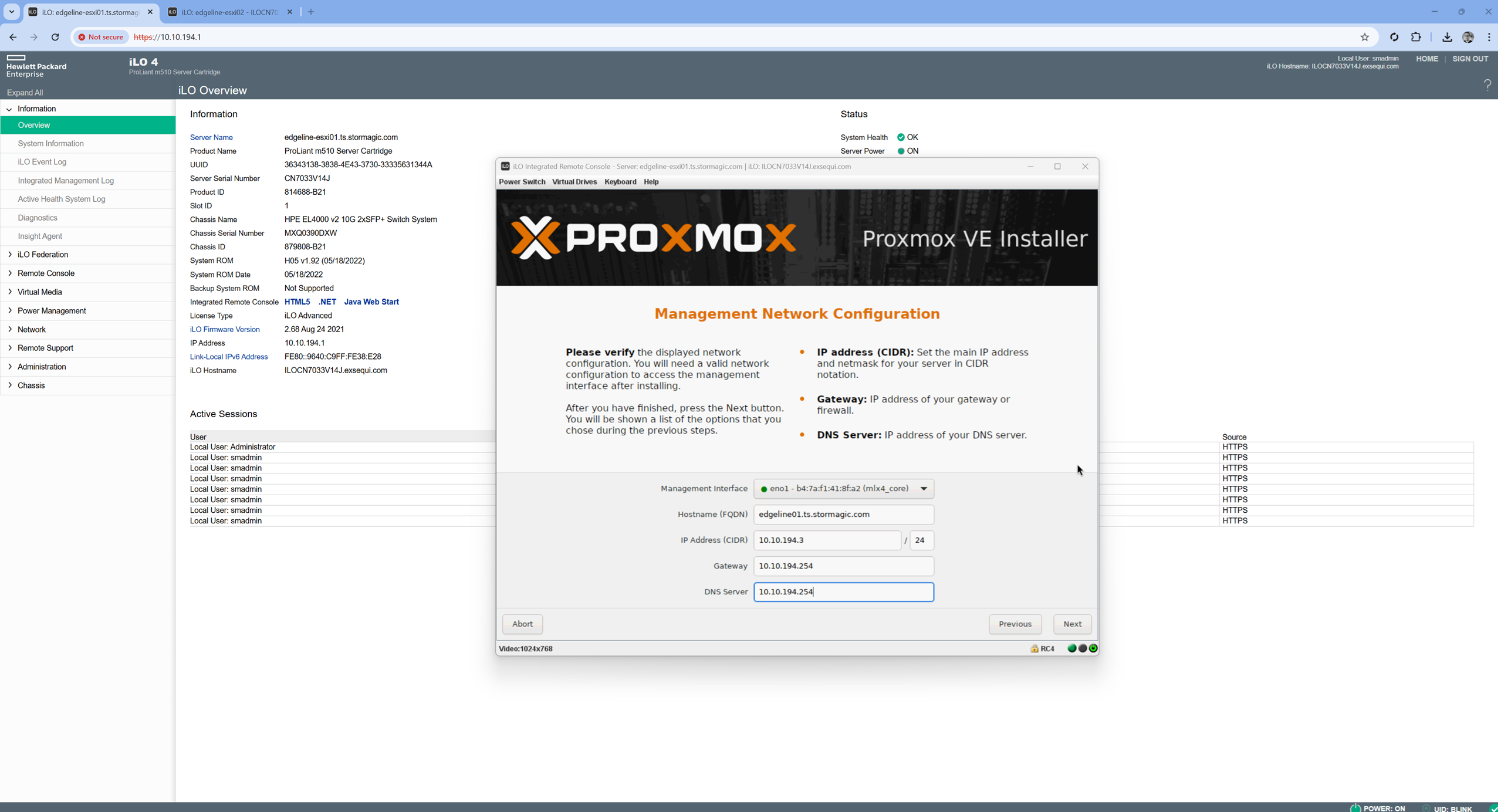

Promox install hostname and management IP address settings

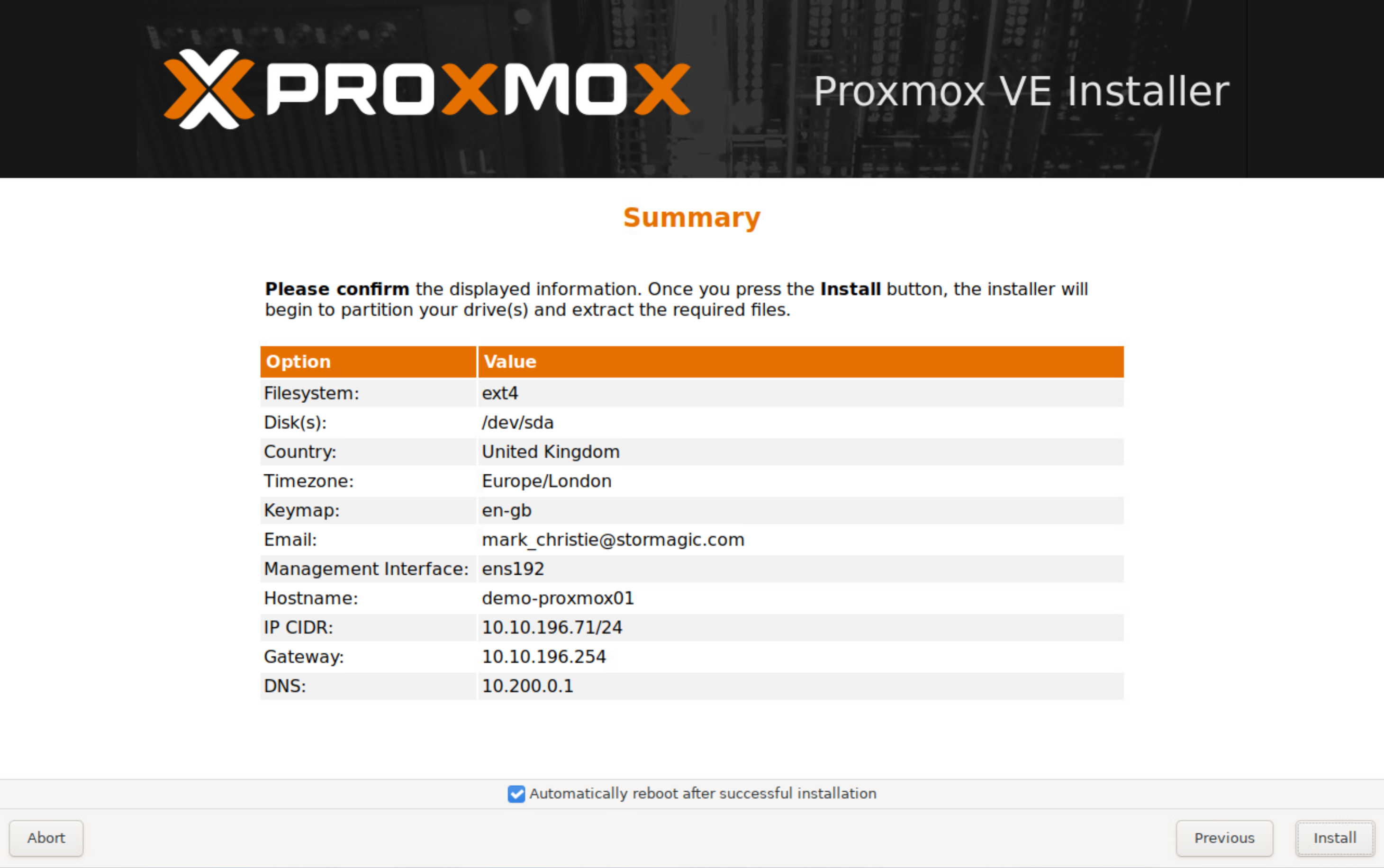

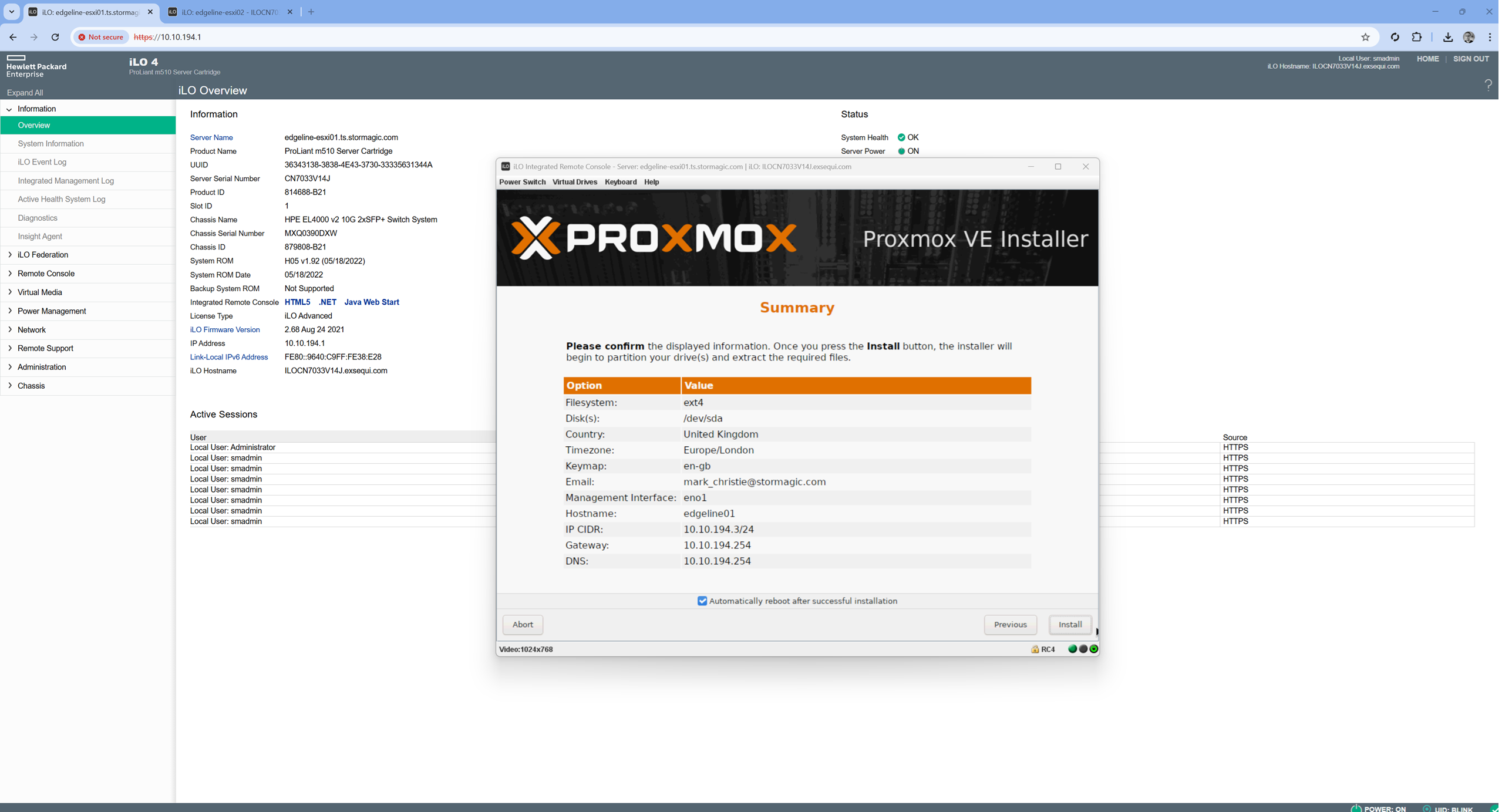

Proxmox install Installation config summary

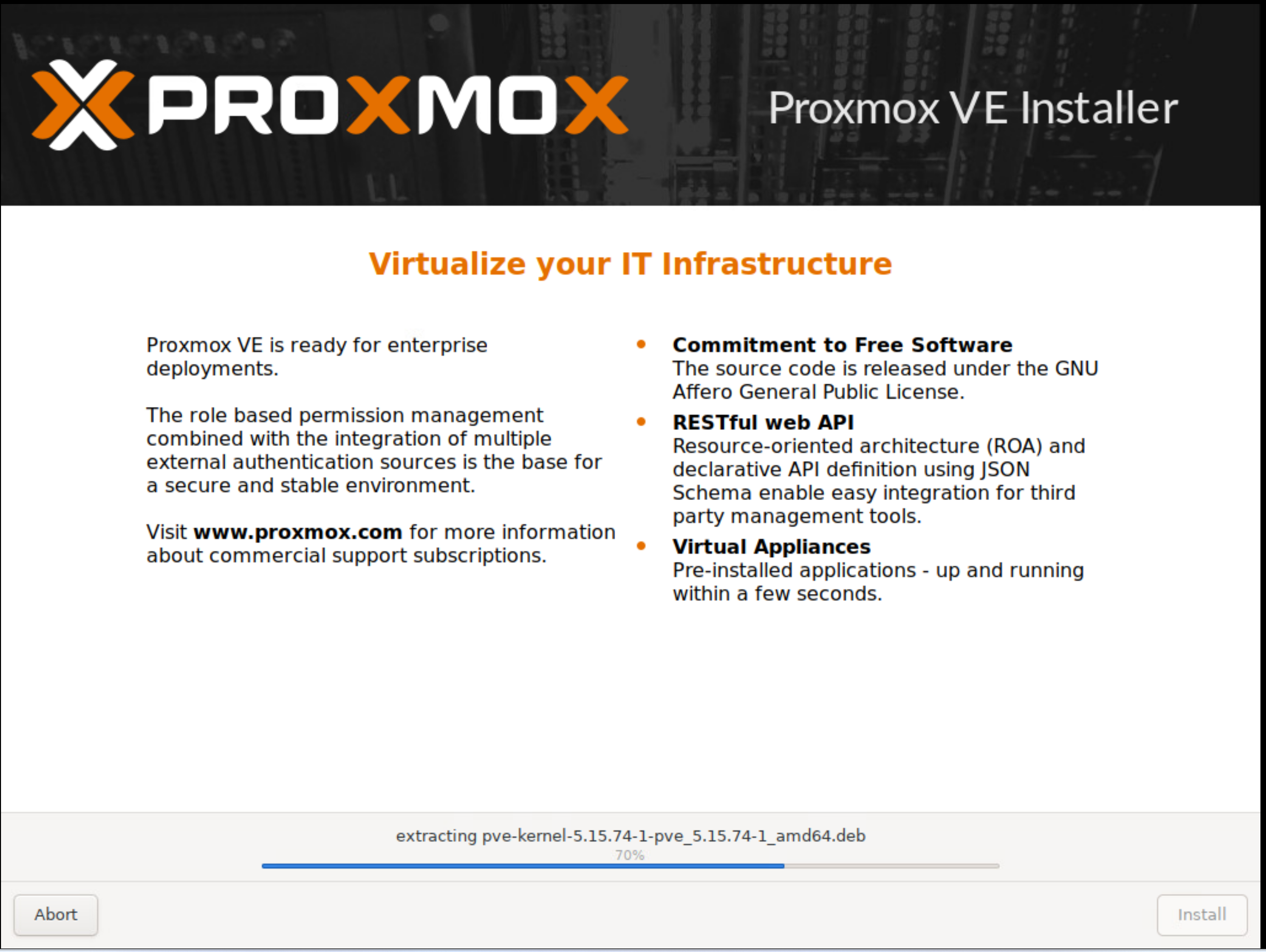

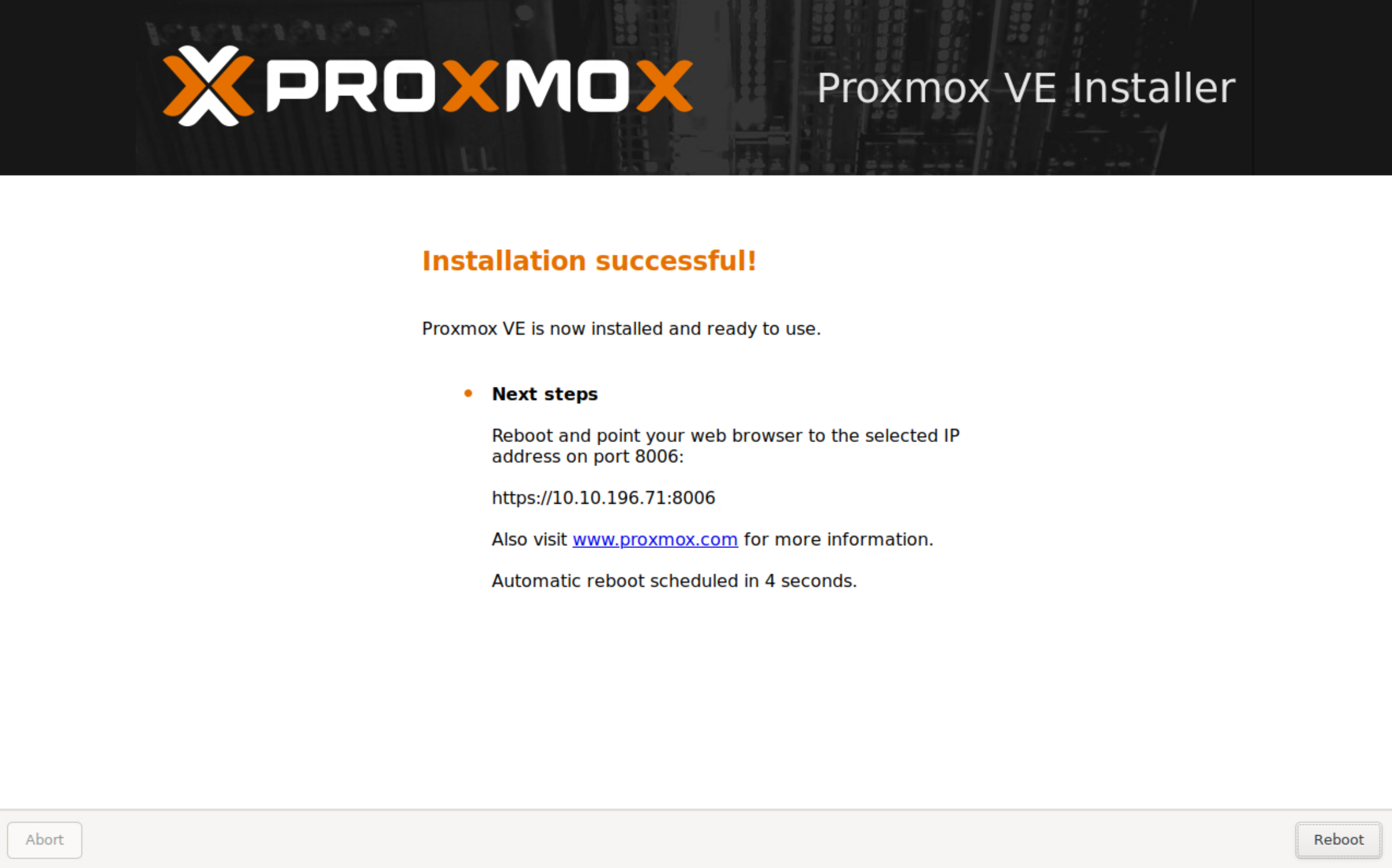

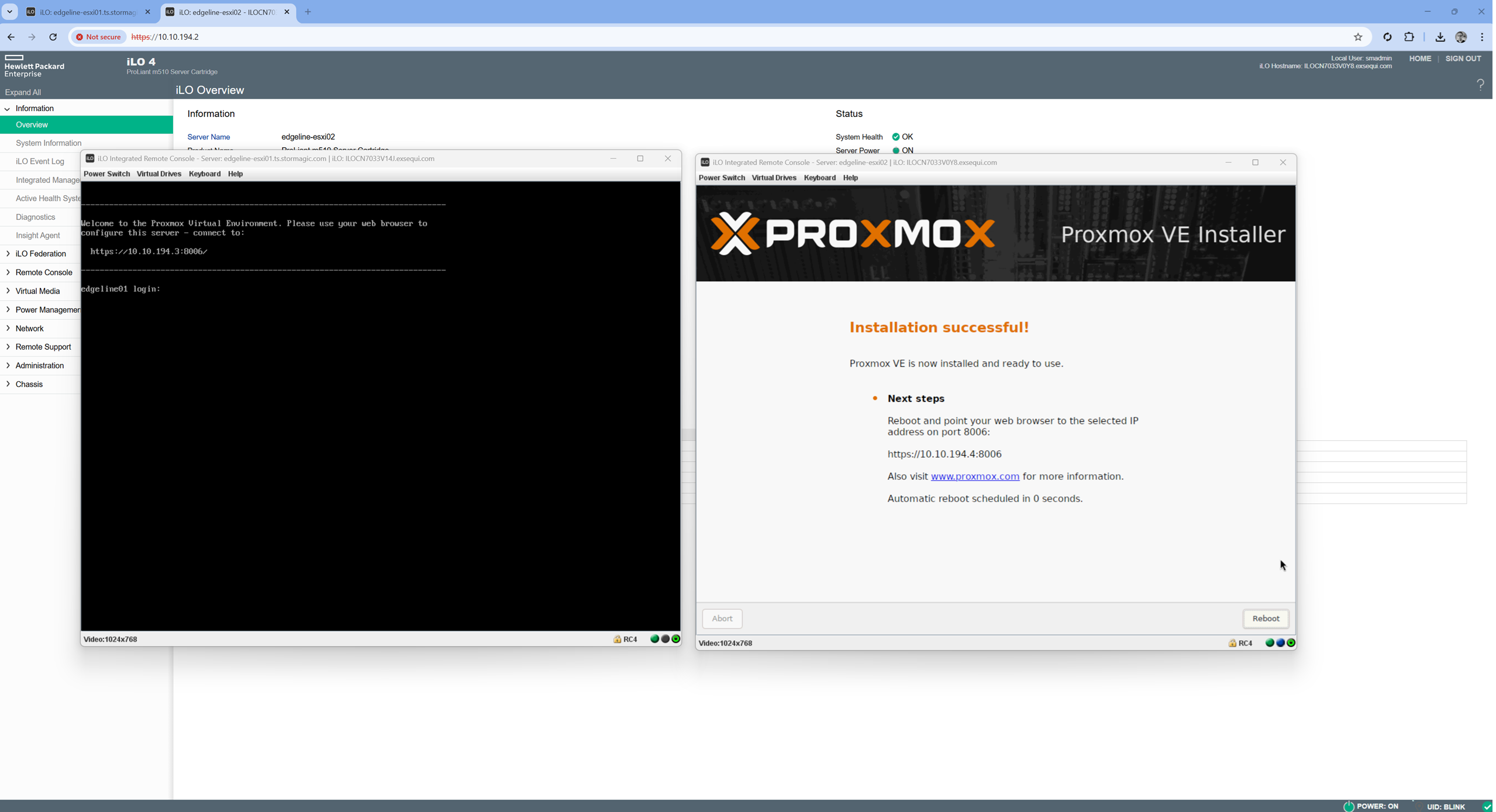

Proxmox installation progress

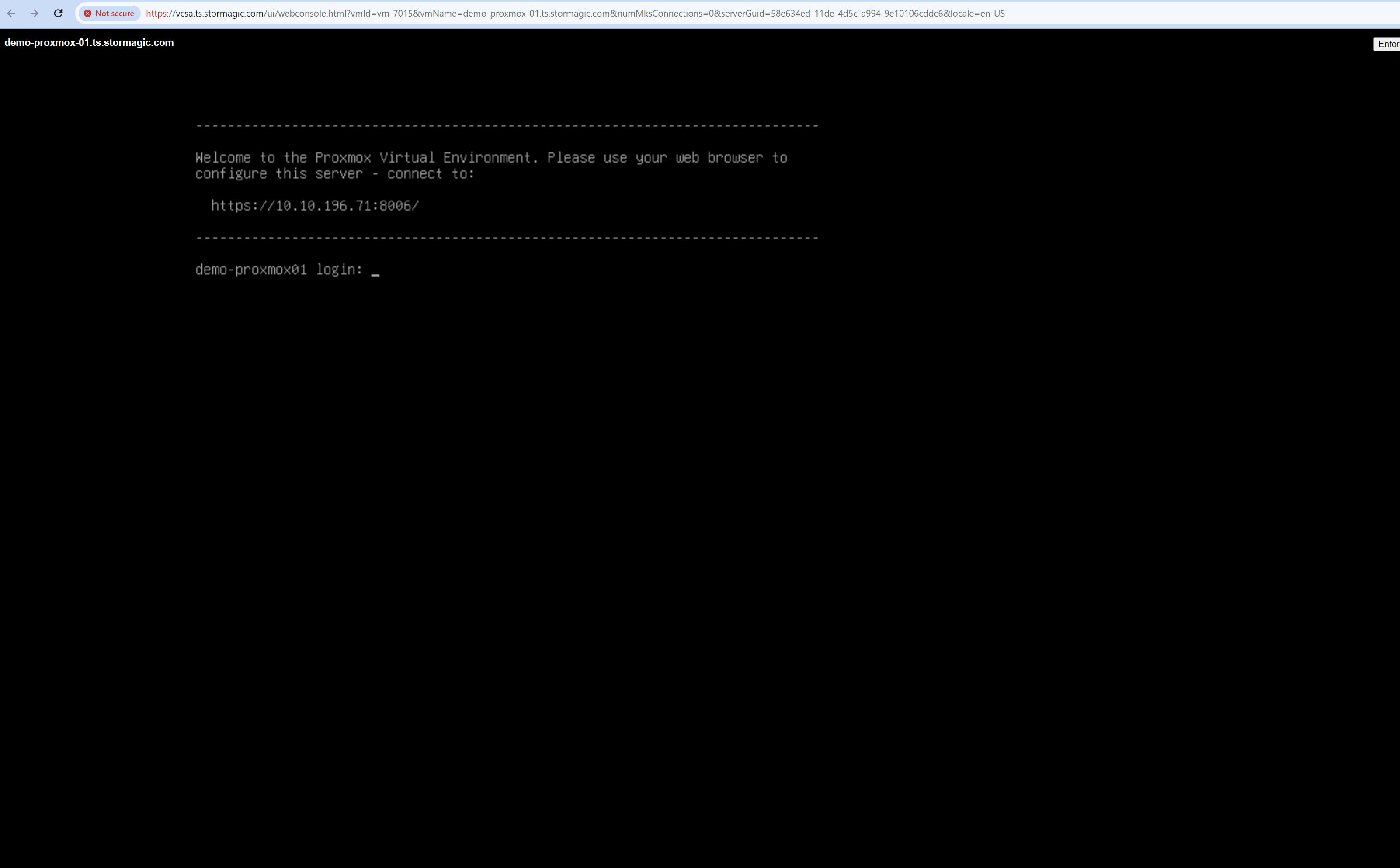

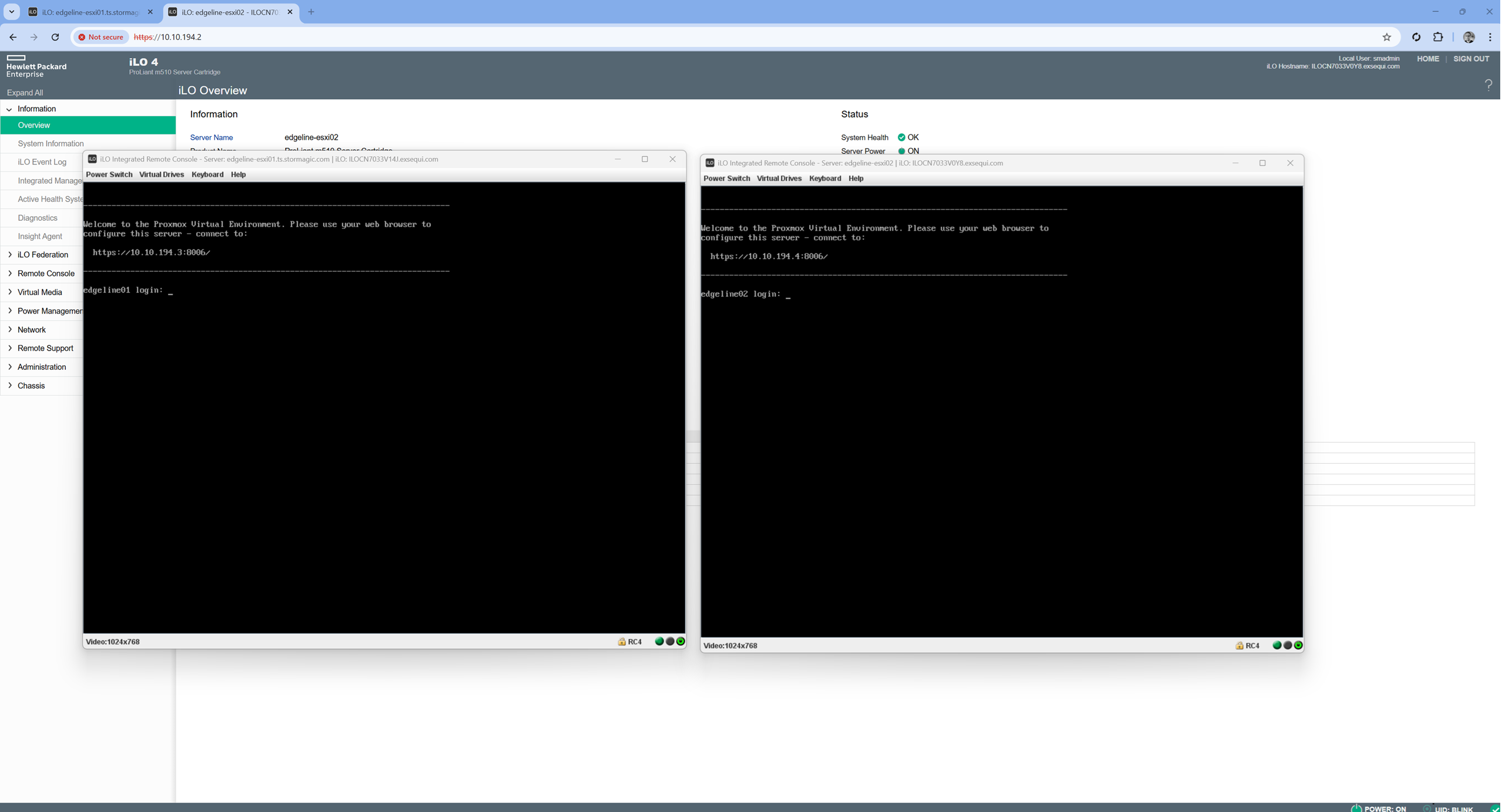

Proxmox Console view
Promox Console view

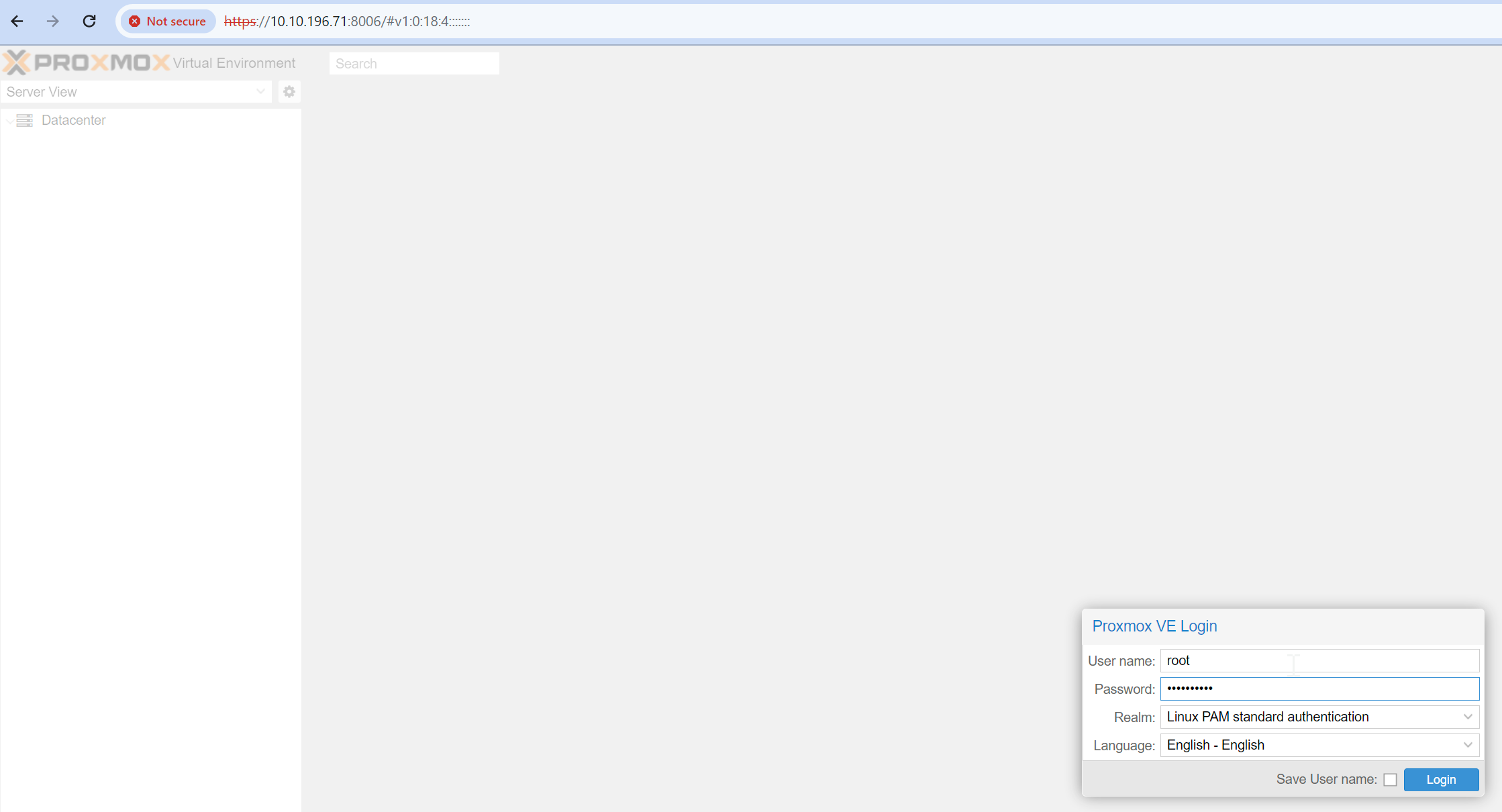

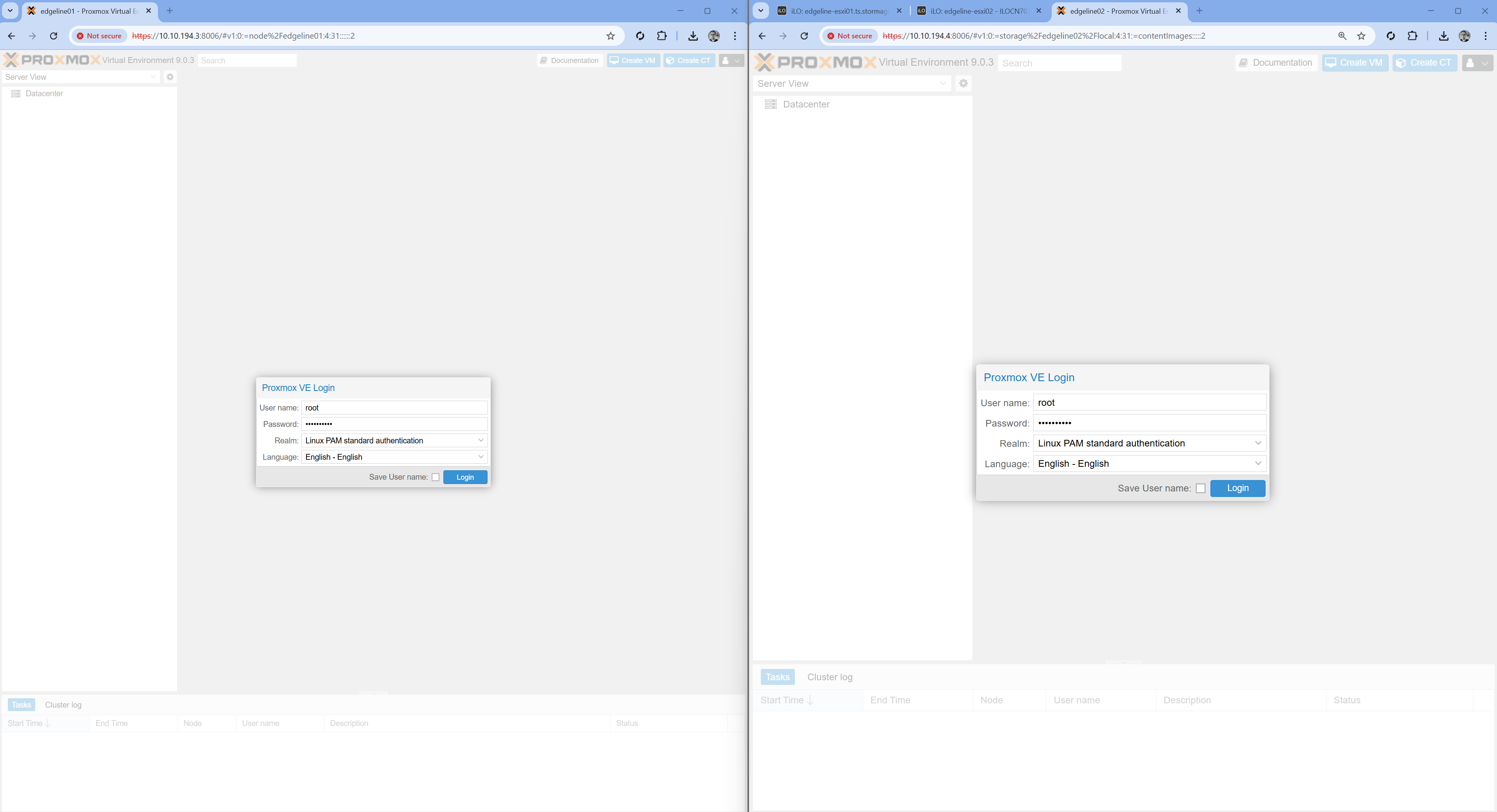

Proxmox VM webGUI access on node IP address on port 8006

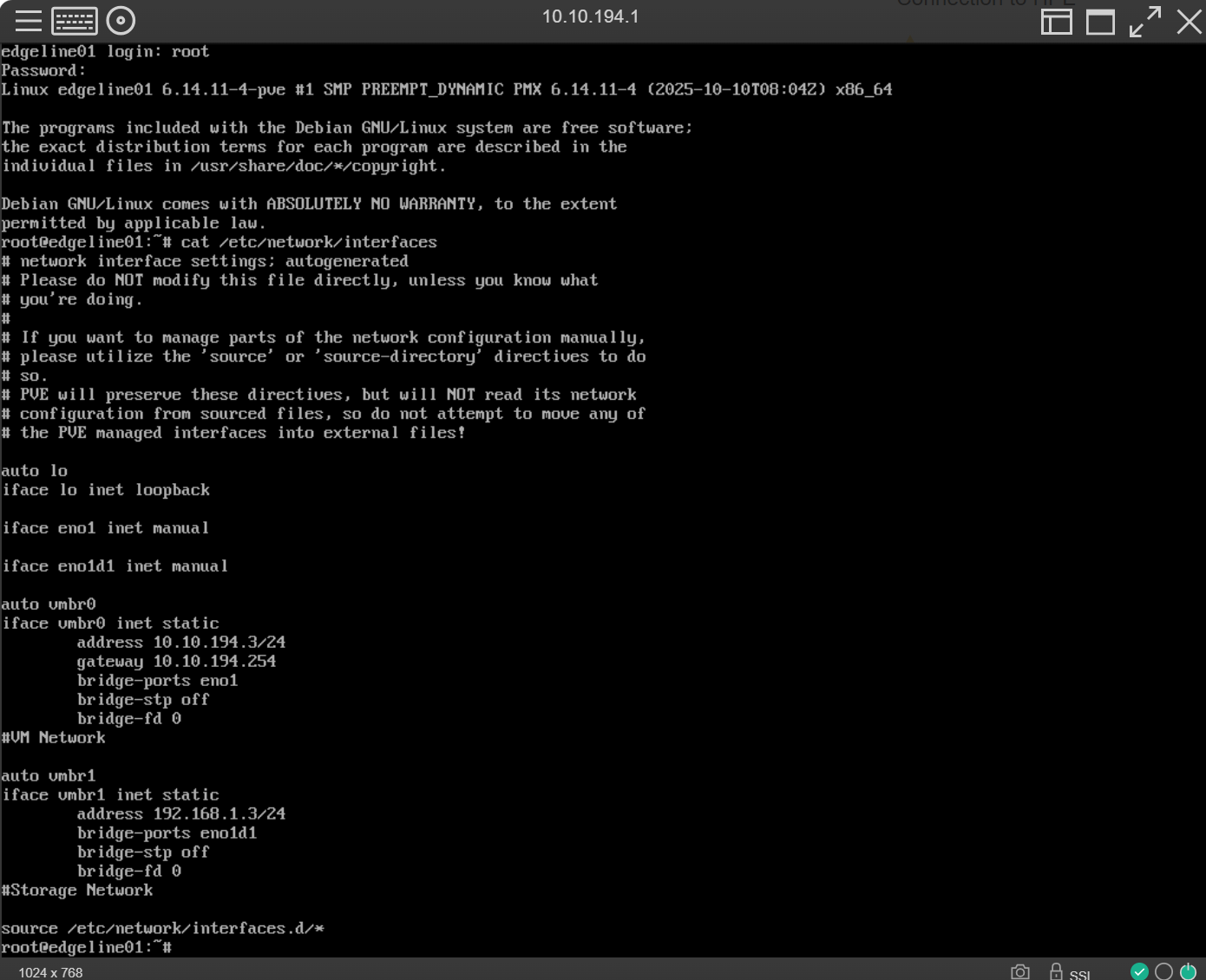

Should the Proxmox WebGUI not be accessible, the networking may be modified via the console (such as iLO) to modify /etc/network/interfaces, per the below, should the wrong NIC have been selected or gateway details wrongly entered or similar.
