This article is intended for administrators wishing to configure vSphere Aria (vRealize) to monitor an SvSAN storage environment.
Note: All images are clickable for enlarging, or can be opened in a new tab
Information
VMware Aria is an intelligent multi-cloud management solution that enables you to consistently deploy and operate your apps, infrastructure, and platform services across private, hybrid, and multiple clouds from a single platform with a common data model. It provides visibility into the entire tech stack, including all physical, virtual, and cloud infrastructure components. Provides a set of end-to-end solutions for managing the cost, performance, configuration, and delivery of infrastructure and applications. Expressly designed for the operational challenges of cloud-native applications and public cloud environments, VMware Aria truly delivers a wholly new perspective on multi-cloud management.
Preparing Your environment for Aria Deployment, VMware video:
https://www.youtube.com/watch?v=c_5QkNeZ6Xg
Installation of Aria, for performance metrics

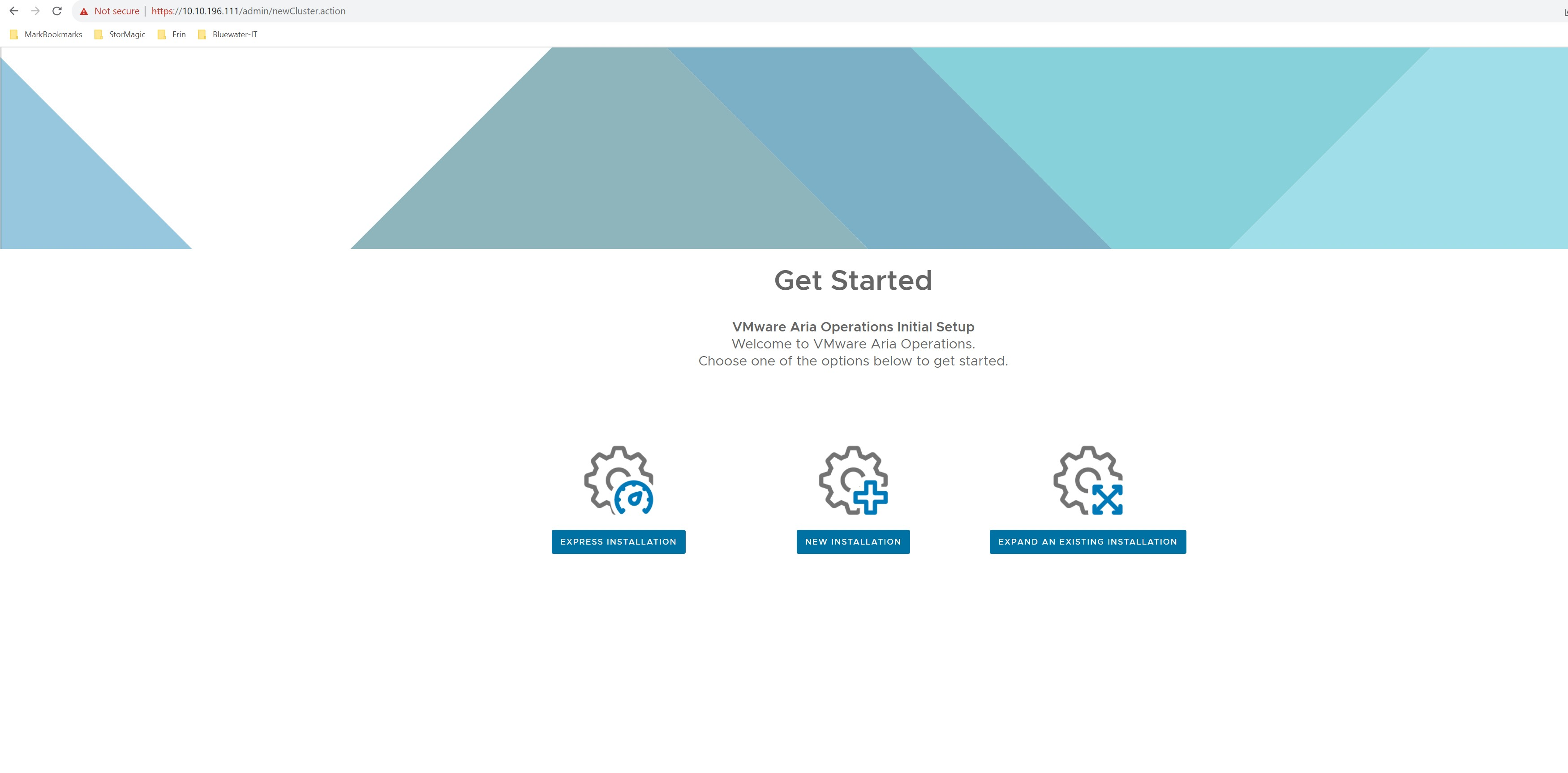

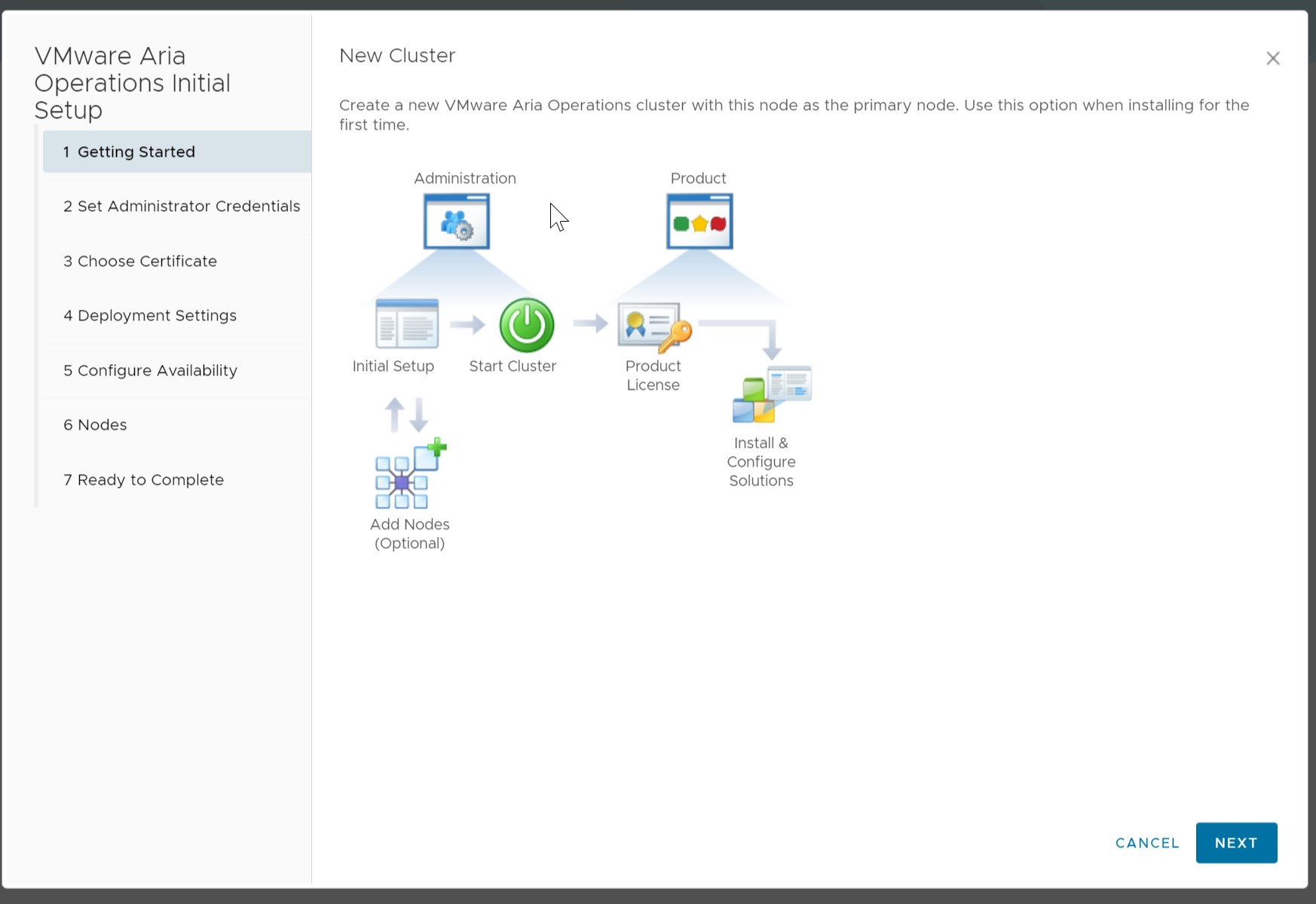

Select type of installation. The process will vary based on the installation selected.
In this example New installation was utilized.
select Next

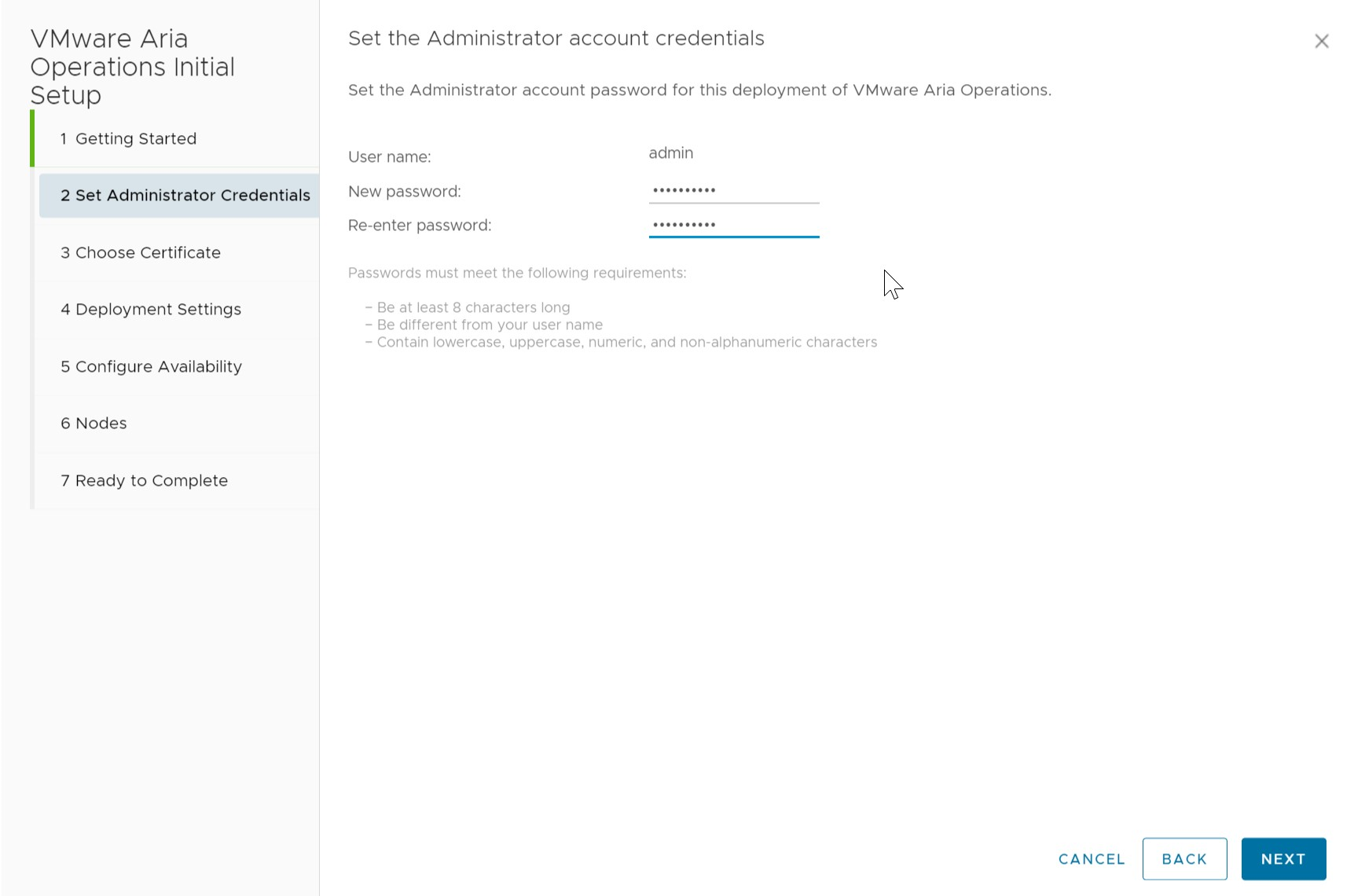

Enter administrator account credentials
select Next

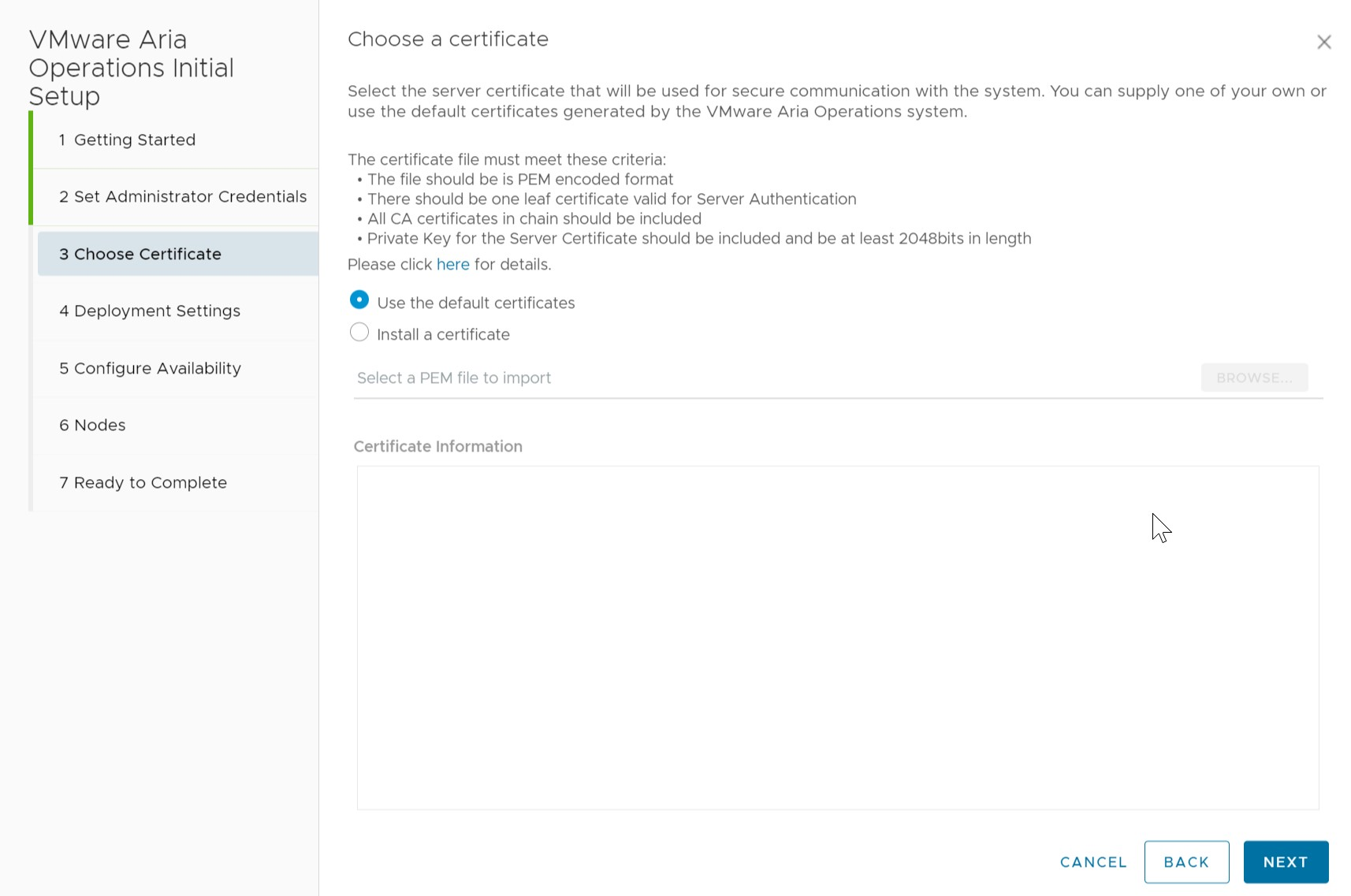

Choose a certificate, use default or install a certificate
select Next
Provide a node name and NTP Server address
select Next

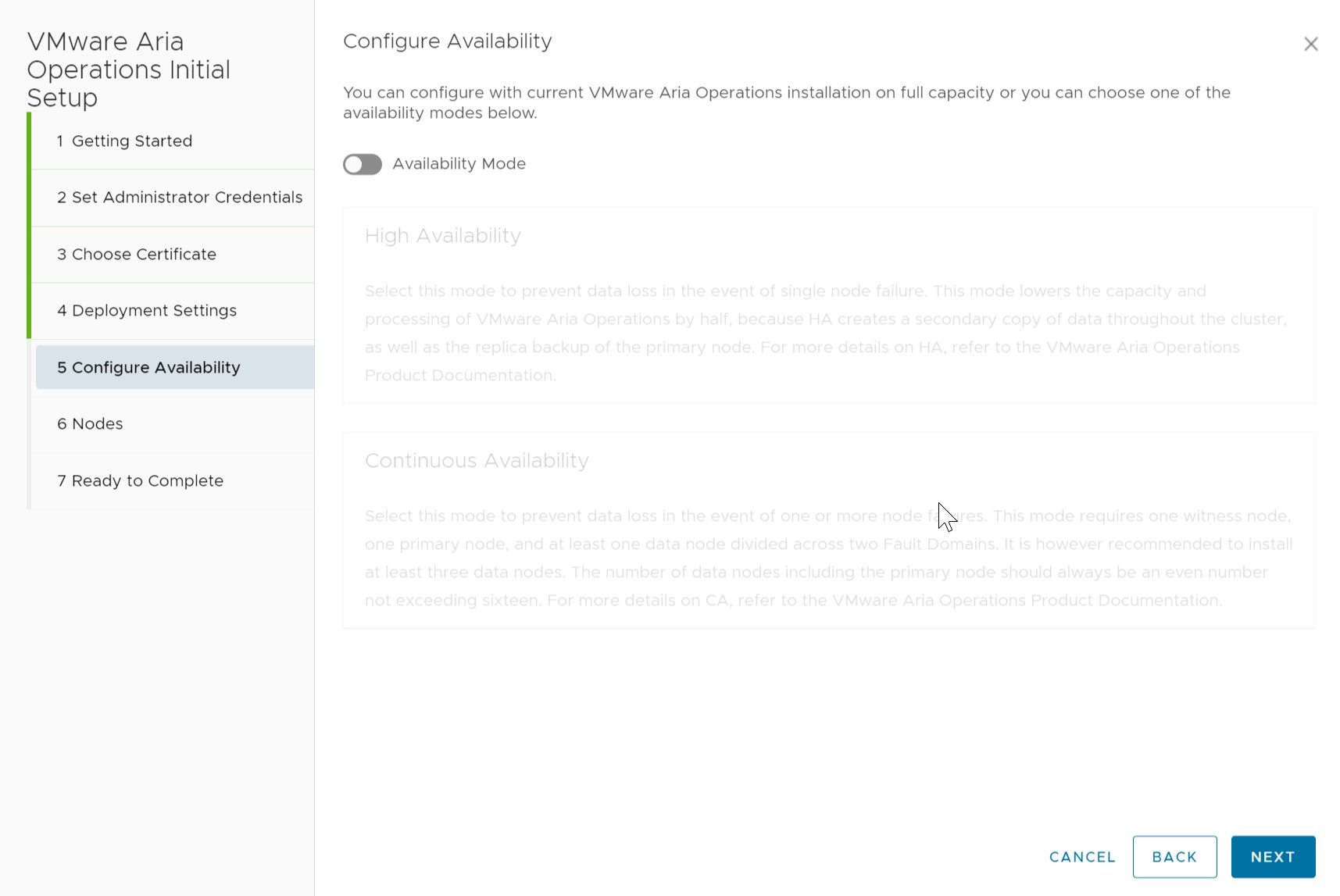

select the desired availability for your organization. In this example this step was skipped.
select Next

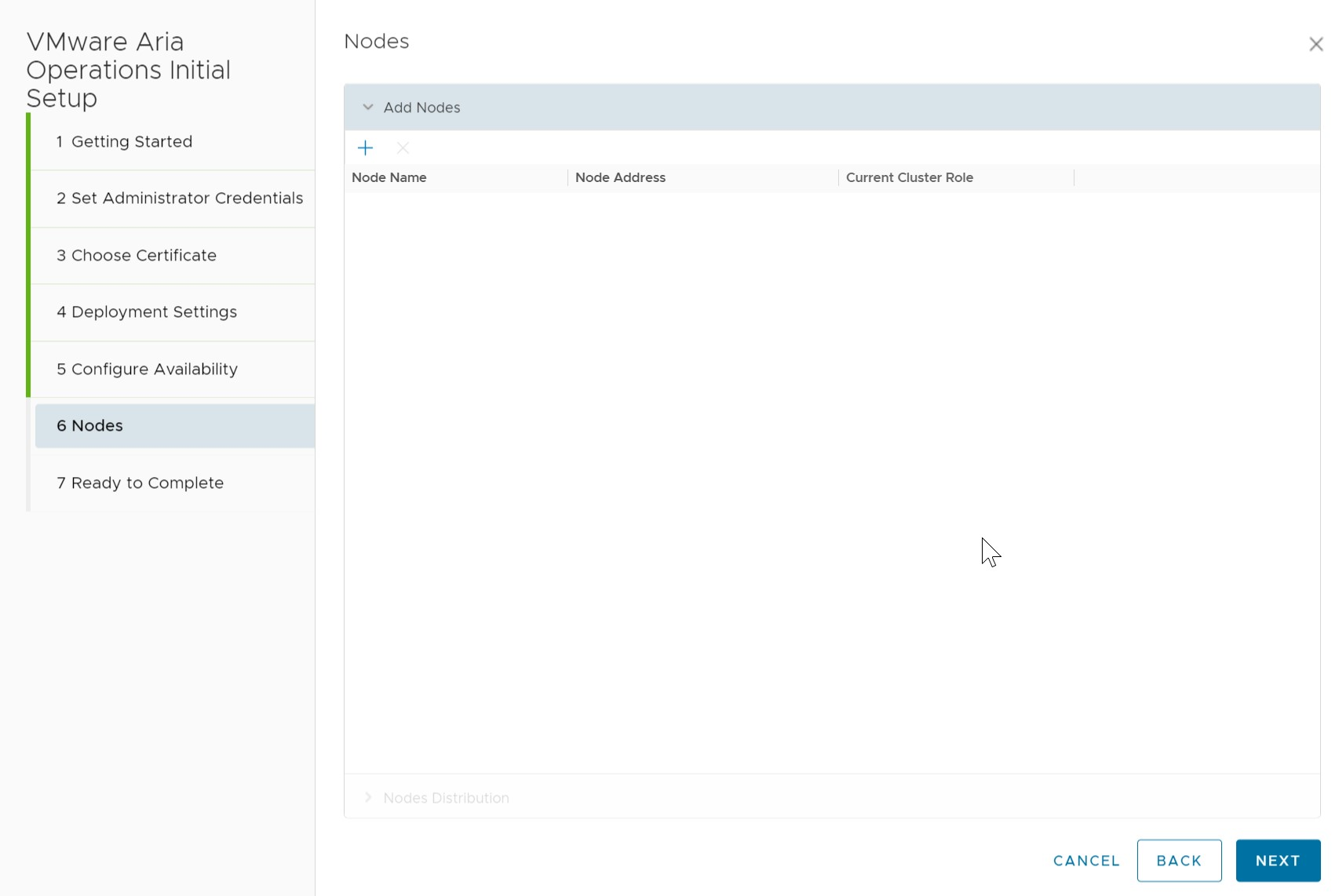

add additional nodes, if needed. In this example this step was skipped.
select Next

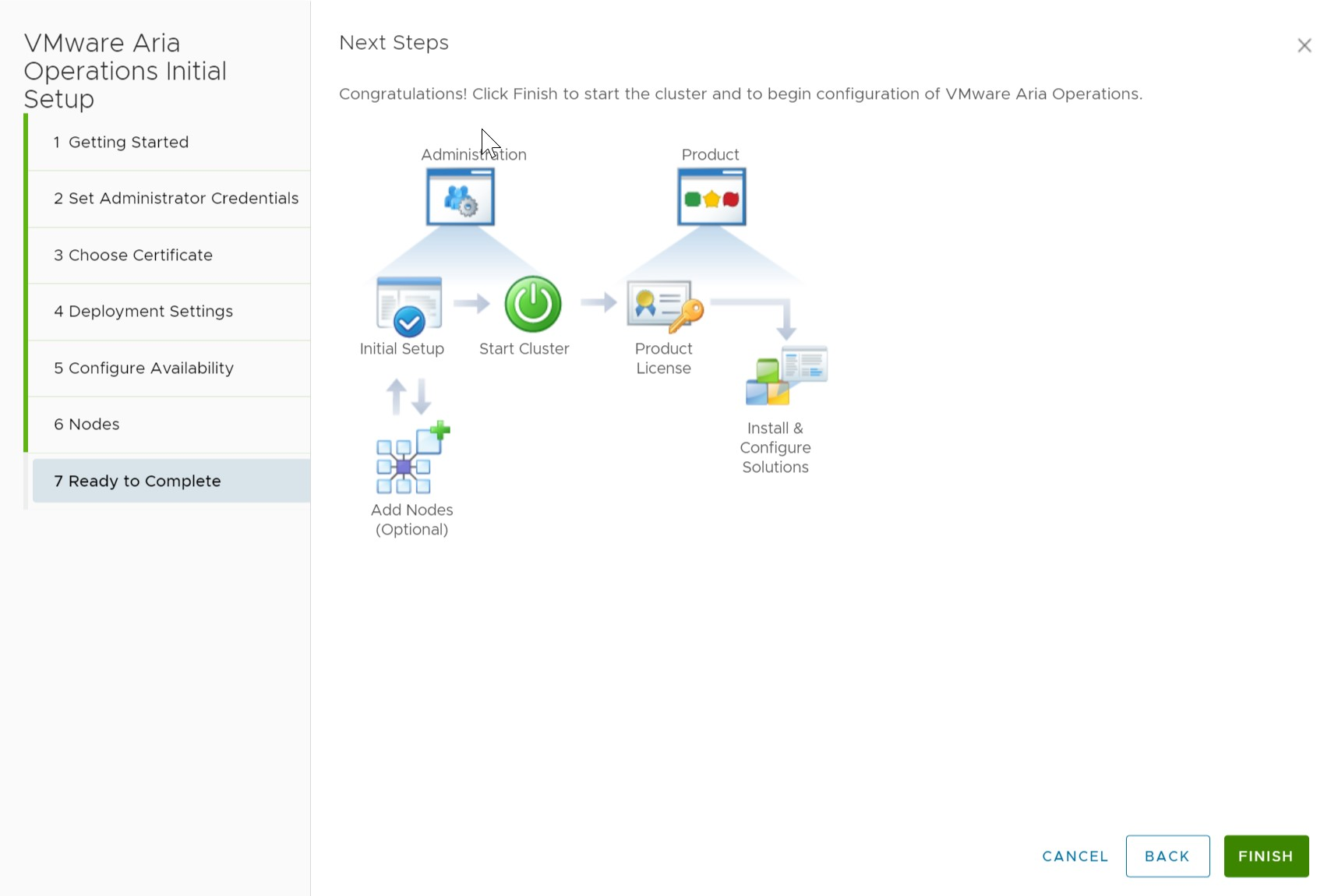

select Finish
Start VMware Aria

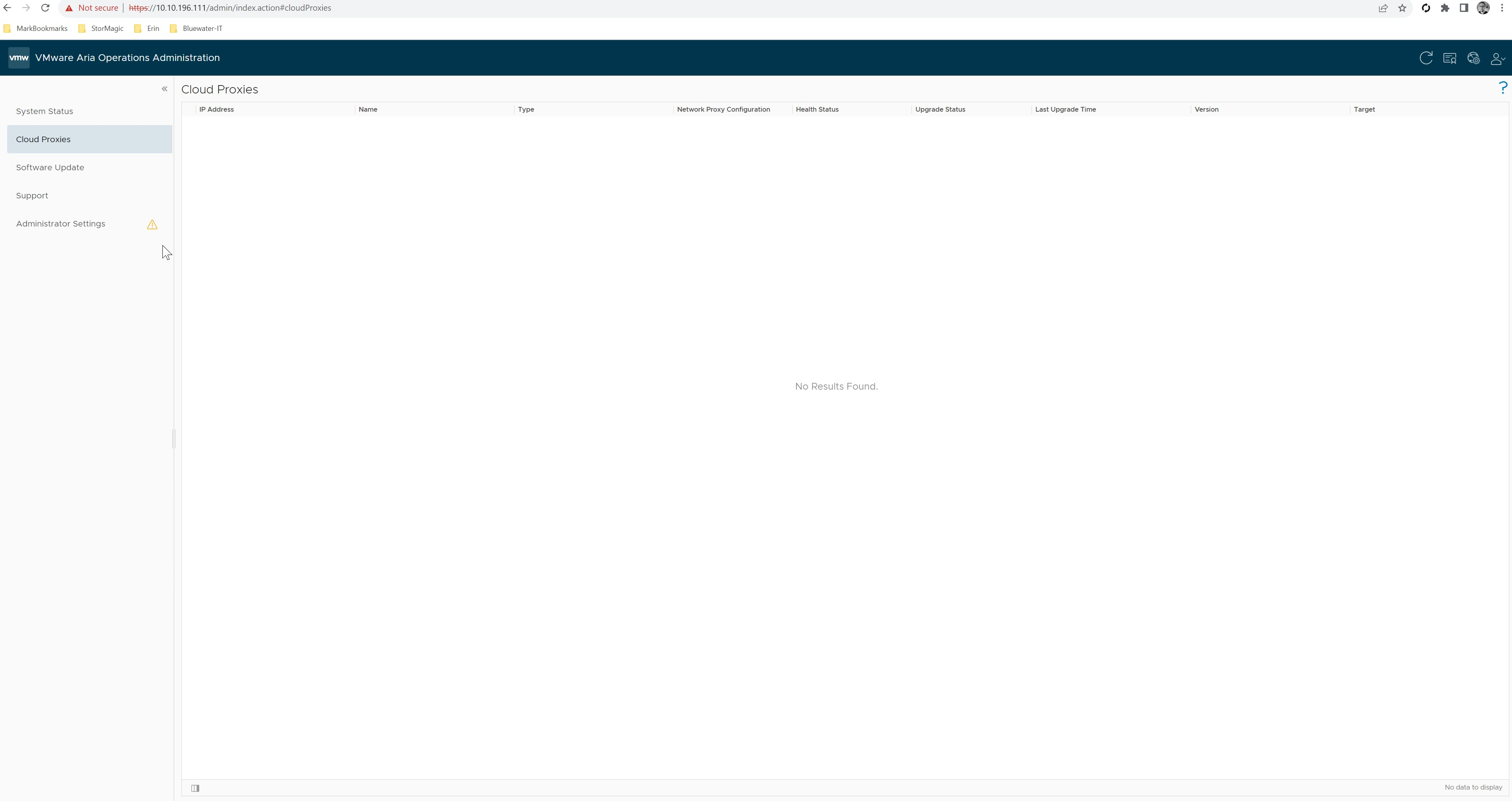

Add any cloud Proxy information

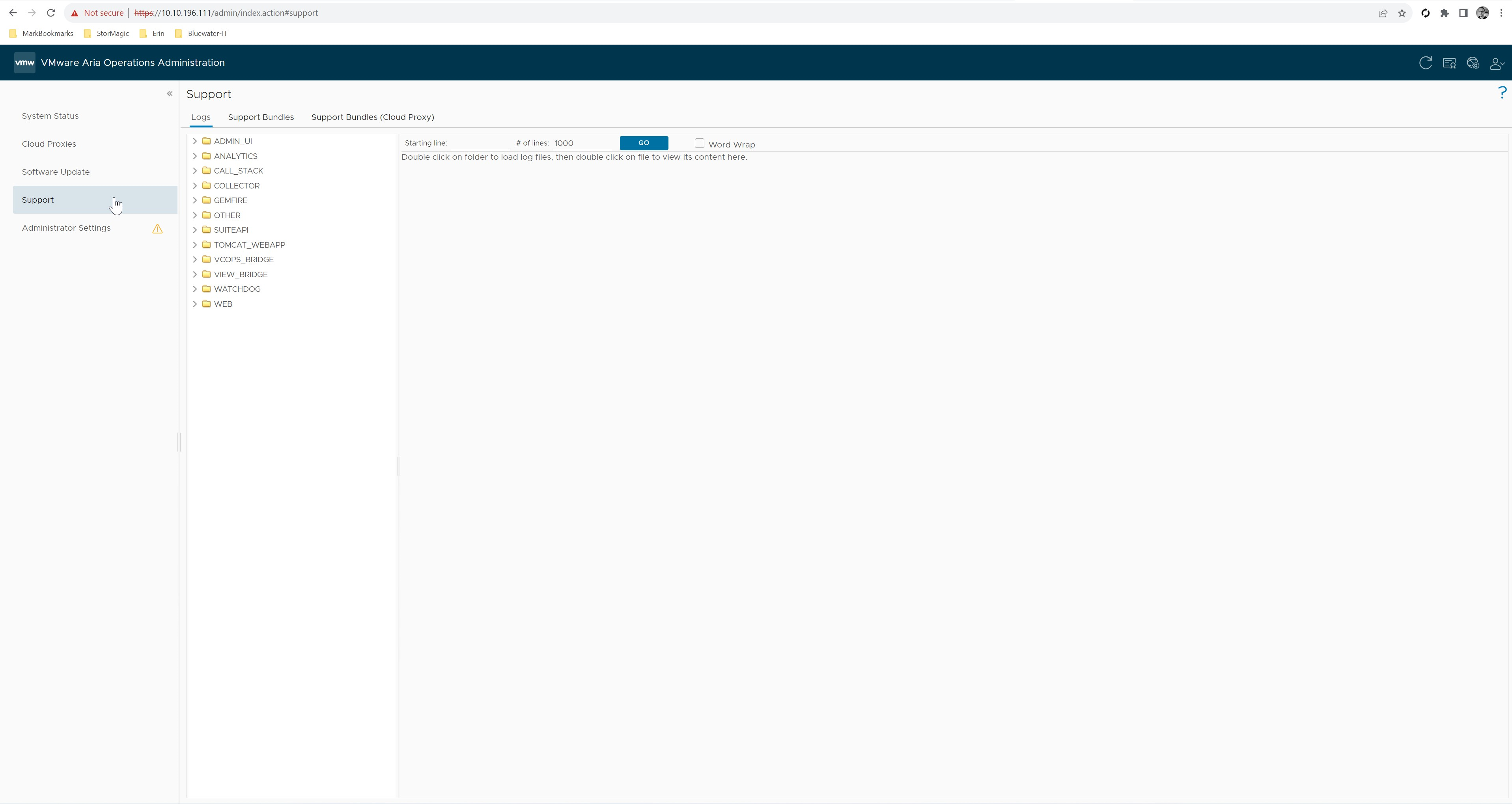

Support tab to load or view support files

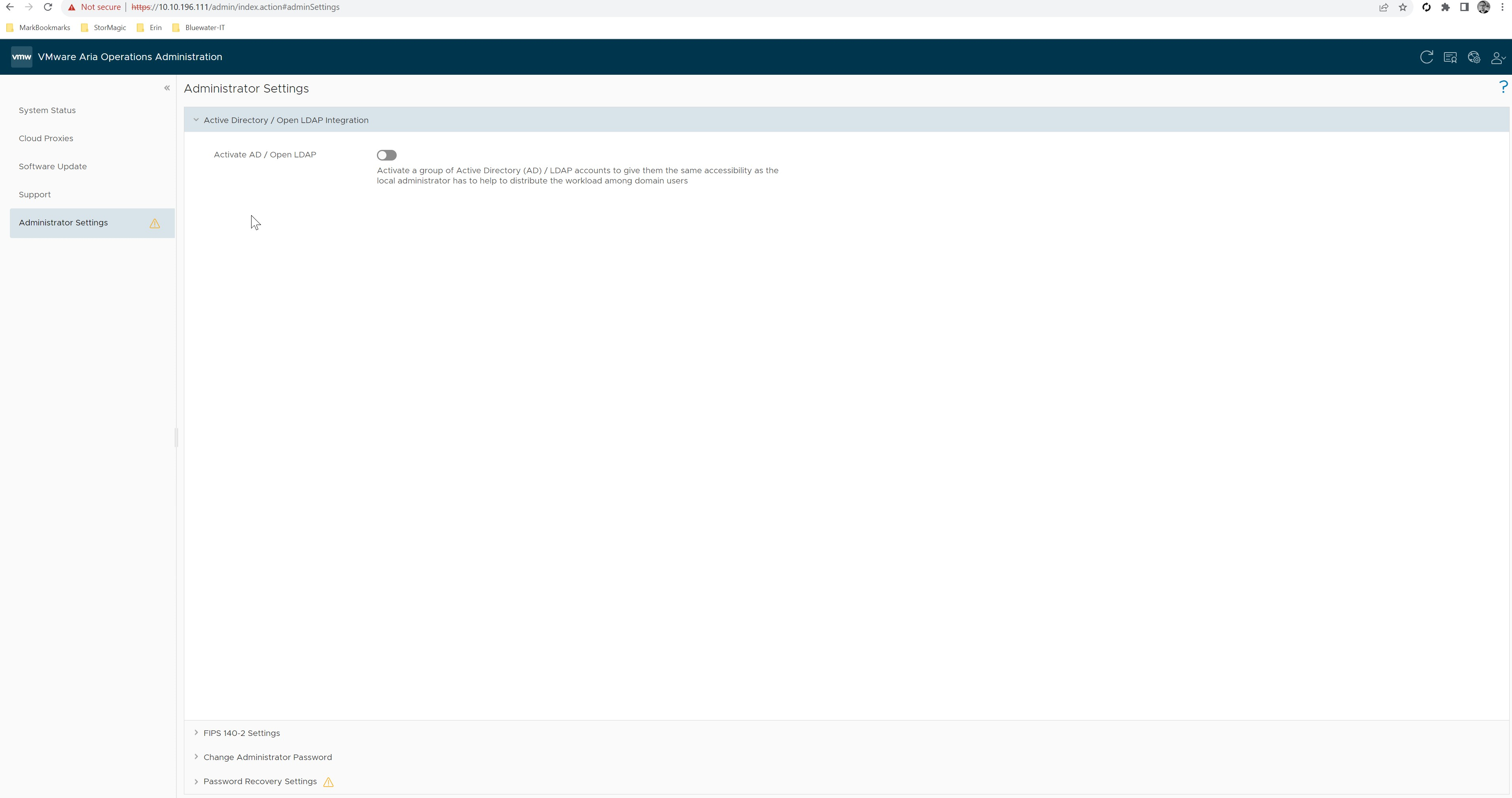

Add AD/LDAP users if desired. In this example the local administrator was used.

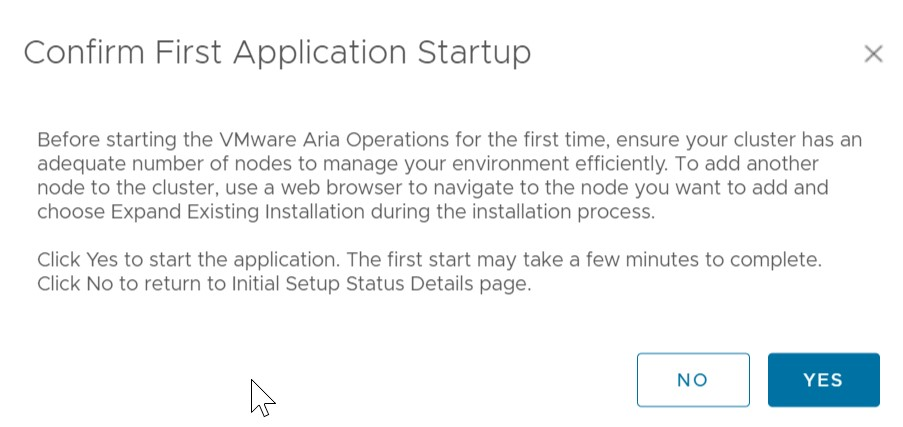

select YES to start Aria operations

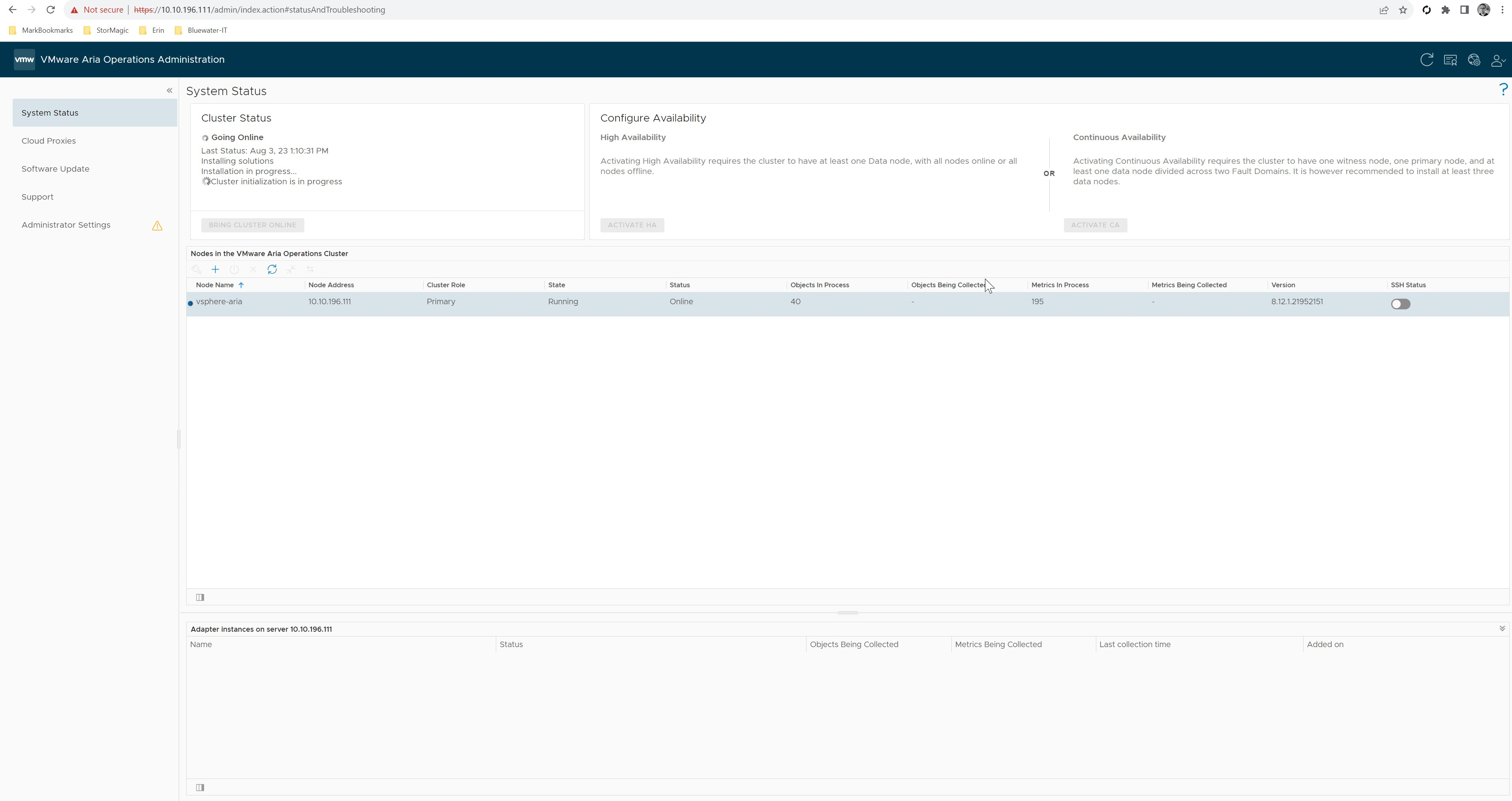

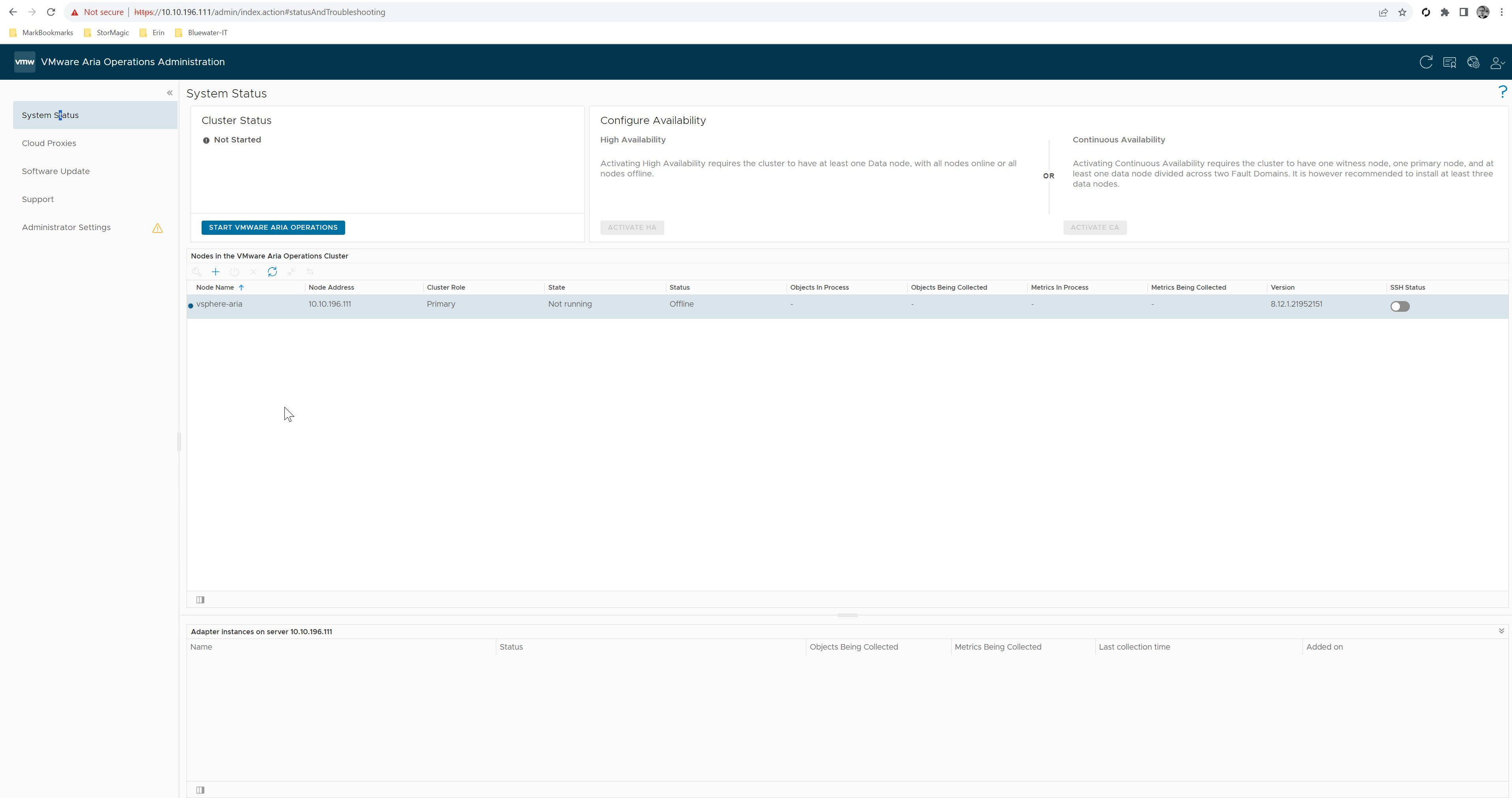

The status of cluster will take several minutes to populate dependent upon the size of the environment.

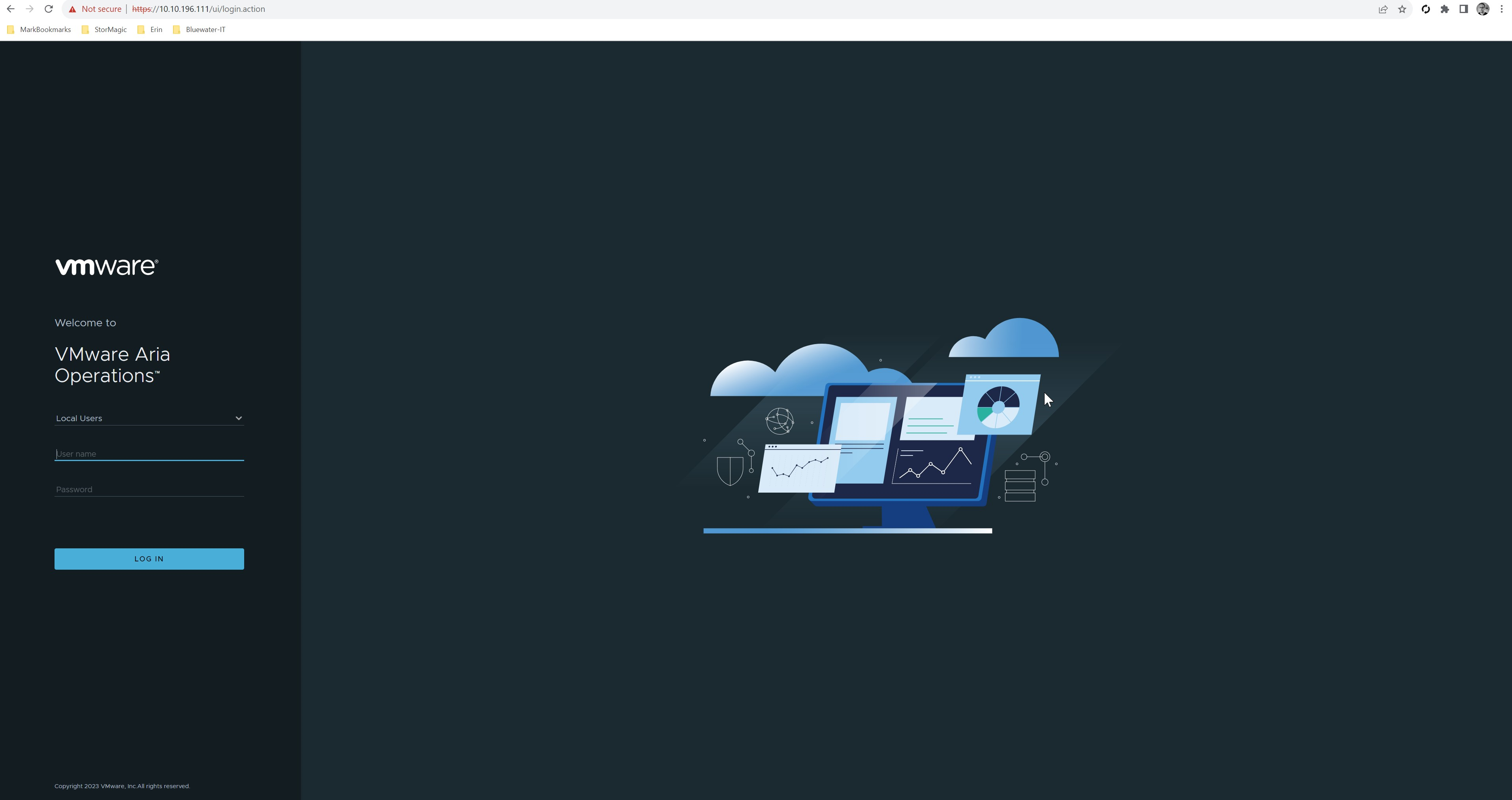

Log into Aria

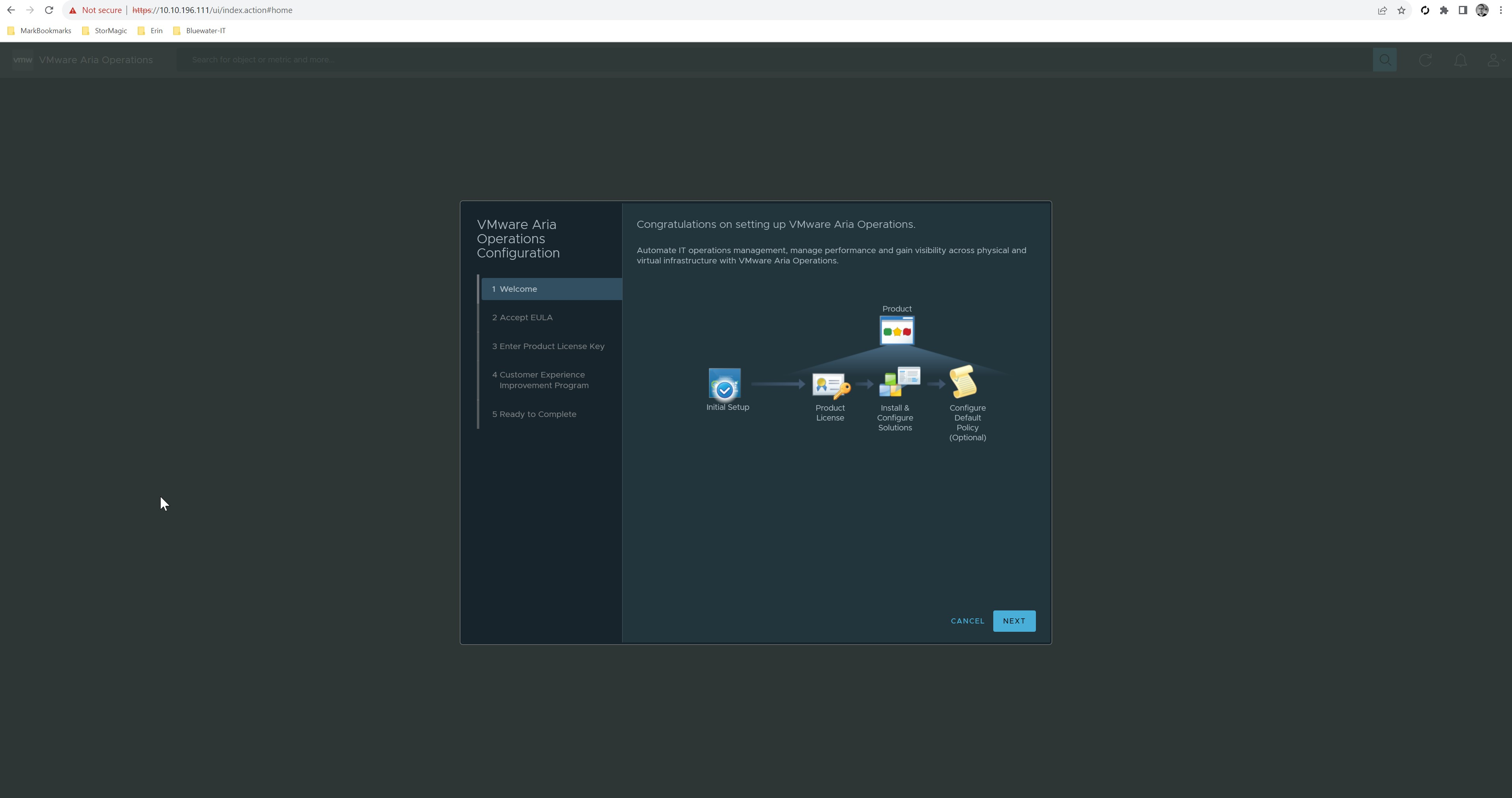

Aria Configuration wizard will start. select Next.

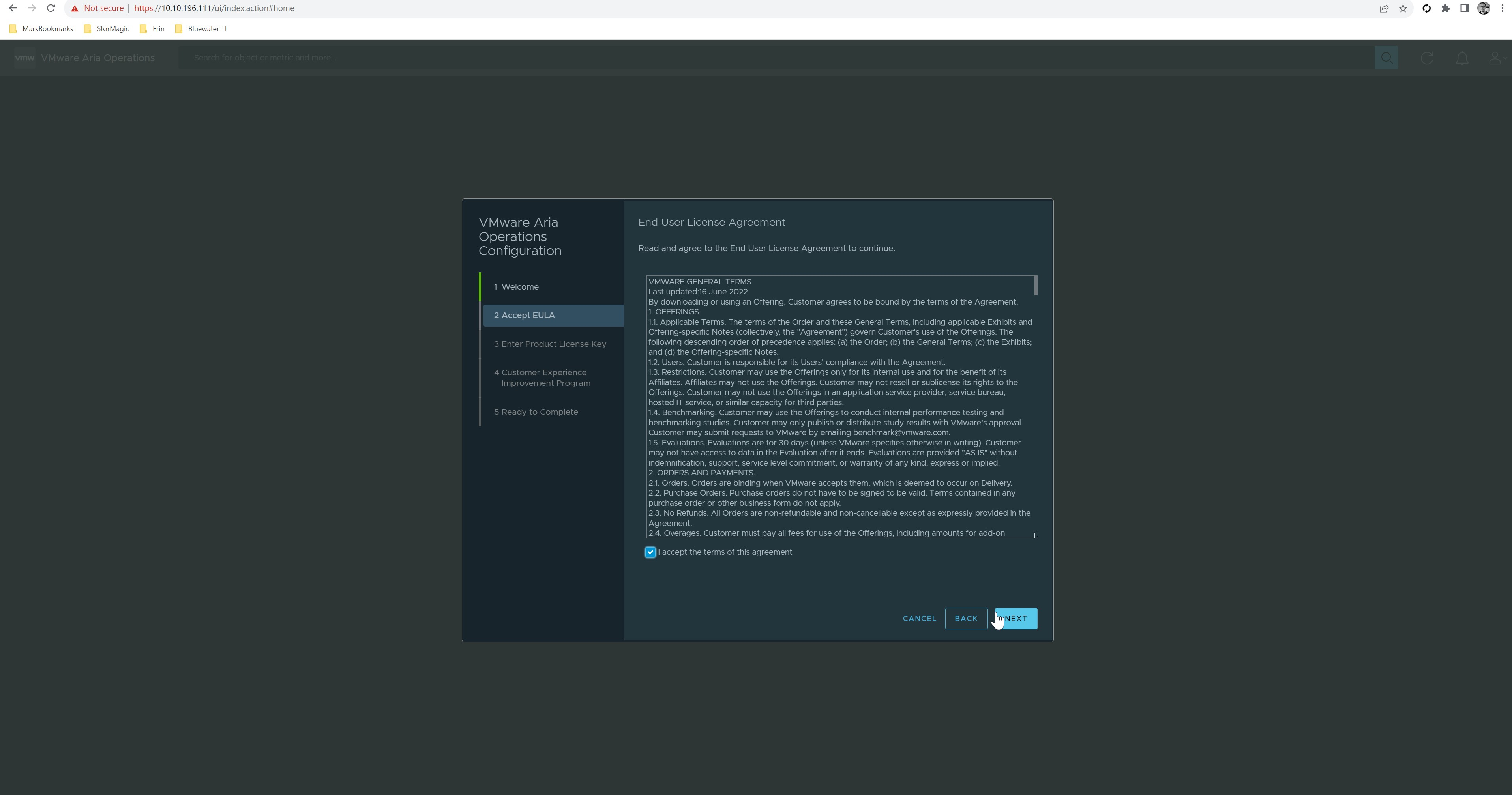

Accept License Agreement

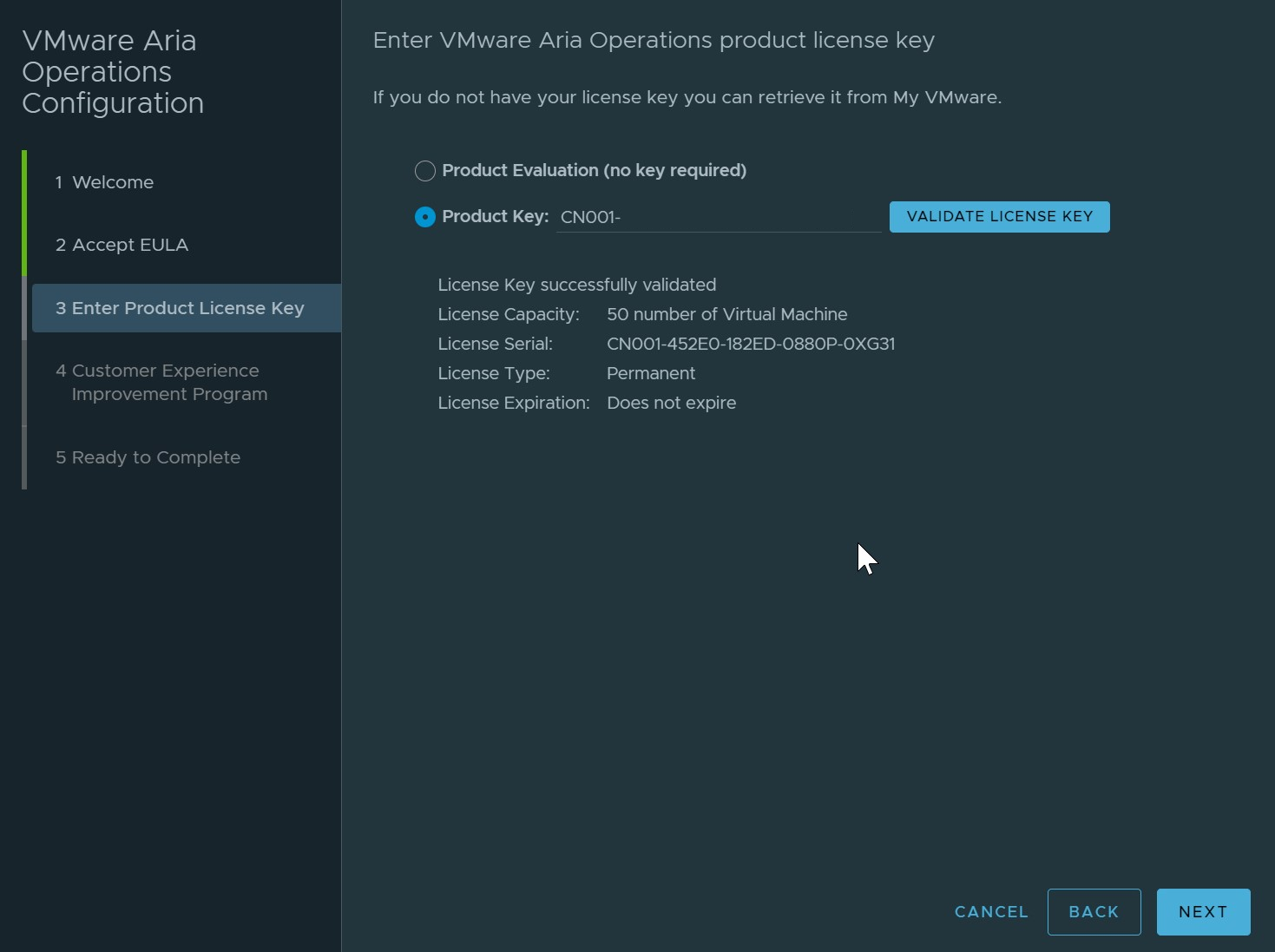

Select License Model

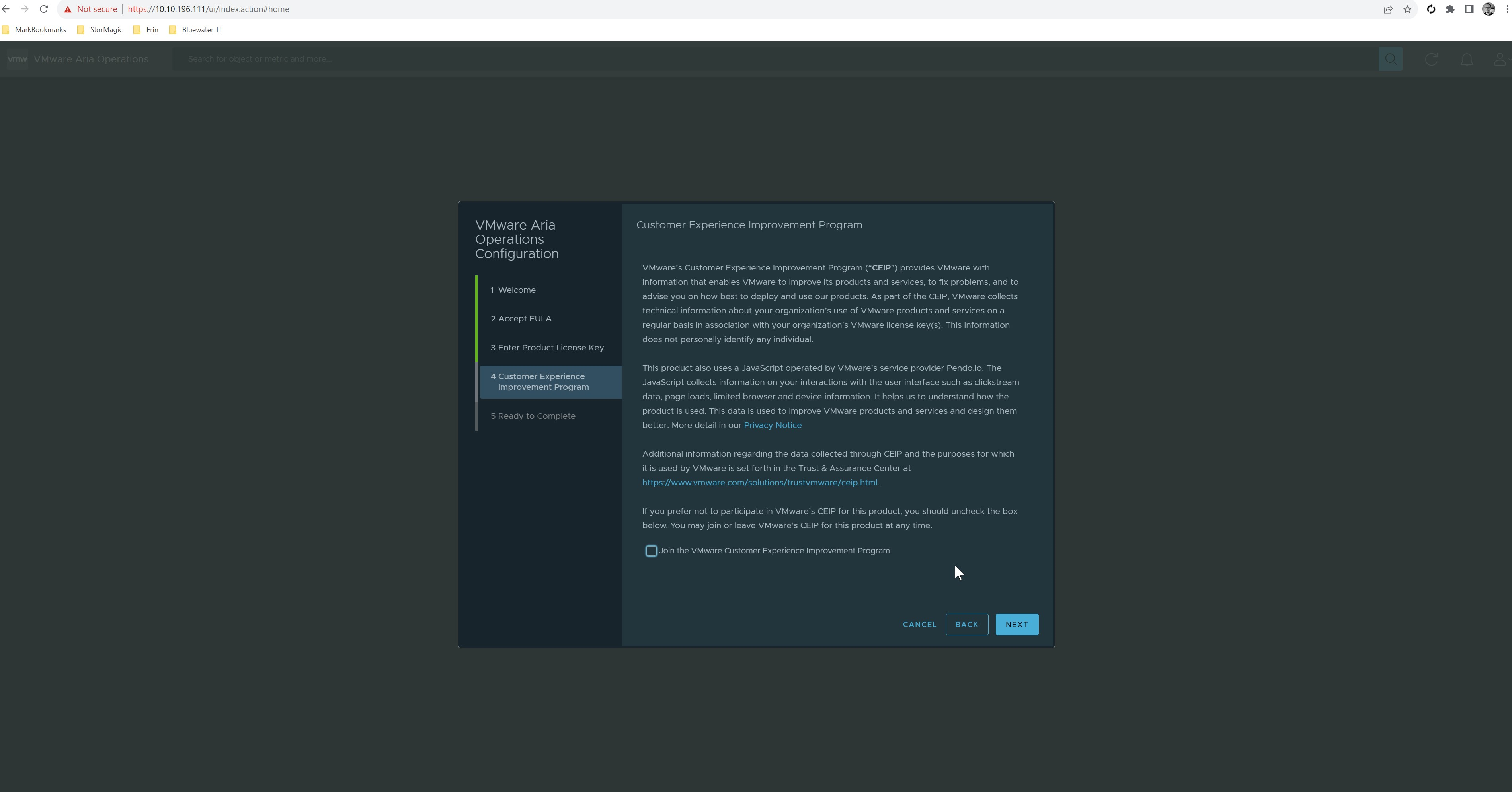

Select if desired to join the VMware Customer Experience Program

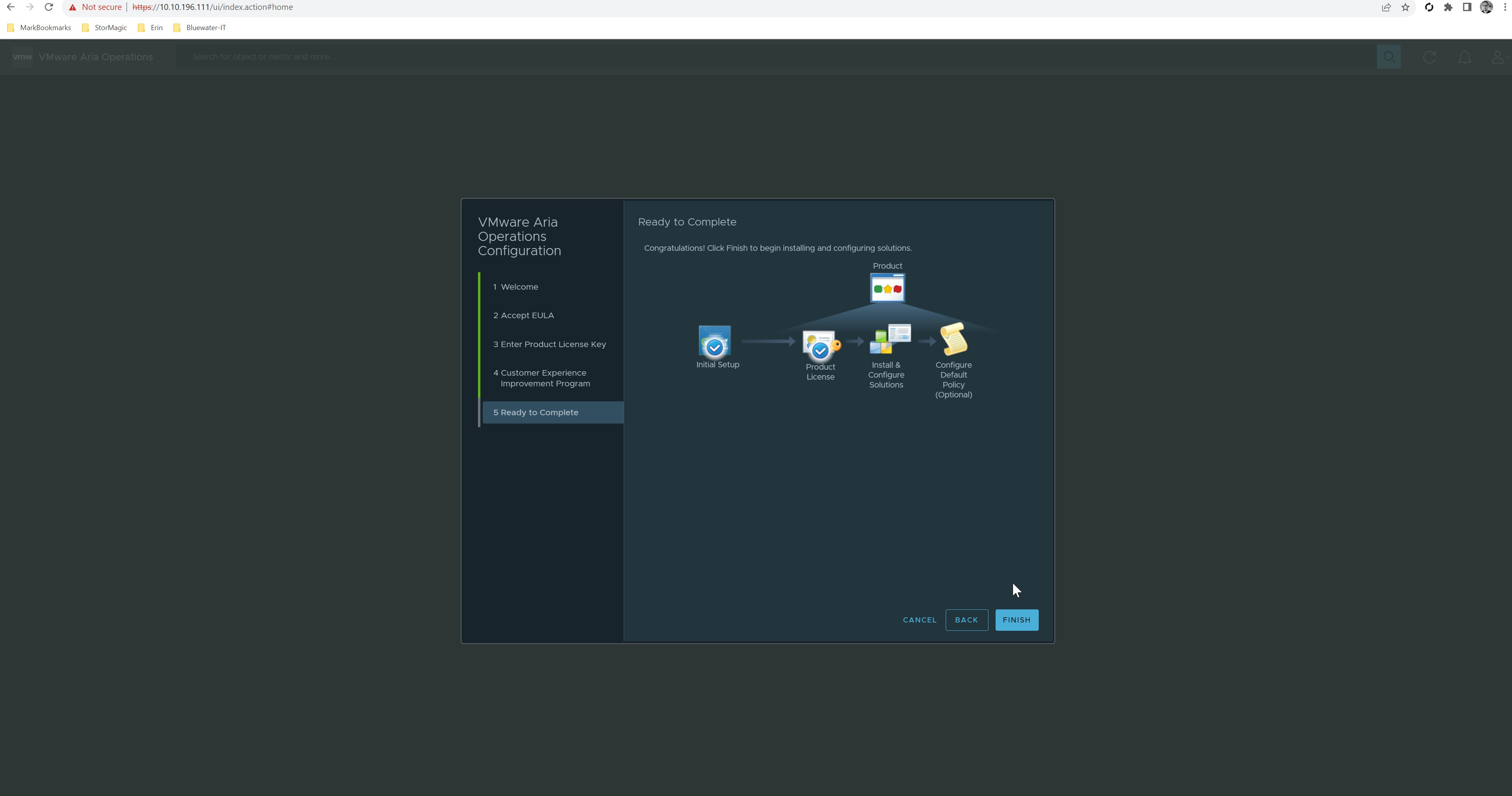

Select Next to complete configuration

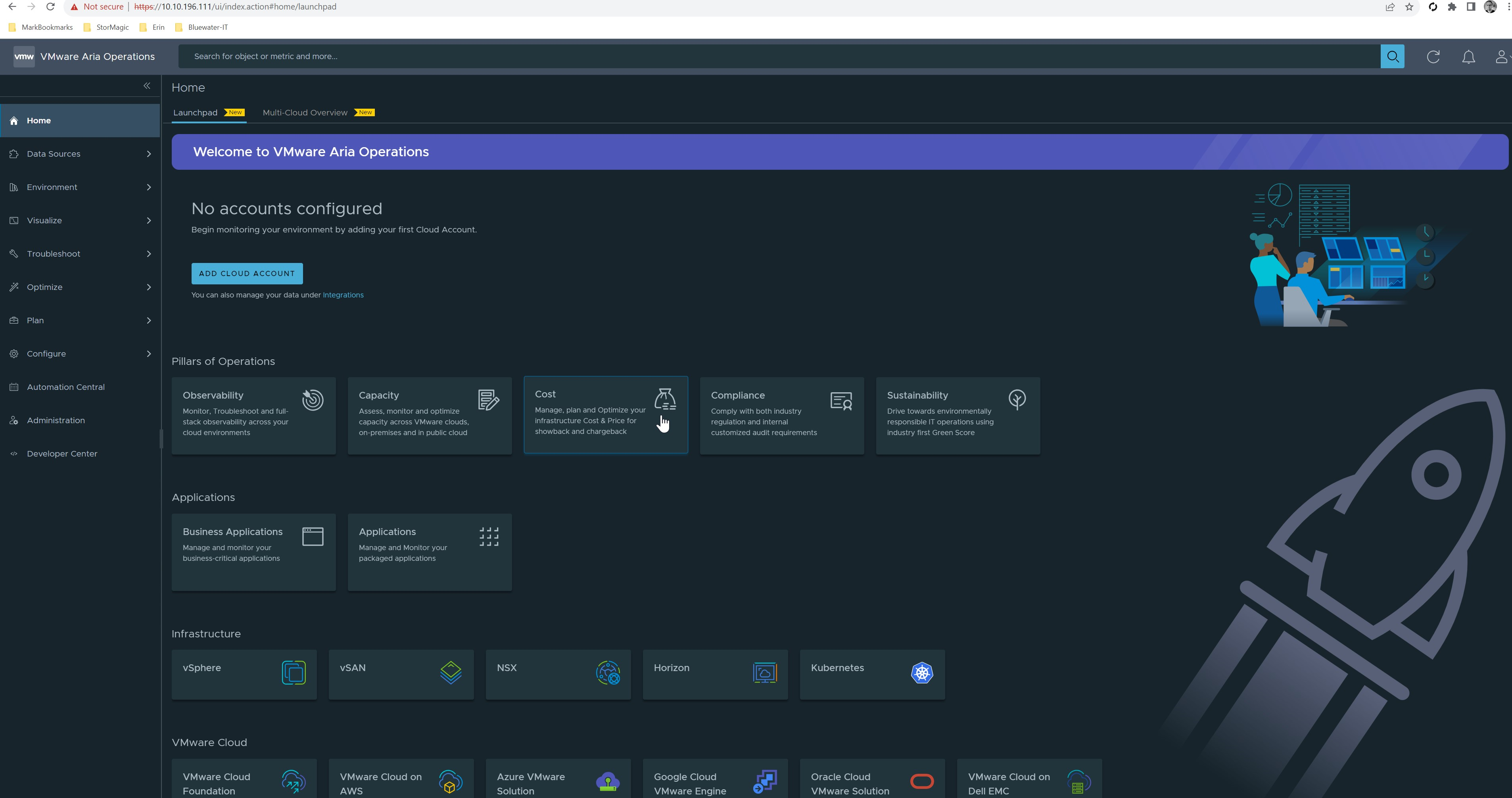

Aria Operations Welcome screen will display, select integrations.

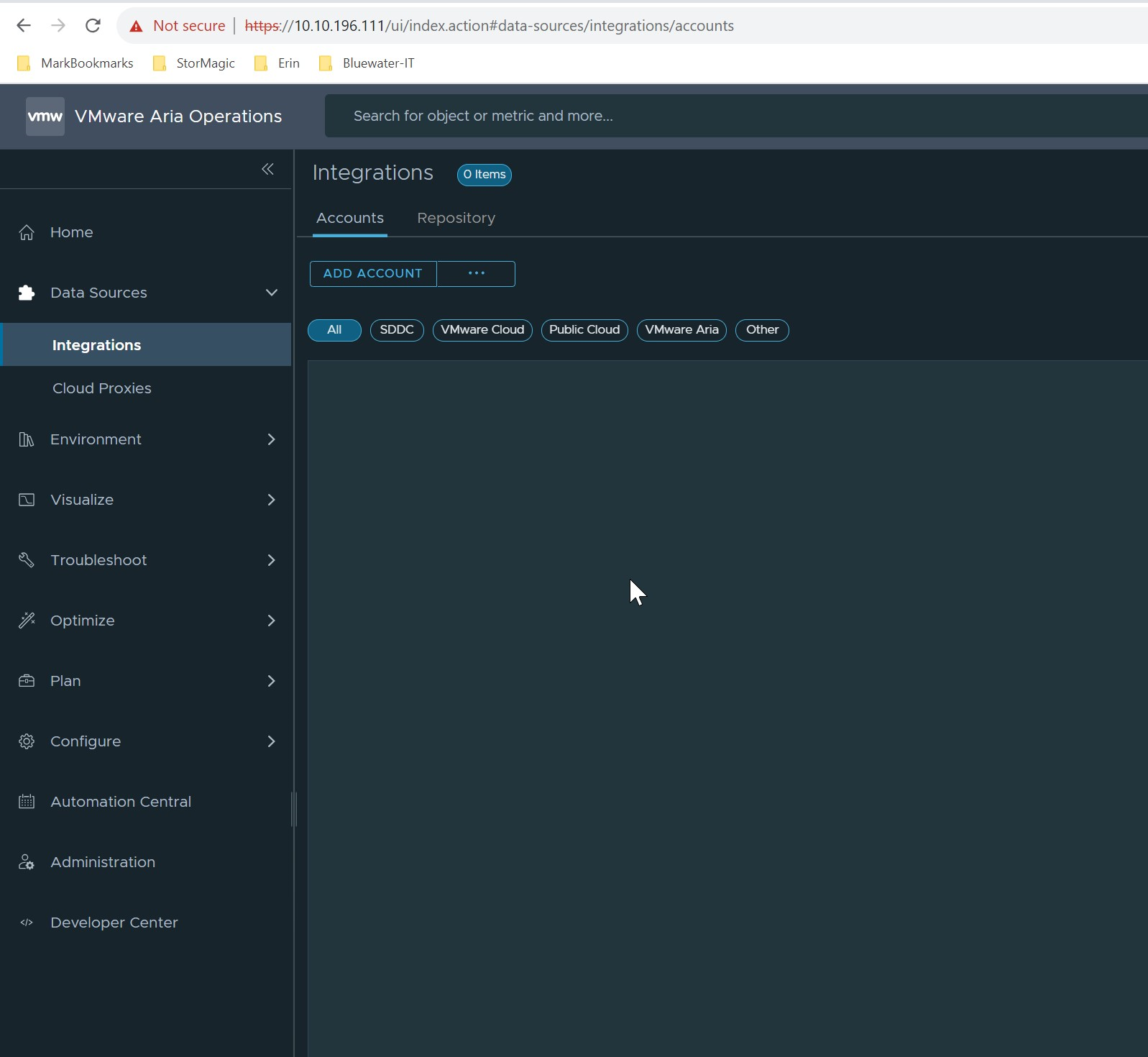

Select Accounts > All

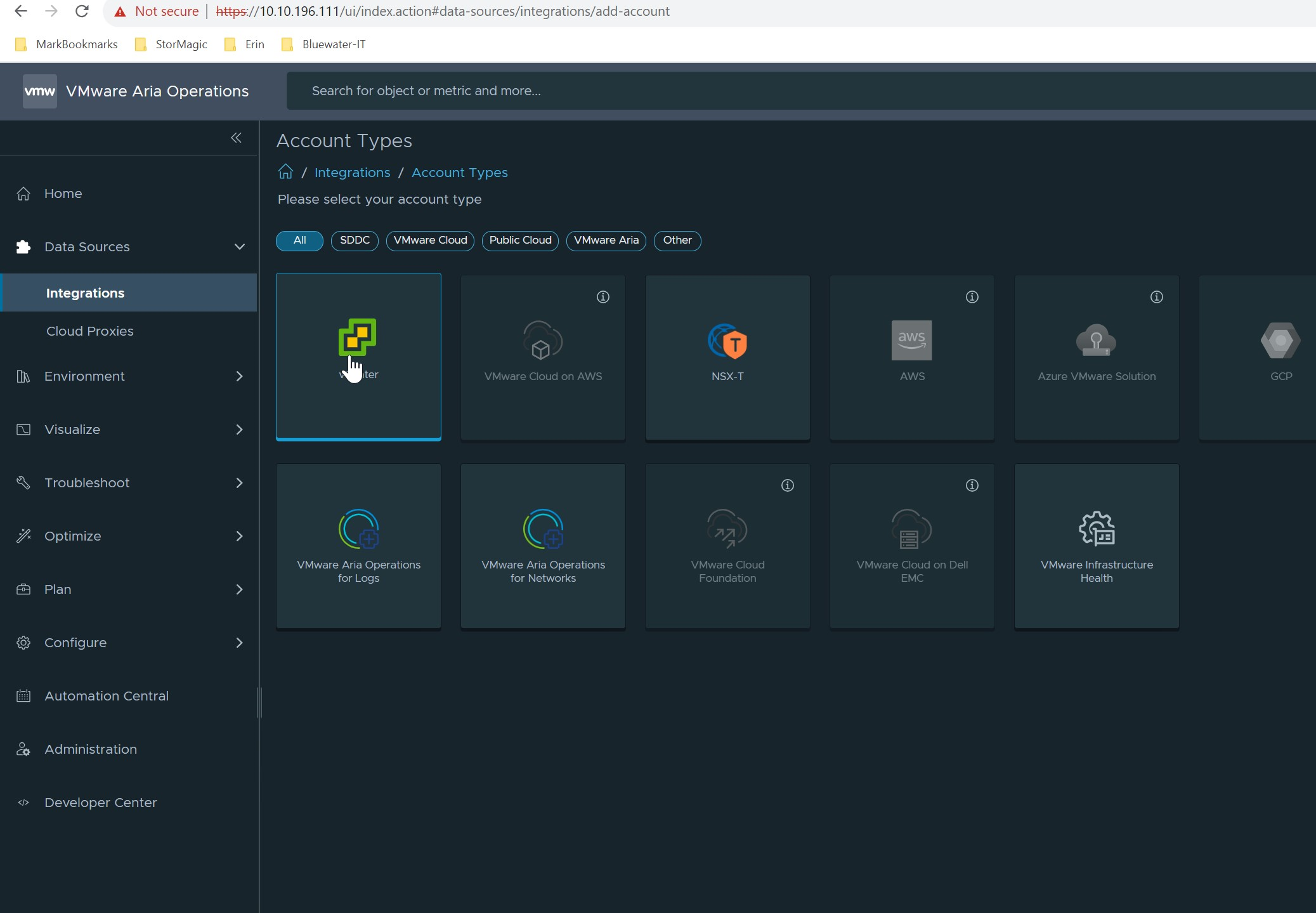

Select vCenter

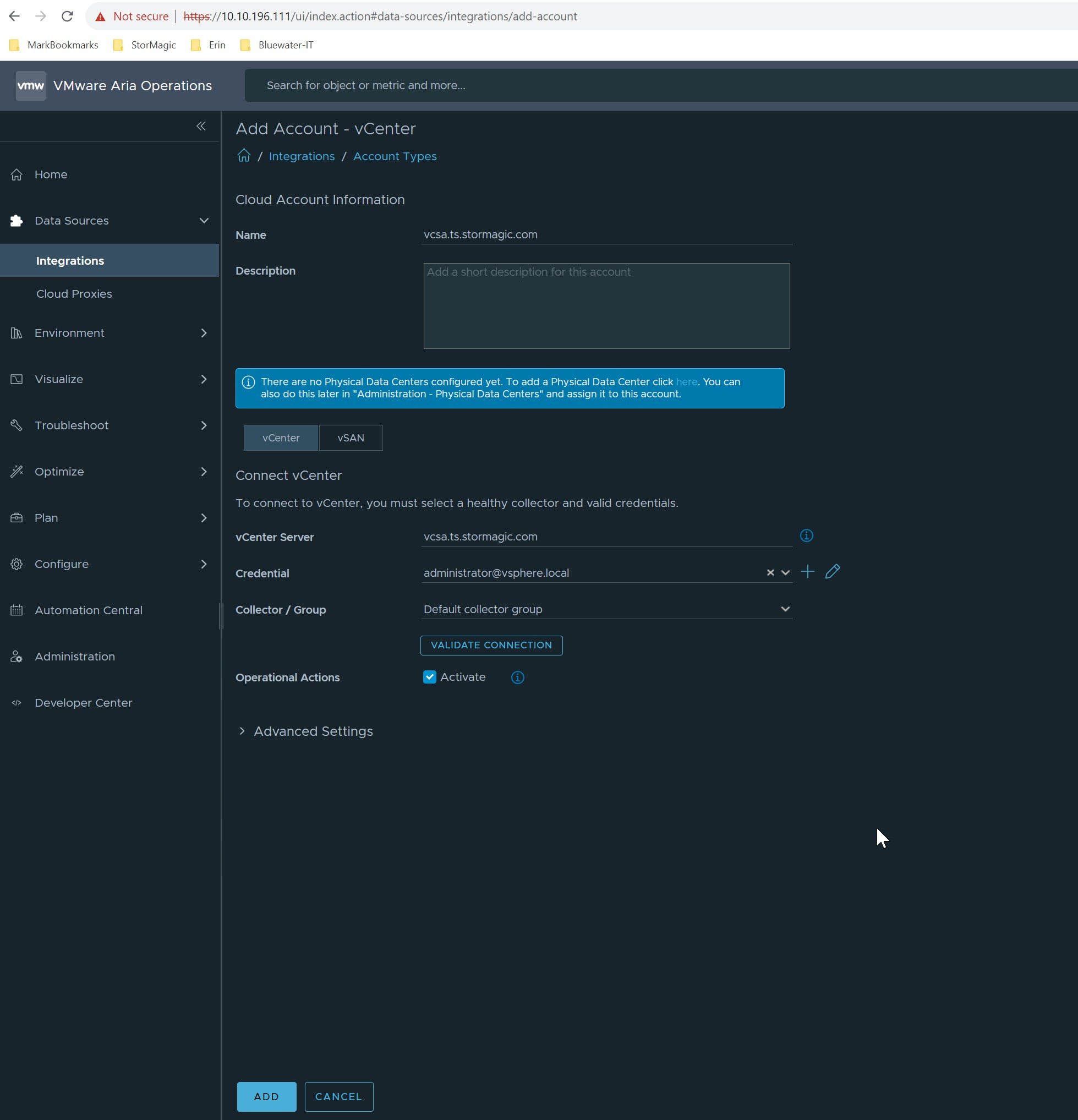

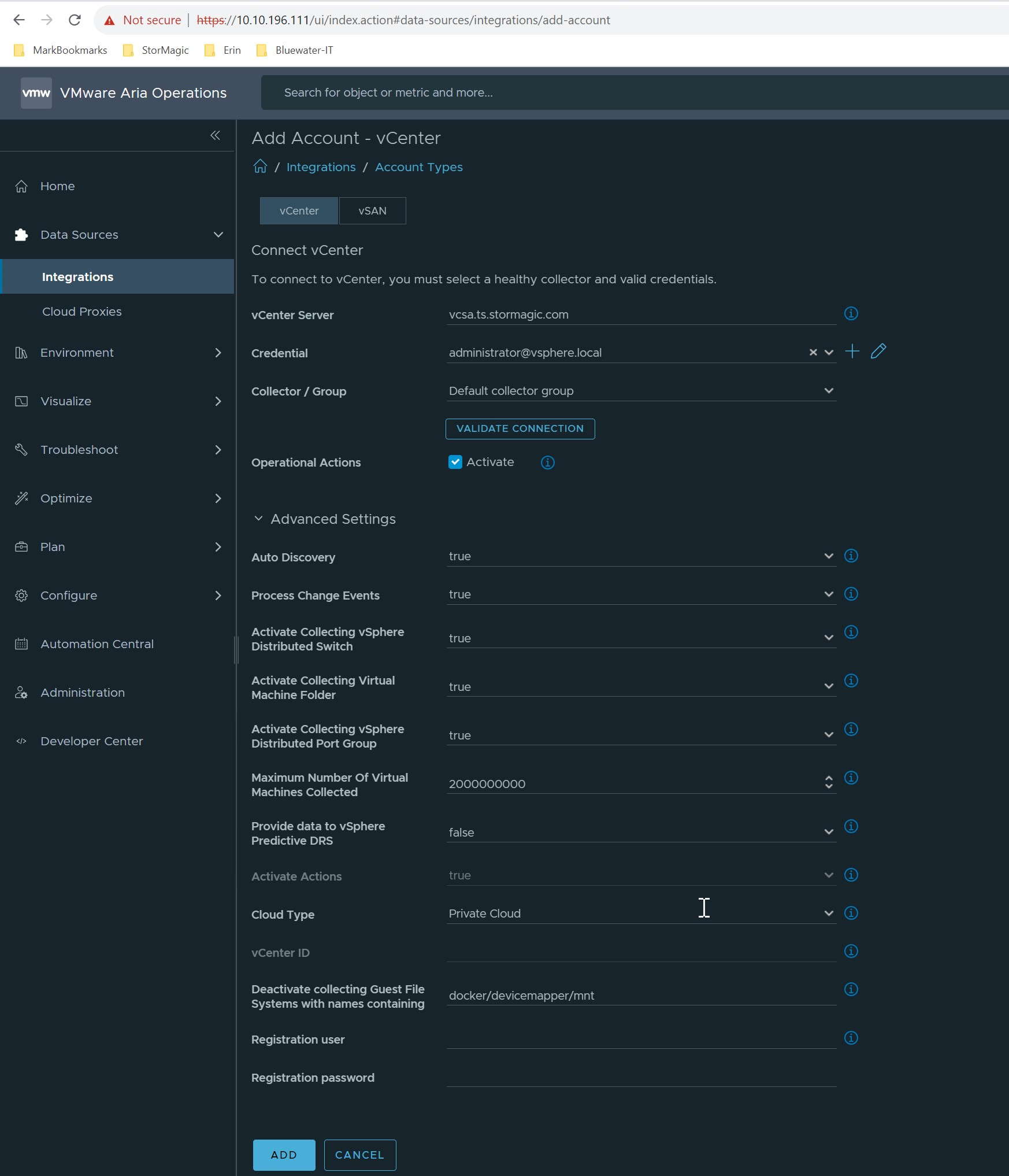

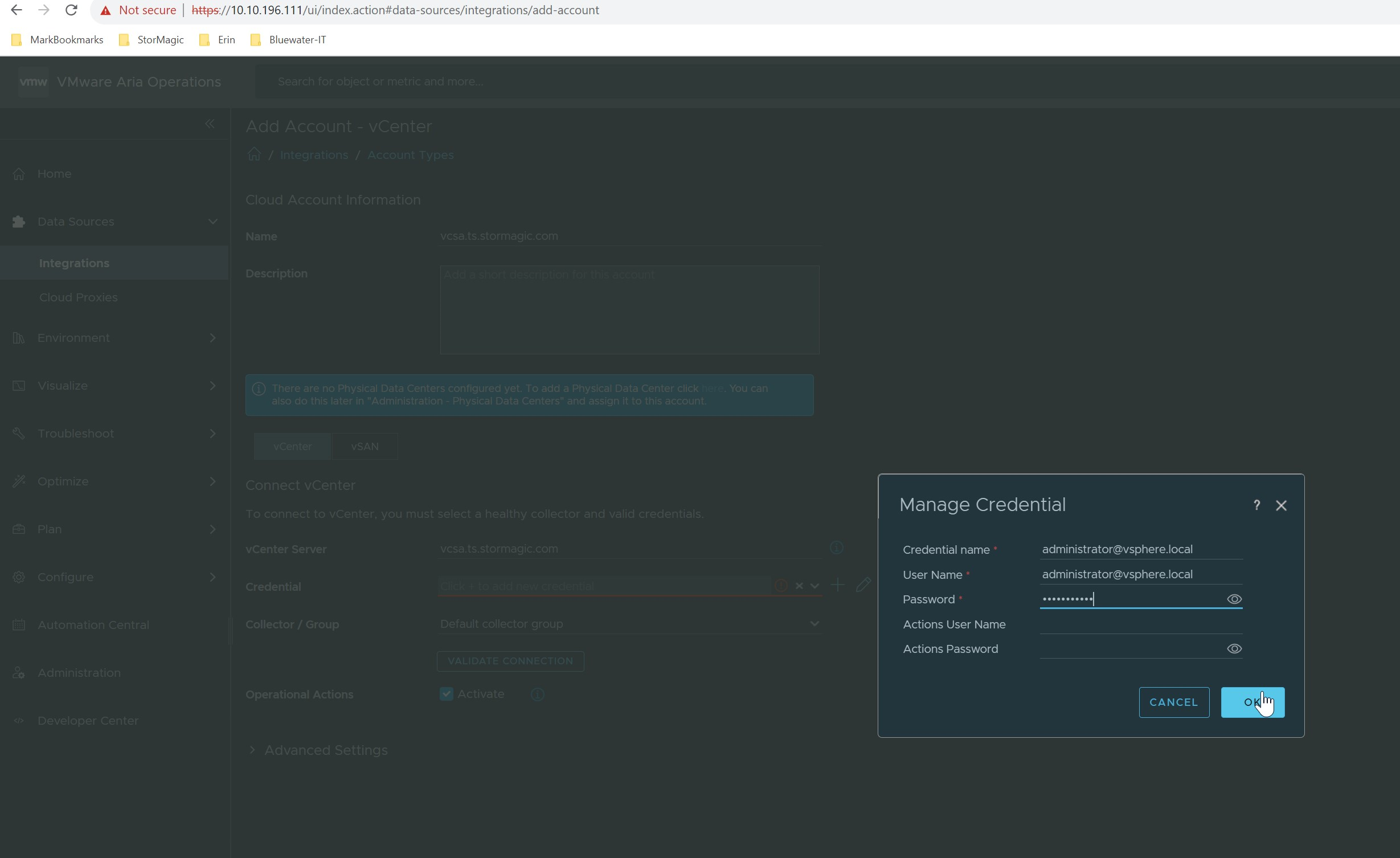

Add vCenter credentials
Verify vCenter credential and select add
Add vCenter, select ADD

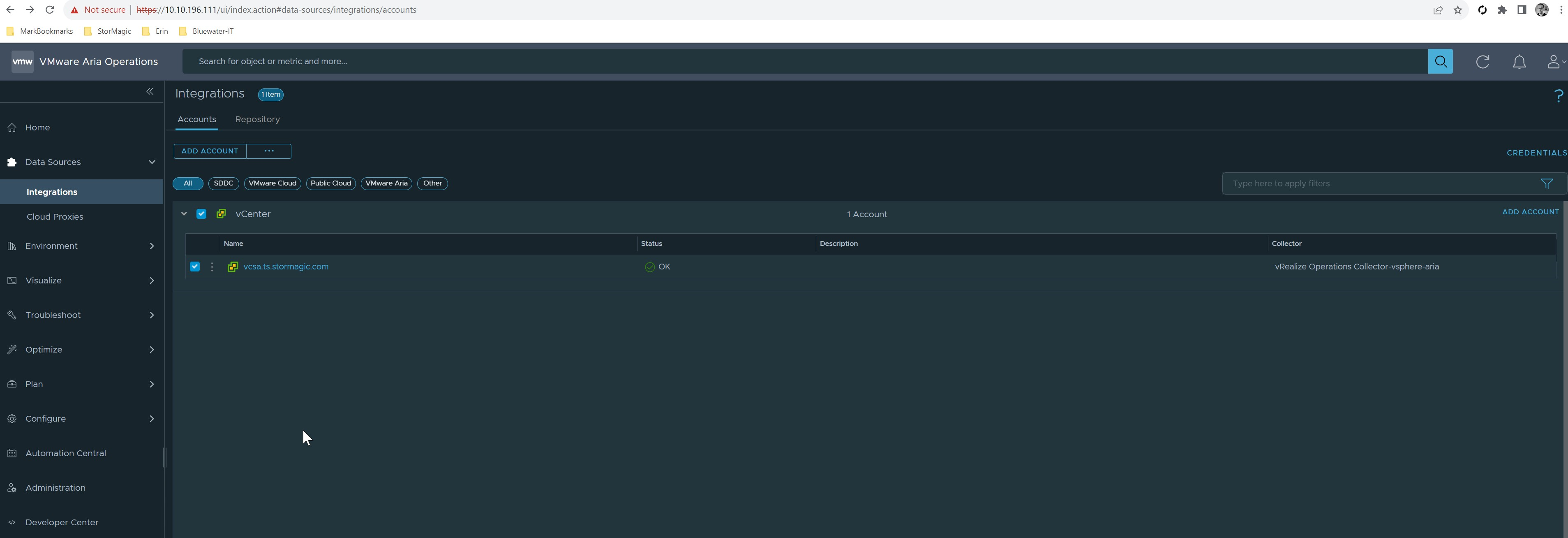

Added vCenter will shown, select vCenter to manage, by selecting vCenter hyperlink

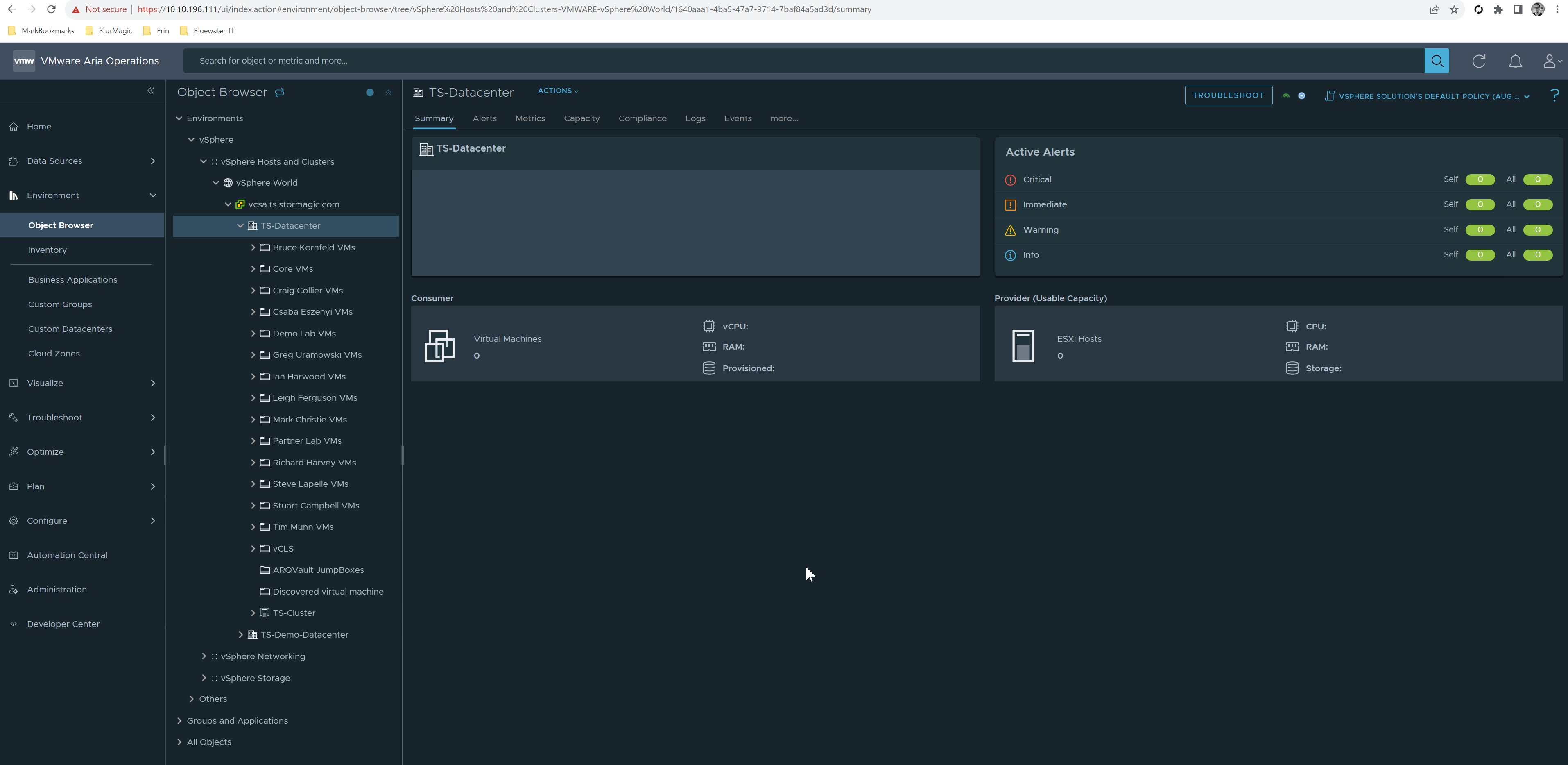

Open enviroments tab>Object Browser and select your Data Center

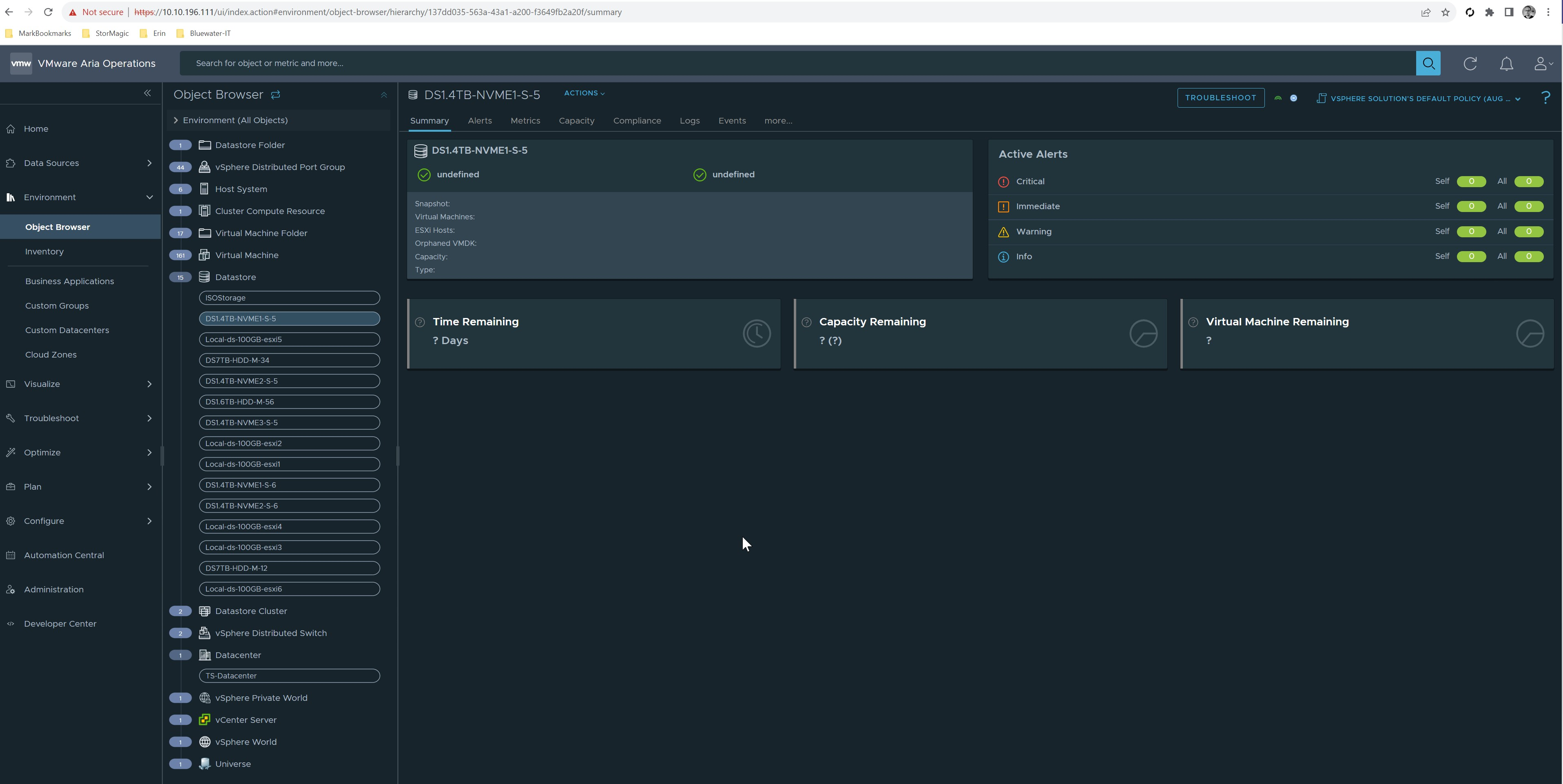

Select the Datastore for information

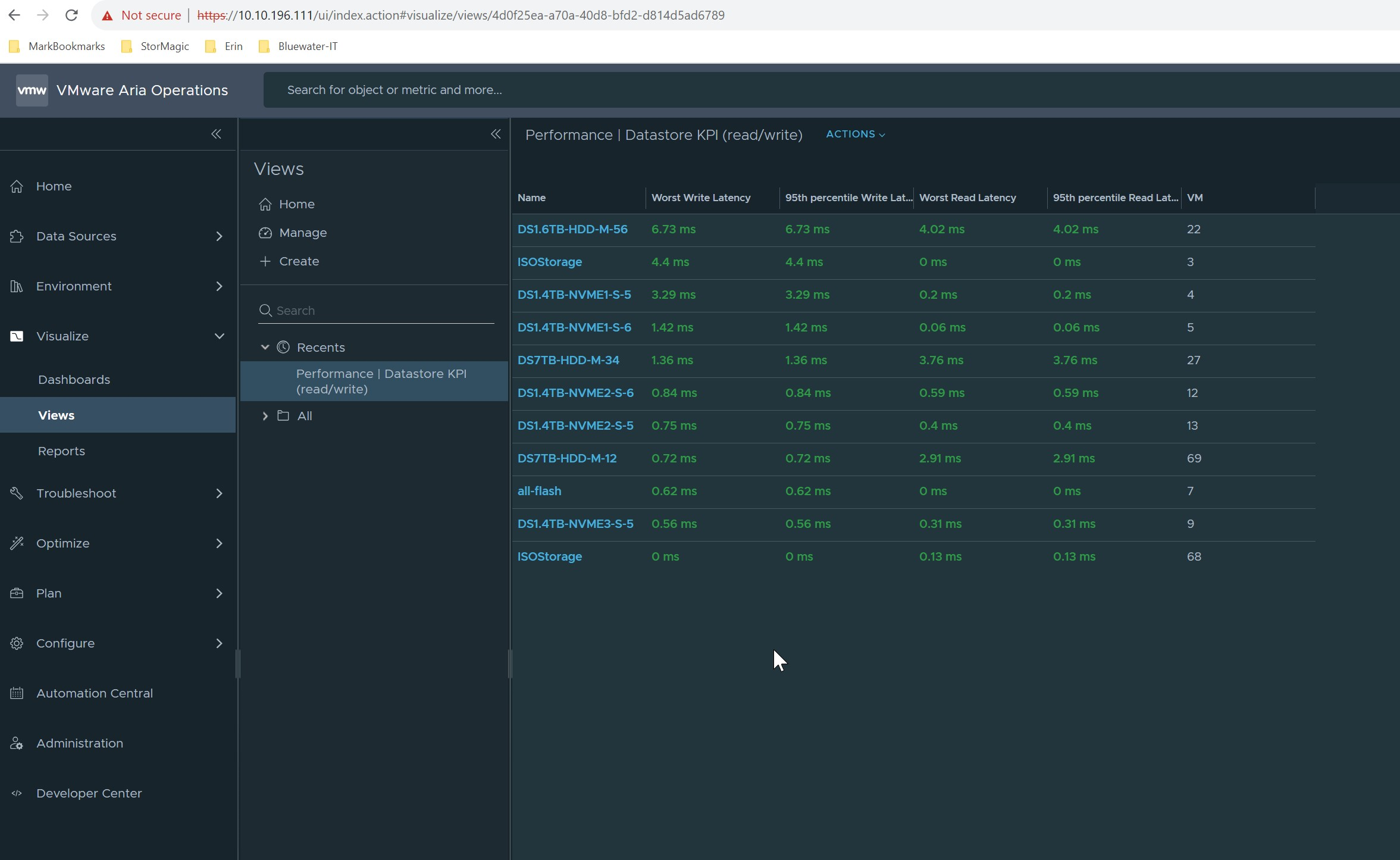

Under Visualize select view to view performance of datastores, by selecting the relevant object.

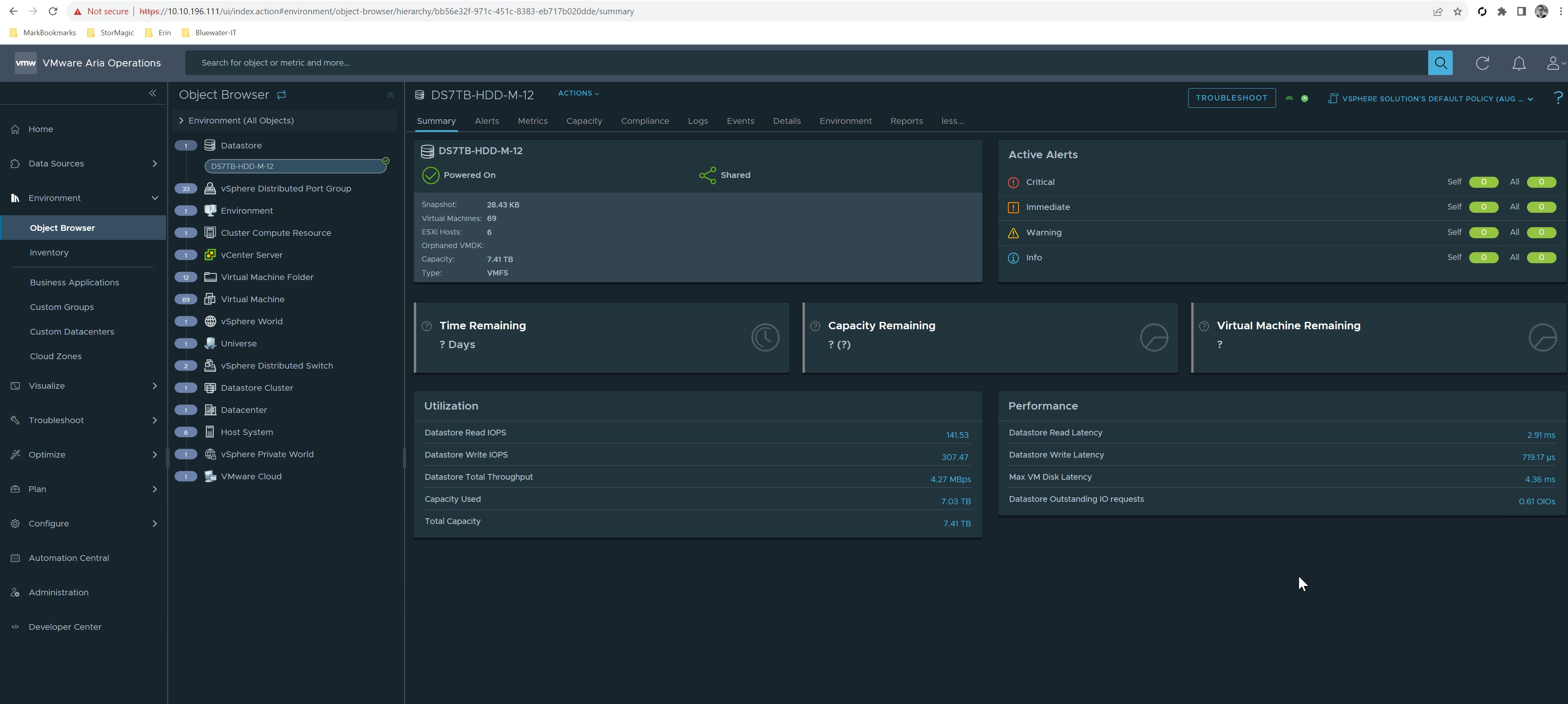

Information for Datastore will be populated, this may take a few minutes if this is the first time running Aria.

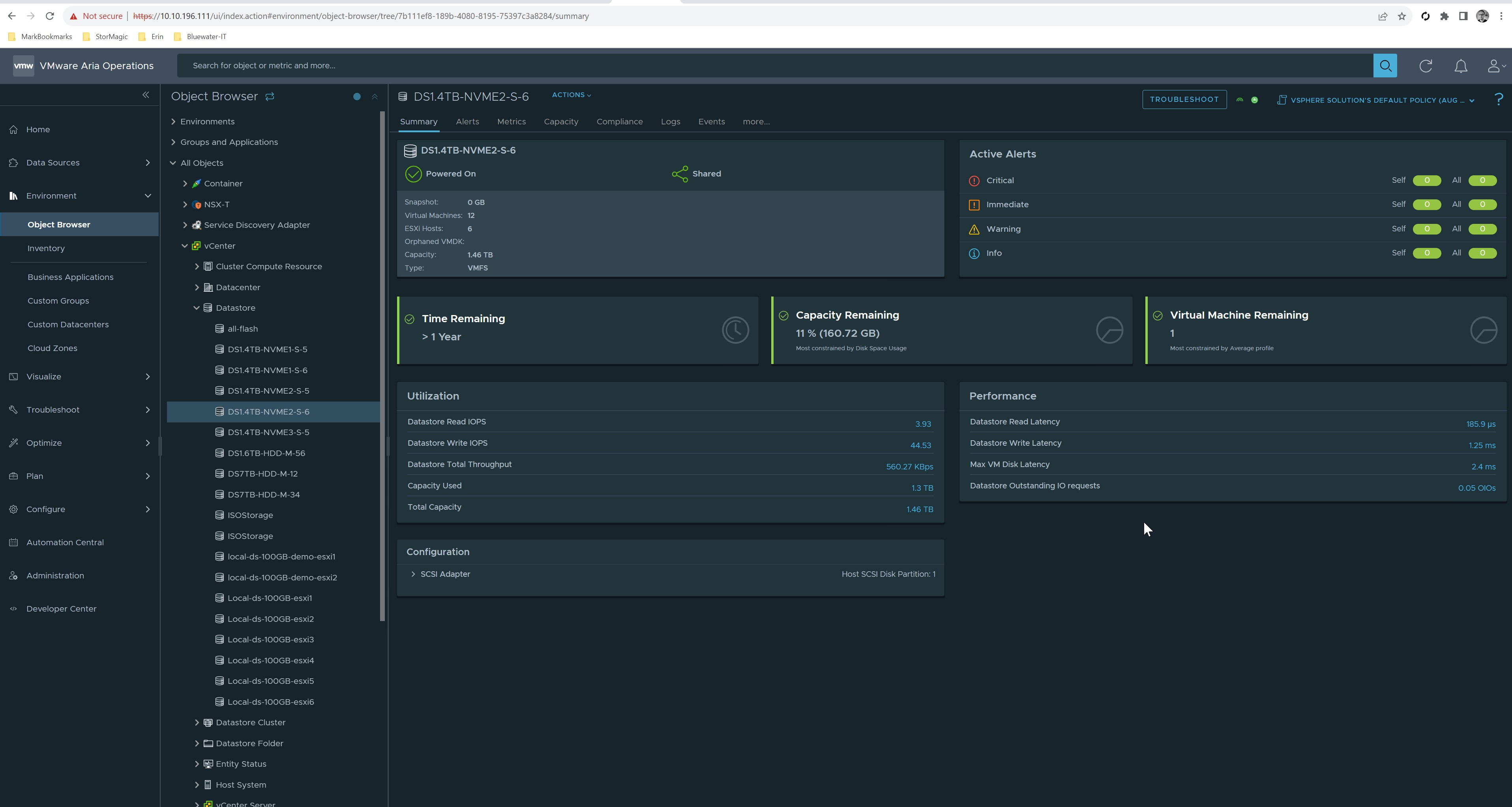

Performance and information from datastore - DS1.4TB-NVME2-S-6.
