SvHCI 2.1.x and VMware VM Import

This article is intended for administrators wishing to utilize SvHCI 2.1.0 to import VMware Virtual Machines across into SvHCI

Note:  All images are clickable for enlarging, or can be opened in a new tab

Resolution/Information

Note:  StorMagic VM import is a cold import. e.g. the Guest virtual machine will need to be powered off

Table of Contents

1. Summary
2. Windows VM import
3. Trigger box Configuration and setup
4. Command Parameters
5. Help Syntax
6. Example Command
7. Example Iterative VM Import
8. Example Copy Speed

Summary

The StorMagic SvHCI VM import utility essentially consists of an engine within the SvHCI node that is triggered to import a VMware virtual machine from a client device via a python script.

The intent of this model is the ability to potentially trigger VM imports via a centralized automated script, with the VM import running within a remote LAN network.

The SvHCI node may be triggered to import talking to vCenter or direct to an ESXi host over any vmkernel adapter, e.g. even able to chat direct to ESXi over a faster network link, such as a direct attach cable between the nodes.

Note:  The import utility script is included in both SvHCI firmware image and ISO download packages alongside being attached to this KB

Windows VM import

To ensure Windows VMs import correctly please ensure they're booting from a VMware Paravirtual SCSI controller within VMware prior to import.

If they're still on LSI Logic SAS this can be modified via the below steps:

This example utilized a Guest VM Base system installed on - UEFI, LSI Logic SAS, E1000E (server 2016 template)

Base system installed - UEFI, LSI SAS, E1000E (server 2016 template)

Install VMware tools, if not already present, to install drivers (VMXNET3 and PVSCSI)

Shut down

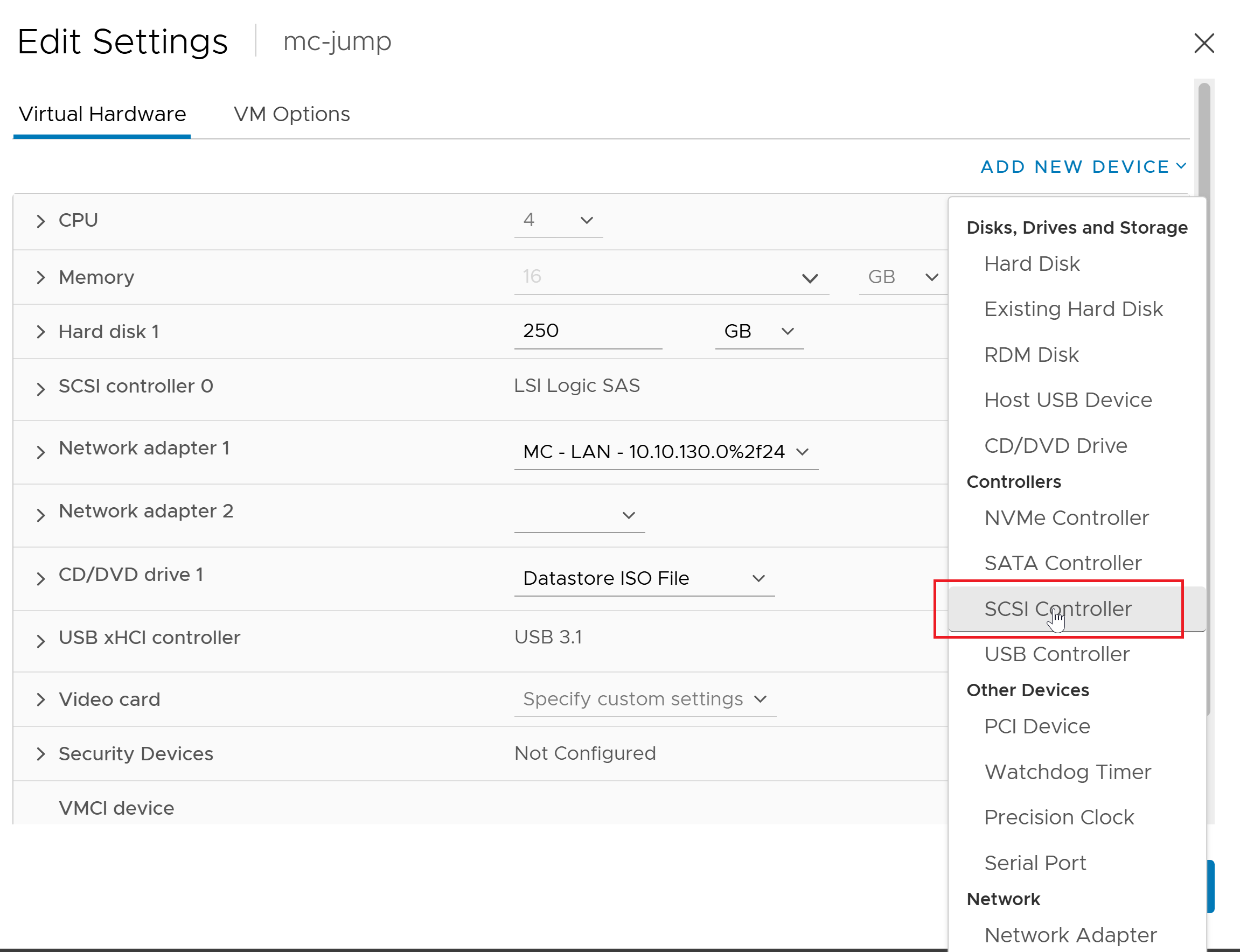

Add a new a new SCSI controller

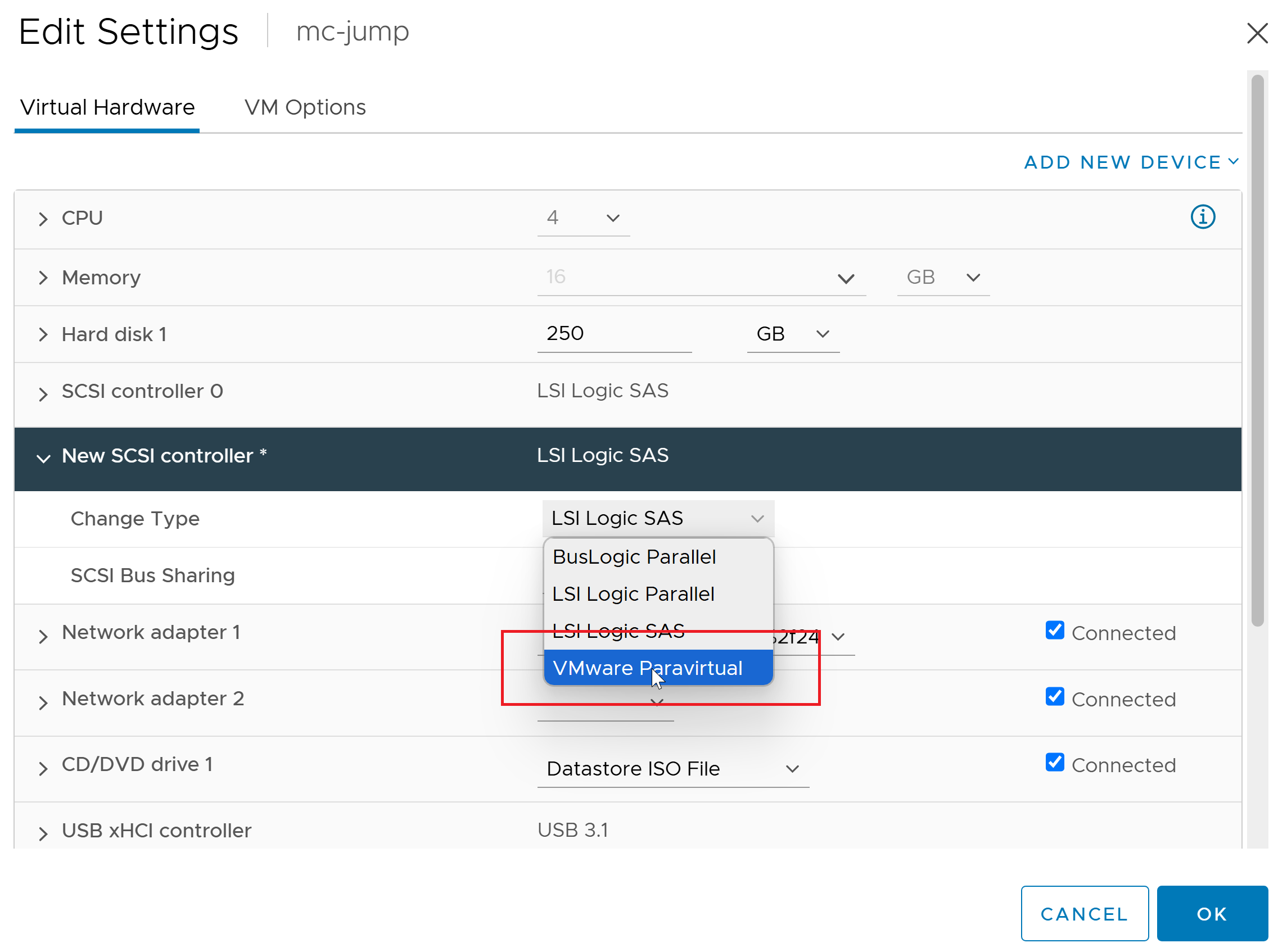

setting it to VMware Paravirtual (pvscsi), typically SCSI controller 1

Boot up - to ensure the drivers for the pvscsi controller are loaded into the Windows Operating System

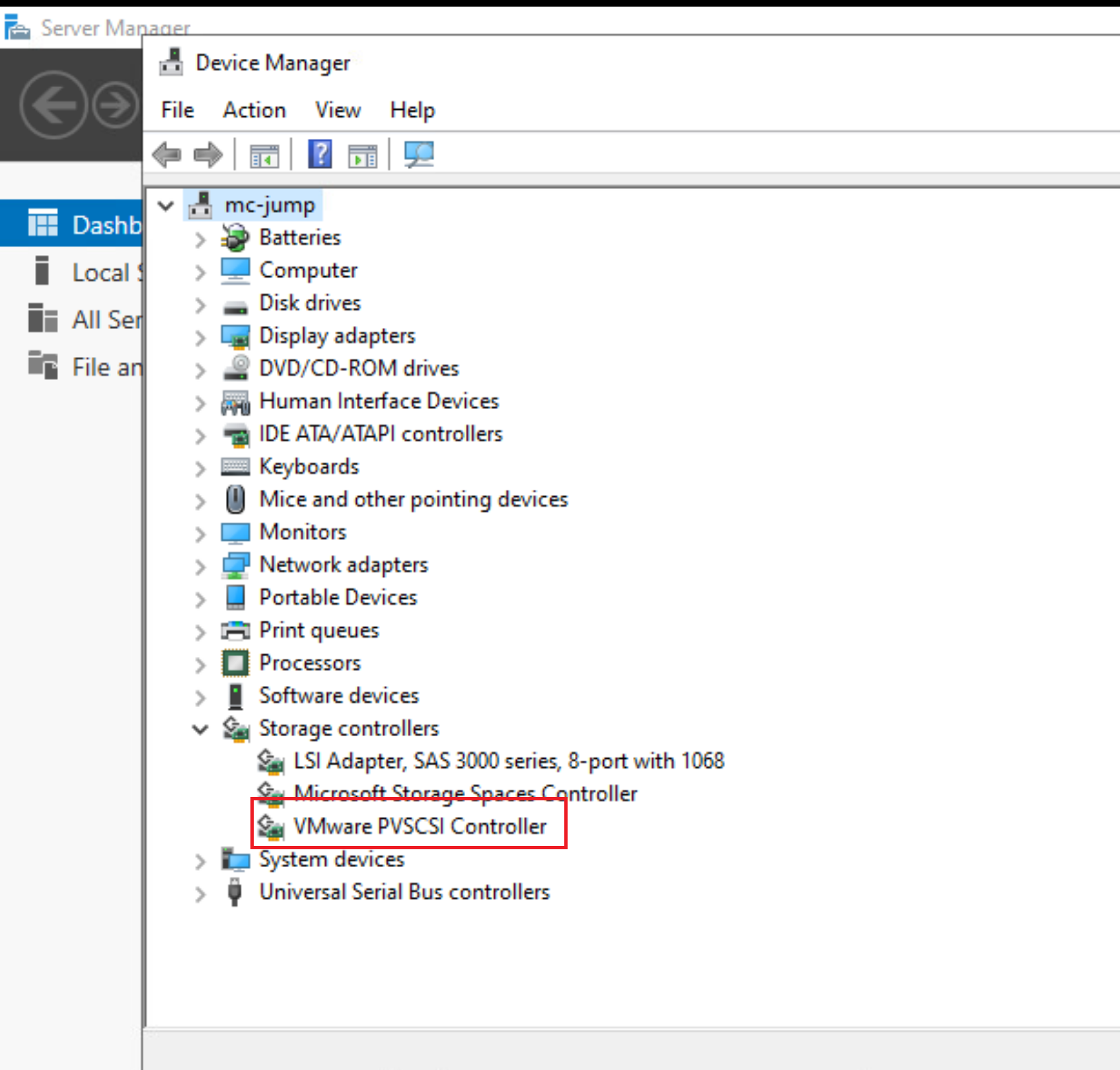

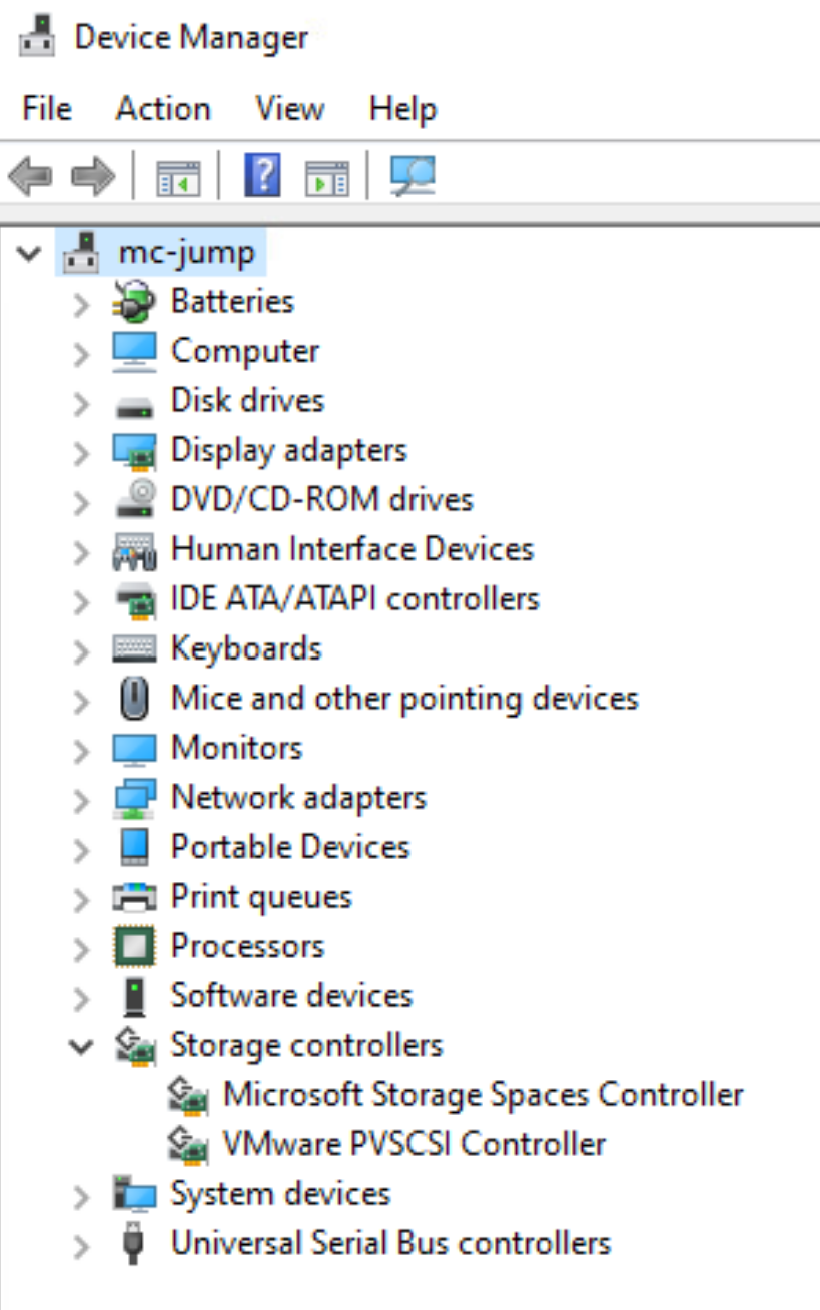

This controller will display in Device Manager

Power Down.

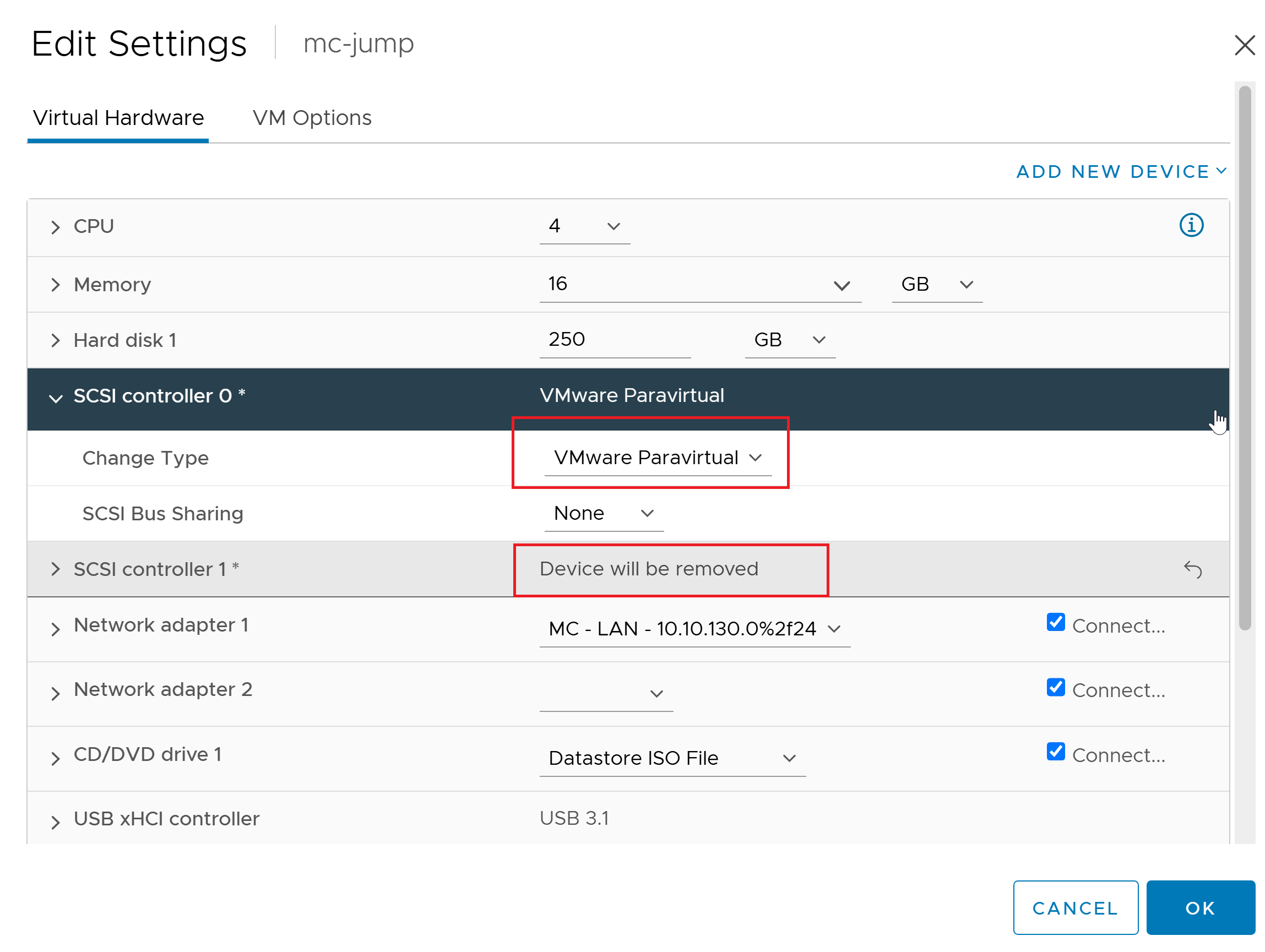

Transition SCSI controller 0 from LSI Logic SAS to VMware Paravirtual

Remove the SCSI controller 1

Boot up in VMware - should boot fine, reboot to verify.

Power down.

Export to OVF, or pull the VMDK via datastore browser, or import via StorMagic SvHCI 2.1.0 import utility.

Trigger box Configuration and setup

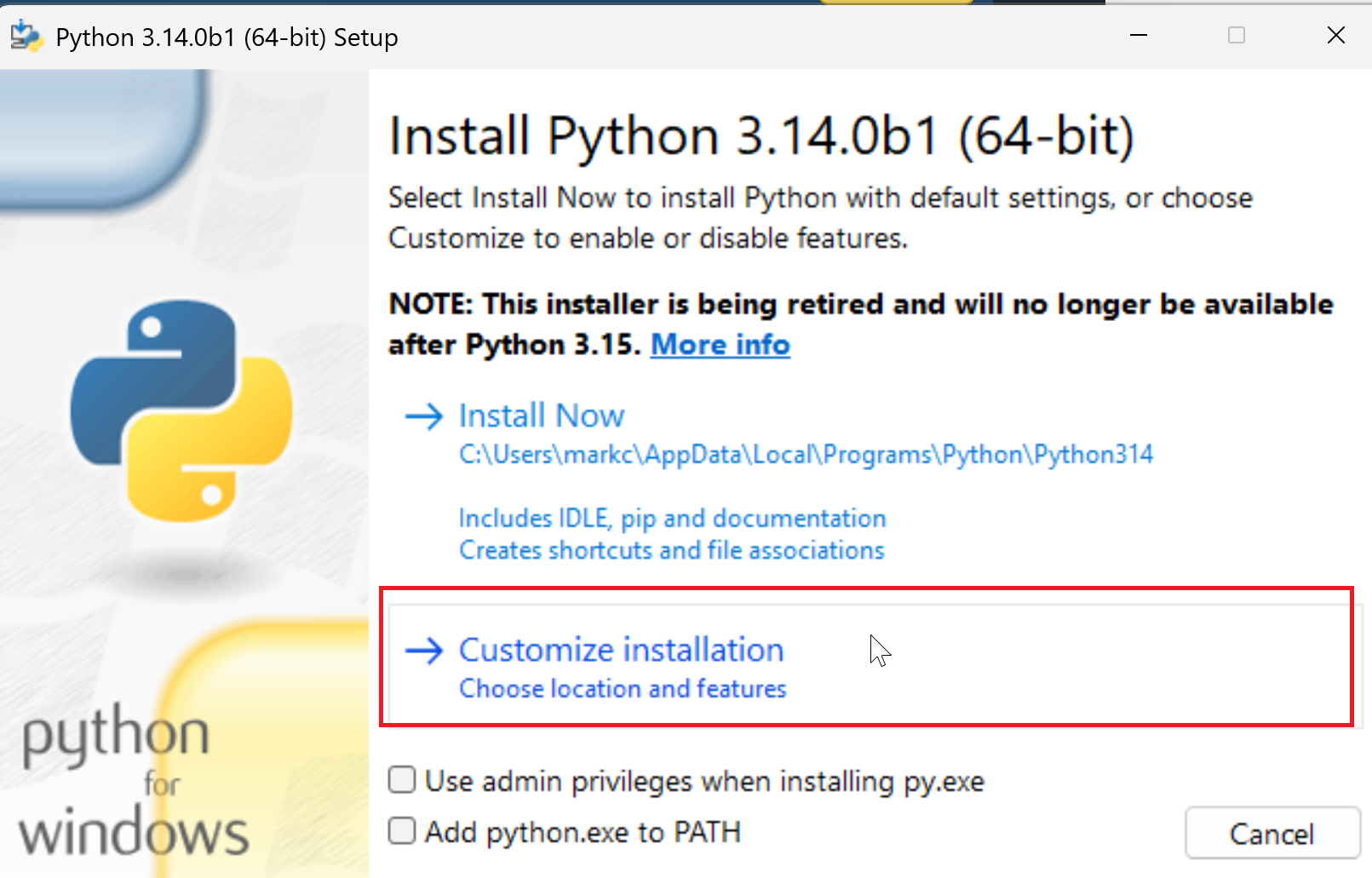

Download and install python to your operating system of choice.  The below demo's running on Windows.

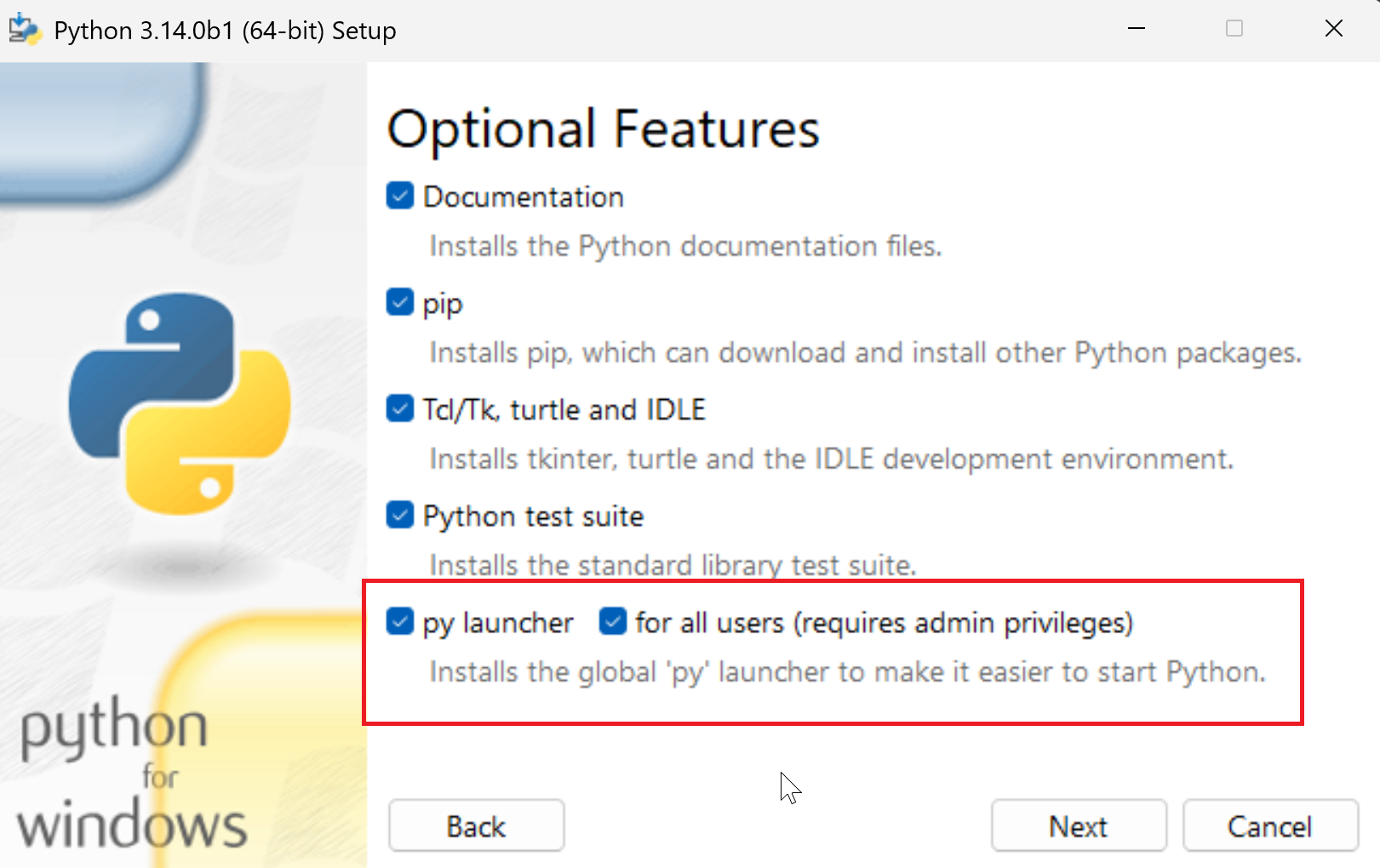

Ensure to select the highlighted py launcher

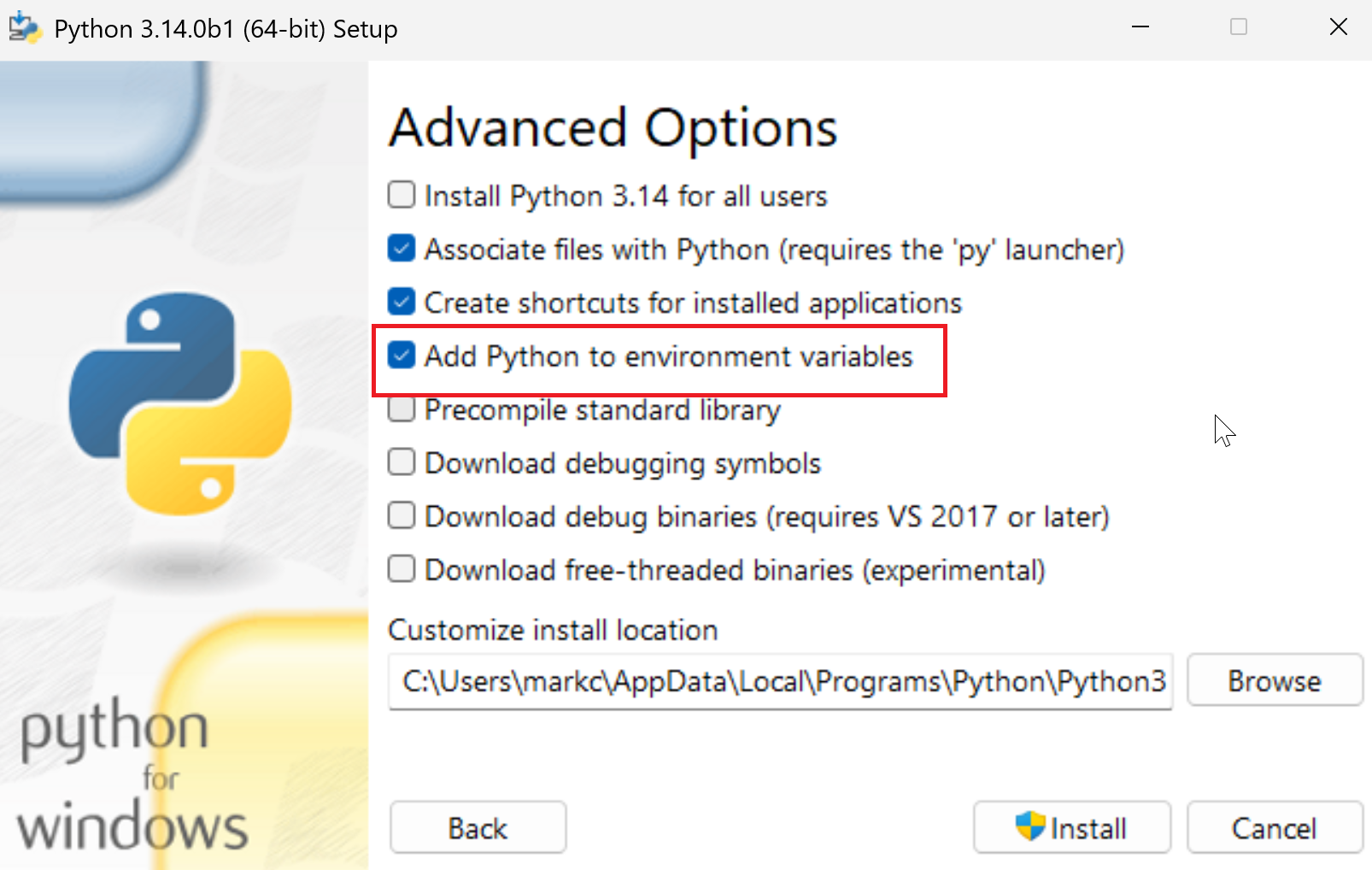

Ensure to add Python to the environment variables

Command Parameters

Help syntax

PS C:\Users\markc\Desktop\vm-import python .\vm_import.py -h
usage: vm_import.py [-h] [--defaults DEFAULTS] [--hostname HOSTNAME] [--password PASSWORD]
                    [--vsphere-hostname VSPHERE_HOSTNAME] [--vsphere-username VSPHERE_USERNAME]
                    [--vsphere-password VSPHERE_PASSWORD] [--vm-name VM_NAME] [--pool POOL]
                    [--remote-pool REMOTE_POOL]

Script to process VM import operation with vCenter / vSphere host.

options:
  -h, --help            show this help message and exit
  --defaults DEFAULTS   Path to defaults file (key=value per line)
  --hostname HOSTNAME   Hostname of the target system
  --password PASSWORD   Password for authentication
  --vsphere-hostname VSPHERE_HOSTNAME
                        vSphere server address
  --vsphere-username VSPHERE_USERNAME
                        Password for vSphere authentication
  --vsphere-password VSPHERE_PASSWORD
                        Password for vSphere authentication
  --vm-name VM_NAME     Name of the virtual machine
  --pool POOL           Name of the pool on the local system
  --remote-pool REMOTE_POOL
                        Name of the storage pool on the remote system (adds VM protection)
PS C:\Users\markc\Desktop\vm-import

Example command

Note in the below example the python client cannot route to the VMware node on vmkernel port 192.168.1.2.  However the SvHCI node can, over a back end network.

PS C:\> python C:\Users\markc\Desktop\vm-import\vm_import.py --vsphere-hostname="192.168.1.2" --vsphere-username="root" --vsphere-password="St0rMag1c!" --hostname="10.10.130.3" --password="St0rMag1c!" --pool="pool" --vm-name="WindowsVM"

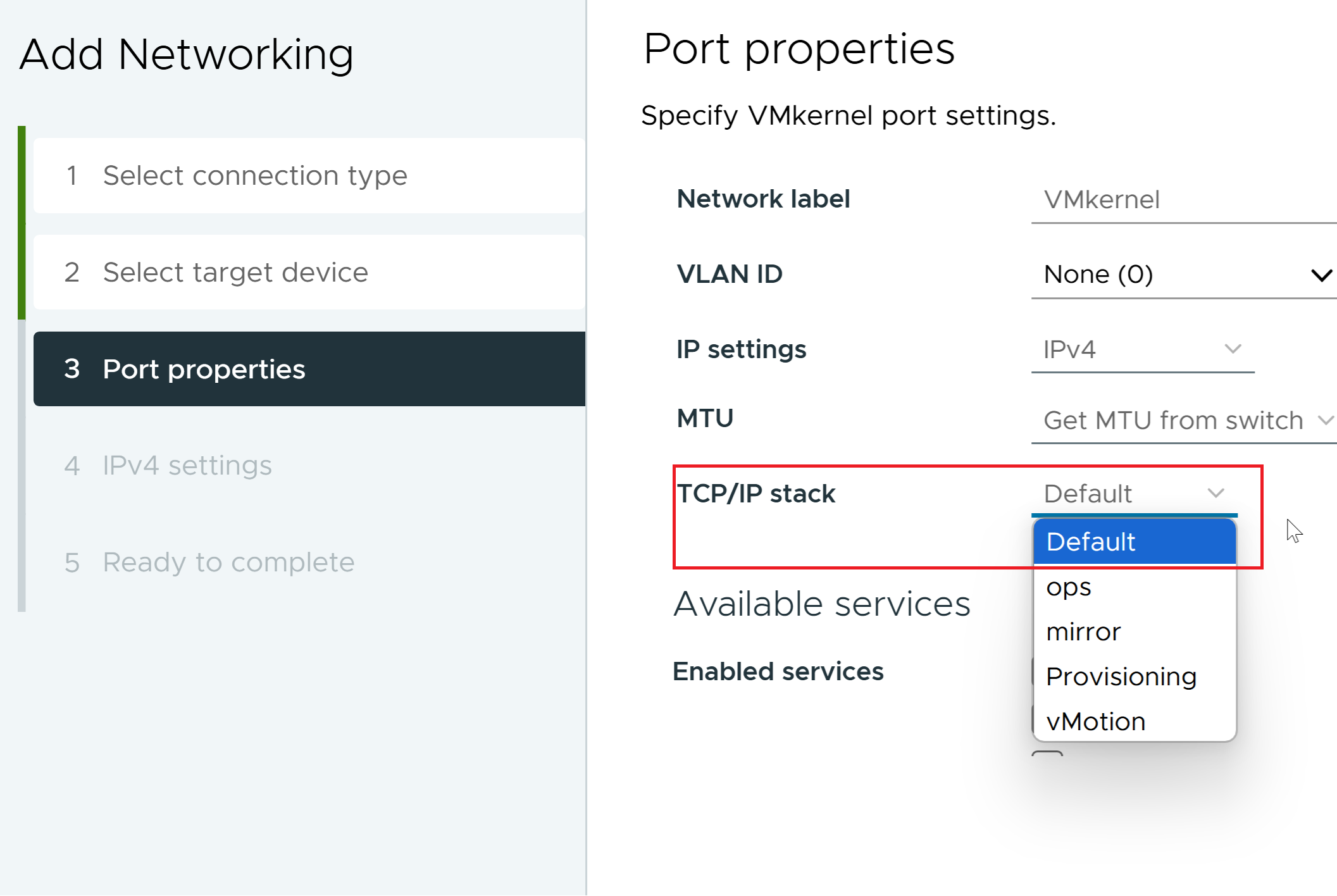

Note:  The vmkernel adapter needs to be configured Default TCP/IP Stack per the below

Example Iterative VM import

vm_list = ['GuestVM1', 'GuestVM2', 'GuestVM3', 'GuestVM4', 'GuestVM5']



for vm in vm_list

    python C:\Users\markc\Desktop\vm-import\vm_import.py --vsphere-hostname="192.168.1.2" --vsphere-username="root" --vsphere-password="St0rMag1c!" --hostname="10.10.130.3" --password="St0rMag1c!" --pool="pool" --vm-name=(vm)

Example Copy Speed

The copy speed will be impacted by many factors including network bandwidth, contention, storage read and write speed etc.

As an example we have observed a customer importing a 500GB VM (4x disks) over 10Gb networking in ~4hours 14minutes.

The system will run 10x imports concurrently. e.g. with a vm_list of 11 VMs, 10 will stream across, and GuestVM11 will start when 1x out of the 10 finishes.

Streaming multiple VMs across may also improve import speed
